The increasing importance of the zebrafish as a model for cancer development and drug screening has resulted in numerous publications3,4,7,13,14,16,18,19,20,21. However, the injection of cancer cells in zebrafish embryos is a technique that requires a high level of dexterity which can be challenging for researchers. In this protocol we aim at providing practical information and some tips that can help overcome the initial challenges of setting up zebrafish embryo xenografts.
Cell handling prior injection
This optimized protocol for the generation of zebrafish xenografts with cell lines can be adapted to various types of (cancer) cells with different morphologies. We recommend that all the cell lines used for zebrafish xenografts are mycoplasma free. Unlike other bacterial contaminations, the presence of mycoplasma in cell culture does not generate changes that can be easily detected under the microscope22. Mycoplasma contamination may affect the engraftment potential of the cell lines, their sensitivity to drugs, as well as the viability of the zebrafish embryos.
Although cells may continue to proliferate for an extended period, their phenotype and genotype can be prone to changes. It is important to become familiar with the morphology and behavior of the cell lines in culture. We recommend keeping the number of cell passages after thawing between 3-12 to get reproducible results. Thus, regular mycoplasma tests should be carried out.
Cells should be at their log phase (exponential growth phase before reaching confluence ~70%) on the day of the injection. This will enable an adequate engraftment and proper development of the distinctive hallmarks of the tumor. To prevent variation in the phenotype of cells within the xenograft, it is critical to maintain the confluence for injection constant between experiments. The number of injected cells can be adapted to the characteristics of each cell line as some may require higher densities of injection in order to thrive in the zebrafish embryos.
Cell labelling considerations
To better visualize human tumor cells for injection and future analysis, tumor cells can be labelled with fluorescent dyes. Due to differences in cellular size, the total number of cells/cm2 in adherent cultures varies among cell lines. This will impact the efficacy of the staining protocol as well as the number of cells harvested for injection. Large cells that yield low numbers per flask (i.e., Hs578T) or grow in clusters (i.e., BFTC905) will require the pooling of several flasks for a single experiment. In this case, the staining of cells shouldn&#39;t be performed directly in the flask as this will cause the use of excessive amounts of dye (high cost). On the other hand, cells that are highly sensitive to excessive cycles of centrifugation as well as those that yield high numbers per flask (i.e., HCT116) can be stained directly in the flask and then detached with EDTA/cell scraper (For more information see Table 1).
Whenever possible, instead of using an enzymatic approach, use EDTA to detach the cells on the day of injection, so that cells recover their cell-cell junctions more rapidly and are subjected to less centrifugation steps. Nevertheless, if the cells are sensitive to EDTA, very adherent or grow in clusters - an enzymatic method can be applied. The optimization of the ideal concentration for injection as well as the injection medium is dependent on the characteristics of each cell line, thus it might need some adjustments (Table 1).
Microinjection calibration

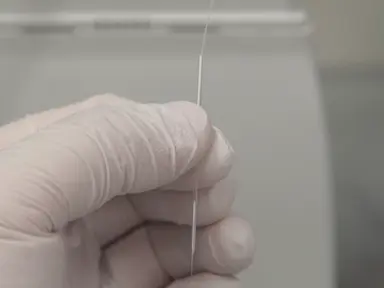

Contrary to the delivery of oligonucleotides or drugs into the zebrafish embryo, a graticule is not used to calibrate the needle when working with cell lines for xenografts. After some time during injection, cells will start to clog, and it is necessary to cut the tip of the needle to increase its diameter or change the needle altogether. This procedure hinders the graticule calibration.
To address this issue, the number of cells dispensed is regulated by eject pressure and time needed to reach a size similar to the embryo eye within 1-3 pulses. Then, to further control the tumor size, at 1 dpi, xenografts are sorted according to the tumor size as shown in Figure 6 B-B&#34;. As represented in Figure 6C example, this method of sorting is efficient in reducing the variation of tumor sizes: if we pool them all together (+, ++, +++) the STEV is ~double of the ++class (~906 cells to ~422 cells) and the coefficient variation is ~31.9% compared to 14,5% in the ++class. Since the reference for injection is volume, the total number of cells varies a lot between cell types - being dependent on the size and shape of the cells. For example, big cells with a lot of cytoplasm like breast cancer Hs578T, produce much smaller tumors (~600 cells). Also, each cell line requires different number of cells. For instance, the HT29 CRC and RT112 urinary bladder cancer cell lines have shown that the higher the number of cells injected, the higher the zebrafish mortality. Therefore, a period of optimization while developing the xenografts is needed to test if the cell line has toxic effects in the embryo or requires higher/lower densities of injection.
Injection site
One of the most common discrepancies when generating zebrafish embryo xenografts is the site of injection. The yolk is usually the place of choice for injection due to its easy accessibility. However, we have observed that cells injected in the yolk have a higher tendency to die. Although technically more difficult, we recommend injecting in the PVS and as far as possible from the heart. Within the PVS, cells can aggregate, recruit vessels and immune cells, and migrate, intravasate, extravasate and form micrometastasis, if they display metastatic characteristics8,11.
Engraftment efficiency
Differences in the engraftment efficiency and tumor size among cell lines at 4 dpi are expected due to their distinct degrees of basal cell death/survival/proliferation but also due to the innate immunogenicity that each cell line may display9.
Metastasis
Metastasis comprises a multistep cascade of events that can be divided into two arbitrary stages. In the first stage, tumor cells have to detach from the primary site, migrate and invade adjacent tissues and then intravasate into the bloodstream. In the second stage, tumor cells must survive in circulation, extravasate from the blood or lymphatic vessels, and finally colonize at secondary sites23. To distinguish between these early and late events and address the potential/proficiency of the different tumor cells to perform these steps, we designed a simple assay.
In general, when injected into the PVS, tumor cells can enter directly into circulation and then get physically trapped in the caudal hematopoietic tissue (CHT) (tail region). However, according to the characteristics of each tumor cell - we have seen that some tumor cells remain at the CHT 4 dpi and are able to form micrometastasis while other tumor cells disappear (cleared after getting caught in the CHT).
Therefore, by comparing the micrometastasis efficiency (at 4 dpi) when cells were placed directly into circulation - CIRC (cells only have to go through the late steps of metastasis) vs. when not - NO CIRC (cells need to go through early and late steps to be able to form a micrometastasis) we can assess their early or late metastatic potential. We have observed tumor cells that can efficiently form micrometastasis in the CHT in both groups (CIRC and NO CIRC), suggesting that these cells have the capacity to undergo all steps of the metastatic cascade (SW480 and MDA-MB-468 for example)8,11. In contrast, other tumor cells have a very low metastatic potential in both groups, hardly ever making micrometastasis, even when injected into circulation (i.e., visible in the CHT at 24 hpi, but at 4 dpi they are no longer there, Hs578T for example)8. However, we have clearly found another group - one that is only able to form micrometastasis when injected into circulation (we can only observe micrometastasis in the CIRC group). This suggests that these cells have a low efficiency in performing the first steps of the metastatic cascade but on the other hand are able to survive in circulation, extravasate and colonize a distant site.
Immunostaining and imaging
Before fixation, this injection protocol can be used for other live imaging approaches like live differential interference contrast (DIC) microscopy, spinning disk microscopy, high-resolution live confocal imaging and light sheet microscopy, etc.
Dead cells and cellular debris appear bright when observed through the fluorescent stereomicroscope and can be mistaken for live cells, especially if the aim of the study is assessing the metastatic potential of the cell lines. We would like to stress the importance of performing confocal imaging with specific viability markers and DAPI to assess the survival state of the tumor and micrometastasis. Also, it is fundamental to use specific human antibodies to detect human cells such as anti-human mitochondria or anti-human HLA. When implementing the protocol, train experimenter eyes by comparing the staining in the stereomicroscope with the confocal images. After some time, experimenters can clearly distinguish debris from live cells in the fluorescent stereomicroscope.
Although other methods to quantify tumor burden such as whole fluorescence area are widely used, we recommend performing whole mount immunostaining and confocal imaging as a more accurate method. Not only the efficiency of lipophilic dye staining is very variable (i.e., some cells are very well stained whereas others are not -probably due to the lipid content of their membranes), but also many times lipophilic dyes form aggregates, and dead cells tend to be brighter - creating several artifacts that can be mistaken for live cells.
Cells can be transduced with fluorescent proteins to aid in their tracking and to skip cell labelling. However, make sure that the transduced and non-transduced cells produce the same results in the zebrafish xenografts.
In addition, macrophages can phagocyte these fluorescent cell debris becoming fluorescently labelled and migrate, generating false positive metastatic cells. Thus, we recommend a series of analytic tools, which of course can be extended to many other readouts for a more accurate interpretation of tumor behavior:
<ul style="list-style-type: square;">
	<li>Proliferation - quantification of mitotic figures with DAPI or anti-pHH3Ser10 antibody (Merck Millipore Cat. #06-570),</li>
	<li>Cell death by apoptosis- antibody anti-activated Caspase3Asp175 (Cell Signalling Technologies Cat. #9661) or equivalent,</li>
	<li>Tumor size - DAPI counting- human tumor cells show a very distinct chromatin organization, so they are easily distinguished from the zebrafish cells and is always possible to double check with the dye (when you are training your eye),</li>
	<li>For metastatic studies, to unambiguously detect human cells, - anti-human HLA (Abcam EP1395Y Cat. #ab52922), anti-human mitochondria (Merck Millipore Cat. #MAB1273- Clone 113-1).</li>
</ul>
For a confocal acquisition with 5 &#181;m interval between slices in the Z-stack of the control cancer cells HCT116 (average nuclear size of 10-12 &#181;m of diameter) with DAPI counterstaining, we have observed that ~50% of the cells are shared between two consecutive slices. Therefore, if every slice is counted, there is a high risk of counting the same cells twice. Going back and forth between slices to avoid problems in quantification results in a time consuming and error prone technique. To ease the quantification of the total number of cells and allow for more reproducibility between researchers, we created the tumor size formula previously described in this protocol8.
We included a correction number (1.5) to account for the ~50% cells shared between slices. We found that the average error of manual counting of the whole tumor between researchers was 20%. Two researchers using the formula had a 2% error. The use of this formula has a 93% accuracy rate and 98% reproducibility rate. We also tested automated methods, but they demonstrated an error higher than 50% caused by threshold settings.
Due to the characteristics of apoptotic cells, the quantification of activated Caspase 3 cells is more difficult. To reduce the number of mistakes and variation in results, we recommend that the control and experimental samples are counted by the same researcher. Additionally, when learning this technique, a new researcher must count images that were already quantified by more experienced researchers to compare results and train.
The length of the assay can be extended if required. However, it is important to consider that zebrafish larvae require live feeding starting from ~7 days post-fertilization (5 days post-injection). Additionally, the animal welfare guidelines and regulations applied to larvae older than 6 days post-fertilization may vary.
This protocol provides useful tools to enable a single researcher to inject approximately ~200-300 zebrafish larvae per hour; and results for the complete assay, including analysis and statistical interpretation, obtained in three weeks. We hope that this protocol can help researchers become experts in generating zebrafish xenografts. It is not easy; you need to practice but you will get there. Good Luck!

Zebrafish (Danio rerio) is emerging as a powerful vertebrate model organism to study development and disease. Zebrafish shares highly conserved genetic (~70% genetic homology and ~84% disease-related genes) and basic organ morphological features with humans1,2. This conservation allows the use of zebrafish to model several human diseases, including cancer3,4.
The handling and maintenance of zebrafish is much easier and more cost effective than mice due to their small size, high fecundity all year round and external fertilization3,5. Zebrafish embryos do not require live feeding during their first 5-7 days of life and have been used as an effective model for development, infection, and cancer1,4,6,7. Zebrafish embryos hatch at 48 hours post-fertilization (hpf) and are free-swimming animals with all organs formed, a beating heart and functional circulatory system, liver, brain, kidney marrow, etc.1,3. Also, at this stage of development only innate immunity is at play, adaptive immunity is still developing, allowing a general efficient engraftment of human cells with no need for use of immunocompromised mutants7,8. Nevertheless, it is important to note that not all human cells engraft equally9 and that, for instance, for leukemia cells it was shown that phagocytes (neutrophils and macrophages) need to be depleted for efficient engraftment10.
The zebrafish genetic tractability and the optical transparency of its early embryonic stages allow for single cell intravital imaging at a high resolution and thus, for the establishment of state-of-the art imaging techniques in diverse fields of biology. Furthermore, in the context of cancer, these features are useful for real-time studies of the earliest stages of host-tumor interactions, like studying angiogenic and metastatic potential, as well as interactions with the innate immune system8,9,11,12,13.
Although in the short xenograft assay there is no time for metastatic &#34;evolution&#34;- it is possible to analyze the metastatic capacity of the tumor cells (i.e., their efficiency to go through metastatic steps like invasion, intravasation, survival in circulation, extravasation, and colonization, and therefore study these processes in vivo and in real-time8,11,13,14).
The characteristics of its life cycle place the zebrafish as a unique model for personalized medicine in cancer. Assays can be performed in a shorter time span and results obtained in a few weeks7,8,9,11,12,15,16. The celerity and feasibility of these assays provide doctors and researchers the possibility of obtaining translational results that can be useful for cancer patients, for whom time is an essential need.
Despite the increasing attempts at generating successful zebrafish embryo xenografts, there is still a need for the standardization of the injection procedure as well as the evaluation of cell viability and tumor behavior after injection.
In this protocol we provide researchers with a clear and detailed step-by-step guide for the injection of human cancer cell lines in zebrafish embryos and subsequent fixation, immunostaining, imaging, and quantification of tumor cell behavior.

<table><tbody><tr><td>Agar for bacteriology</td><td>VWR</td><td>97064-336</td><td>Agar plate</td></tr><tr><td>anti-Caspase3&lt;sup&gt;Asp175 &lt;/sup&gt;(Rabbit monoclonal)</td><td>Cell Signalling Technologies</td><td>9661</td><td>Primary antibody for whole mount immuno staining (Dilution 1:100)</td></tr><tr><td>anti-human HLA (Rabbit monoclonal)</td><td>Abcam EP1395Y</td><td>ab52922</td><td>Primary antibody for whole mount immuno staining (Dilution 1:100)</td></tr><tr><td>anti- 488 (Rabbit monoclonal)</td><td>ThermoFisher Scientific</td><td>35552</td><td>Secondary antibody for whole mount immuno staining (Dilution 1:200)</td></tr><tr><td>anti- 594 (Rabbit monoclonal)</td><td>ThermoFisher Scientific</td><td>35560</td><td>Secondary antibody for whole mount immuno staining (Dilution 1:200)</td></tr><tr><td>CellTracker Deep Red Dye</td><td>ThermoFisher Scientific</td><td>C34565</td><td>Lipophilic dye (Dilution 1:1000)</td></tr><tr><td>CellTracker Green CMFDA Dye</td><td>ThermoFisher Scientific</td><td>C2925</td><td>Lipophilic dye (Dilution 1:1000)</td></tr><tr><td>Conical Centrifuge tube 50mL</td><td>VWR</td><td>525-0610</td><td></td></tr><tr><td>Conical Centrifuge tube 15mL</td><td>VWR</td><td>525-0604</td><td></td></tr><tr><td>DAPI</td><td></td><td></td><td>Nuclear and chromosome counterstain</td></tr><tr><td>Laser-Based Micropipette Puller P-2000</td><td>Sutter-Instrument</td><td></td><td>Micropipette Puller</td></tr><tr><td>Microcentrifuge tube 1.5mL</td><td>Abdos</td><td>P10202</td><td></td></tr><tr><td>Microscope slides, cut edge</td><td>RS France</td><td>BPB016</td><td>Slides for mounting</td></tr><tr><td>Mowiol</td><td>Sigma-Aldrich</td><td>81381</td><td>Mounting medium</td></tr><tr><td>Pneumatic Picopump</td><td>World Precision Instruments</td><td>PV820</td><td>Microinjector</td></tr><tr><td>Rectangular cover glasses, Menzel Gl&amp;auml;ser</td><td>ThermoFisher Scientific</td><td>631-9430</td><td>Coverslips for mounting</td></tr><tr><td>SeaKem LE Agarose</td><td>Lonza</td><td>50004</td><td>Agar plate</td></tr><tr><td>Thin Wall Glass Capillaries</td><td>World Precision Instruments</td><td>TW100-4</td><td>Borosilicate capillaries</td></tr><tr><td>TrypLE</td><td>Gibco</td><td>12605036</td><td>Enzymatic detachment solution</td></tr><tr><td>Vaseline</td><td></td><td></td><td>Petroleum jelly for slide sealing</td></tr><tr><td>Vybrant CM-DiI Dye</td><td>ThermoFisher Scientific</td><td>V22888</td><td>Lipophilic dye (Dilution 1:1000)</td></tr><tr><td>Vybrant DiO Cell-Labeling Solution</td><td>ThermoFisher Scientific</td><td>V22886</td><td>Lipophilic dye (Dilution 1:1000)</td></tr><tr><td>ZEISS Axio Zoom.V16 for Biology</td><td>ZEISS</td><td></td><td>&amp;nbsp;Fluorescence Stereo Zoom Microscope</td></tr><tr><td>Zeiss LSM 710</td><td>ZEISS</td><td></td><td>Confocal microscope</td></tr></tbody></table>

generation of zebrafish larval xenografts and tumor behavior analysis

Zebrafish larval xenografts are being widely used for cancer research to perform in vivo and real-time studies of human cancer. The possibility of rapidly visualizing the response to anti-cancer therapies (chemo, radiotherapy, and biologicals), angiogenesis and metastasis with single cell resolution, places the zebrafish xenograft model as a top choice to develop preclinical studies.

The zebrafish larval xenograft assay presents several experimental advantages compared to other models, but probably the most striking is the reduction of size scale and consequently time. This reduction of scale allows single cell imaging, the use of a relatively low number of human cells (compatible with biopsies), medium-high-throughput drug screenings, but most importantly enables a significant reduction of the time of the assay. All these advantages make the zebrafish xenograft assay extremely attractive for future personalized medicine applications.

Many zebrafish xenograft protocols have been developed with a wide diversity of human tumors; however, a general and standardized protocol to efficiently generate zebrafish larval xenografts is still lacking. Here we provide a step-by-step protocol, with tips to generate xenografts and guidelines for tumor behavior analysis, whole-mount immunofluorescence, and confocal imaging quantification.

Watch this Scientific Journal Video about Generation of Zebrafish Larval Xenografts and Tumor Behavior Analysis at JoVE.com

Generation of Zebrafish Larval Xenografts and Tumor Behavior Analysis

Here, we provide a step-by-step protocol, with tips to generate xenografts and guidelines for tumor behavior analysis, whole-mount immunofluorescence, and confocal imaging quantification.

Zebrafish larval xenografts are being widely used for cancer research to perform in vivo and real-time studies of human cancer. The possibility of rapidly ...
