The work was funded by the University of Zurich. The authors would like to thank Estrela Neto and Dr. Meriem Lamghari for helping in establishing the co-culture conditions.

All mice were maintained and handled according to the Swiss Animal Welfare Law and in compliance with the regulations of the Cantonal Veterinary office, Zurich.
1. Preparation of Dissection Material, Culture Media, Microfluidic Devices
<ol>
	<li>Autoclave micro-dissection forceps and scissors (121 &#176;C, sterilization time: 20 min) and store them in a sterile container.</li>
	<li>Sterilize glass coverslips (24 mm x 24 mm) by incubating them in 1 M HCl for 24 hr on an orbital shaker at 37 &#176;C. Wash them three times with sterile, distilled H2O and three times with ethanol 99%. Dry then the coverslips at 37 &#176;C or under sterile flow hood. Finally, autoclave or expose the coverslips to UV light (30 min) to complete the sterilization. Coverslips can then be stored in ethanol 70%.</li>
	<li>Remove carefully the AXIS Axon Isolation Devices from the package using sterile forceps and place them in a sterile Petri dish.</li>
	<li>Using a sterile biopsy punch (&#248;: 1mm) create one hole per sample to be cultured (Figure 1) in correspondence of the culture chambers.
	NOTE: Do not punch too close to the microgrooves, as they might be damaged by the pressure applied.</li>
	<li>Sterilize the AXIS Axon Isolation Devices by immerging them in ethanol 70%. Dry then AXIS Axon Isolation Devices and coverslips completely under a sterile flow hood. Wait a minimum of 3 hr before proceeding.
	NOTE: incomplete drying will result in defective assembly of the microfluidic devices.</li>
	<li>Place each coverslip into a 35 mm Petri dish or into a well within a 6-wells plate.</li>
	<li>Place the AXIS Axon Isolation Device onto the coverslip and press gently but firmly with a forceps with bent ends in order to allow full adhesion between the isolation device and the glass coverslip.</li>
	<li>In each culture chamber, pipette 150 &#181;l of poly-D-lysine (0.1 mg/ml in sterile, distilled H2O). Place the microfluidic devices under vacuum for 5 min, in order to remove all the air from the culture chambers.</li>
	<li>If air can still be seen within the chambers, re-pipette the poly-D-lysine solution into the chambers.</li>
	<li>Incubate the devices with poly-D-lysine O/N&#160;at 37 &#176;C.</li>
	<li>Wash chambers three time with sterile, distilled H2O.</li>
	<li>Fill chambers with 150 &#181;l laminin working solution (Sigma-Aldrich, 5 &#181;g/ml, in PBS or serum-free medium), and incubate O/N at 37 &#176;C.</li>
	<li>Prepare 50 ml of medium for trigeminal ganglia cultures 37 , composed as follows: 48 ml Neurobasal medium, 1 ml B-27, 100 U/ml penicillin/streptomycin, 2 mM L-glutamine, 5 ng/ml nerve growth factor (NGF), 0.25 pM cytosine arabinoside.</li>
	<li>Prepare 50 ml of medium for tooth germ cultures 37, composed as follows: 40 ml DMEM-F12, 10 ml foetal bovine serum (FBS, final concentration: 20%), 100 U/ml penicillin/streptomycin, 2 mM L-glutamine, 150 &#181;g/ml ascorbic acid.</li>
</ol>
2. Mouse Embryo Generation and Dissection
<ol>
	<li>Determine embryonic age according to vaginal plug (vaginal plug: embryonic day of development 0.5, E0.5) and confirm it via morphological criteria. For this protocol, we generally use E14.5-E17.5 mouse embryos.</li>
	<li>Clean the dissection area and the stereoscope with ethanol 70%.</li>
	<li>Sacrifice the pregnant mother via cervical dislocation. Block the neck of the mouse with the first and second finger onto a grid, and pull with decision the tail.</li>
	<li>Dissect the skin around the lower abdomen, and open the abdomen using scissors. Locate the uterus: during such late stages of pregnancy, the uterus abundantly fill the abdominal cavity.</li>
	<li>Dissect out the uterus and place in a tube filled with PBS on ice. When on ice, the tissue can be left for several hr. Discard the corpse of the mother according to institutional guidelines</li>
	<li>Dissect out the embryos from the uterus and free them from their extraembryonic tissues. Place the embryos in PBS on ice.</li>
	<li>Decapitate the embryos using scissors, and separate the lower jaw from the rest of the head using micro-dissection scissors (Figure 2A). Remove precisely the lower jaw, without damaging the trigeminal ganglia; as the latter are localized in close proximity to the lower jaw, their accidental damage is possible. Preserve the lower jaw and the rest of the head in cold PBS, on ice.</li>
	<li>To dissect TG, take the head and place it onto a dissection glass Petri dish, previously filled with cold PBS. Using the forceps, remove the skin and the skull. Remove then the telencephalon and the cerebellum by placing forceps below the telencephalon and lift; the telencephalon and the cerebellum will flip together, leaving the bottom of the skull exposed.</li>
	<li>Localize the trigeminal ganglia (shown in Figure 2B). Use the forceps to separate the TG from the trigeminal nerves. Eliminate the remnants of the trigeminal projections using the dissection needles as knifes. Place the dissected TG in a Petri dish filled with cold PBS and keep them on ice.</li>
	<li>To dissect embryonic teeth, place the lower jaw, previously separated from the skull, onto the dissection glass Petri dish, filled with cold PBS. Using dissection needles as knifes, remove the tongue and the skin surrounding the jaw. Separate the left and the right hemi-jaws by cutting along the midline of the jaw. The tooth germs are easily visible, as shown in Figure 1C. Isolate the tooth germs using dissection needles and remove the excess of non-dental tissues. Place the dissected tooth germs in a Petri dish filled with cold PBS and keep them on ice.</li>
</ol>
3. Microfluidic Co-cultures
<ol>
	<li>After dissection, remove laminin from the microfluidic devices. Fill the chambers with 200 &#181;l of the respective media.</li>
	<li>With forceps, transfer gently the dissected TG and tooth germs into the holes created by punching (Figure 1D). Make sure that the tooth germs do not float and that they sink until they contact the coverslips.</li>
	<li>Culture the samples in incubator at 37 &#176;C, 5% CO2.</li>
	<li>Change the culture medium every 48 hr. Do not empty the chambers completely, and do not pipette directly into the culture chambers. Complete emptying of chambers would result in the formation of air bubbles within the chambers; direct pipetting into the chamber would result in axonal damage. To avoid these issues, remove the medium pointing the pipette towards the external side of the wells; similarly, pipette the fresh medium on the side of the wells located opposite to the chambers.</li>
	<li>During the culture period, co-cultures can be easily imaged by time-lapse microscopy. Co-cultures can be maintained for over 10 days.</li>
	<li>After the culture period, wash the chambers by pipetting 150 &#181;l of PBS into one well per chamber, and letting PBS flow through the chambers three times.</li>
	<li>Remove the PBS and fix the samples by pipetting 150 &#181;l of paraformaldehyde 4% (in PBS) in one well per chamber; incubate at RT for 15 min.</li>
	<li>Wash the chambers twice with PBS as described in 3.6.</li>
	<li>Proceed with further analysis.</li>
</ol>

<ol>
	<li>Pagella, P., Jim&#233;nez-Rojo, L., Mitsiadis, T. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Roles+of+innervation+in+developing+and+regenerating+orofacial+tissues.">Roles of innervation in developing and regenerating orofacial tissues.</a> Cellular and molecular life sciences : CMLS. 71, 2241-2251 (2014).</li><li>Kumar, A., Brockes, J. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Nerve+dependence+in+tissue,+organ,+and+appendage+regeneration.">Nerve dependence in tissue, organ, and appendage regeneration.</a> Trends in neurosciences. 35 (11), 691-699 (2012).</li><li>Brownell, I., Guevara, E., Bai, C. B., Loomis, C. A., Joyner, A. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Nerve-derived+sonic+hedgehog+defines+a+niche+for+hair+follicle+stem+cells+capable+of+becoming+epidermal+stem+cells.">Nerve-derived sonic hedgehog defines a niche for hair follicle stem cells capable of becoming epidermal stem cells.</a> Cell stem cell. 8 (5), 552-565 (2011).</li><li>Katayama, Y., Battista, M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Signals+from+the+sympathetic+nervous+system+regulate+hematopoietic+stem+cell+egress+from+bone+marrow.">Signals from the sympathetic nervous system regulate hematopoietic stem cell egress from bone marrow.</a> Cell. 124 (2), 407-421 (2006).</li><li>Fitch, S. R., Kimber, G. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Signaling+from+the+sympathetic+nervous+system+regulates+hematopoietic+stem+cell+emergence+during+embryogenesis.">Signaling from the sympathetic nervous system regulates hematopoietic stem cell emergence during embryogenesis.</a> Cell stem cell. 11 (4), 554-566 (2012).</li><li>Knox, S. M., Lombaert, I. M. a., Reed, X., Vitale-Cross, L., Gutkind, J. S., Hoffman, M. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Parasympathetic+innervation+maintains+epithelial+progenitor+cells+during+salivary+organogenesis.">Parasympathetic innervation maintains epithelial progenitor cells during salivary organogenesis.</a> Science(New York, N.Y.). 329 (5999), 1645-1647 (2010).</li><li>Knox, S. M., Lombaert, I. M. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Parasympathetic+stimulation+improves+epithelial+organ+regeneration.">Parasympathetic stimulation improves epithelial organ regeneration.</a> Nature communications. 4, 1494 (2013).</li><li>Oakley, B., Witt, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Building+sensory+receptors+on+the+tongue.">Building sensory receptors on the tongue.</a> Journal of neurocytology. 33 (6), 631-646 (2004).</li><li>Oakley, B., Brandemihl, A., Cooper, D., Lau, D., Lawton, A., Zhang, C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+morphogenesis+of+mouse+vallate+gustatory+epithelium+and+taste+buds+requires+BDNF-dependent+taste+neurons.+Brain+research.">The morphogenesis of mouse vallate gustatory epithelium and taste buds requires BDNF-dependent taste neurons. Brain research.</a> Developmental brain research. 105 (1), 85-96 (1998).</li><li>Sun, H., Oakley, B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Development+of+anterior+gustatory+epithelia+in+the+palate+and+tongue+requires+epidermal+growth+factor+receptor.">Development of anterior gustatory epithelia in the palate and tongue requires epidermal growth factor receptor.</a> Developmental biology. 242 (1), 31-43 (2002).</li><li>Mistretta, C. M., Goosens, K. a., Farinas, I., Reichardt, L. F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Alterations+in+size,+number,+and+morphology+of+gustatory+papillae+and+taste+buds+in+BDNF+null+mutant+mice+demonstrate+neural+dependence+of+developing+taste+organs.">Alterations in size, number, and morphology of gustatory papillae and taste buds in BDNF null mutant mice demonstrate neural dependence of developing taste organs.</a> The Journal of comparative neurology. 409 (1), 13-24 (1999).</li><li>Mitsiadis, T. a., Graf, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Cell+fate+determination+during+tooth+development+and+regeneration.">Cell fate determination during tooth development and regeneration.</a> Birth defects research. Part C, Embryo today reviews. 87 (3), 199-211 (2009).</li><li>Mohamed, S. S., Atkinson, M. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+histological+study+of+the+innervation+of+developing+mouse+teeth.">A histological study of the innervation of developing mouse teeth.</a> Journal of anatomy. 136 (Pt 4), 735-749 (1983).</li><li>Luukko, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Immunohistochemical+localization+of+nerve+fibres+during+development+of+embryonic+rat+molar+using+peripherin+and+protein+gene+product+9.5+antibodies.">Immunohistochemical localization of nerve fibres during development of embryonic rat molar using peripherin and protein gene product 9.5 antibodies.</a> Archives of oral biology. 42 (3), 189-195 (1997).</li><li>Johnsen, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Innervation+of+teeth:+qualitative,+quantitative,+and+developmental+assessment.">Innervation of teeth: qualitative, quantitative, and developmental assessment.</a> Journal of dental research. 64, 555-563 (1985).</li><li>Mitsiadis, T. a., Dicou, E., Joffre, A., Magloire, H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Immunohistochemical+localization+of+nerve+growth+factor+(NGF)+and+NGF+receptor+(NGF-R)+in+the+developing+first+molar+tooth+of+the+rat.">Immunohistochemical localization of nerve growth factor (NGF) and NGF receptor (NGF-R) in the developing first molar tooth of the rat.</a> Differentiation; research in biological diversity. 49 (1), 47-61 (1992).</li><li>Mitsiadis, T. a., Luukko, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Neurotrophins+in+odontogenesis.">Neurotrophins in odontogenesis.</a> The International journal of developmental biology. 39 (1), 0214-6282 (1995).</li><li>Moe, K., Sijaona, A., Shrestha, A., Kettunen, P., Taniguchi, M., Luukko, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Semaphorin+3A+controls+timing+and+patterning+of+the+dental+pulp+innervation.">Semaphorin 3A controls timing and patterning of the dental pulp innervation.</a> Differentiation; research in biological diversity. 84 (5), 371-379 (2012).</li><li>Kettunen, P., L&#248;es, S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Coordination+of+trigeminal+axon+navigation+and+patterning+with+tooth+organ+formation:+epithelial-mesenchymal+interactions+and+epithelial+Wnt4+and+Tgfbeta1+regulate+semaphorin+3a+expression+in+the+dental+mesenchyme.">Coordination of trigeminal axon navigation and patterning with tooth organ formation: epithelial-mesenchymal interactions and epithelial Wnt4 and Tgfbeta1 regulate semaphorin 3a expression in the dental mesenchyme.</a> Development (Cambridge, England). 132 (2), 323-334 (2005).</li><li>Tuisku, F., Hildebrand, C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Evidence+for+a+neural+influence+on+tooth+germ+generation+in+a+polyphyodont+species.">Evidence for a neural influence on tooth germ generation in a polyphyodont species.</a> Developmental biology. 165, 1-9 (1994).</li><li>Zhao, H., Feng, J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Secretion+of+shh+by+a+neurovascular+bundle+niche+supports+mesenchymal+stem+cell+homeostasis+in+the+adult+mouse+incisor.">Secretion of shh by a neurovascular bundle niche supports mesenchymal stem cell homeostasis in the adult mouse incisor.</a> Cell stem cell. 14 (2), 160-173 (2014).</li><li>Kettunen, P., Kvinnsland, H., Luukko, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Mouse+rudimentary+diastema+tooth+primordia+are+devoid+of+peripheral+nerve+fibers.">Mouse rudimentary diastema tooth primordia are devoid of peripheral nerve fibers.</a> Anatomy and embryology. 205 (3), 187-191 (2002).</li><li>Lumsend, A., Buchanan, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=An+experimental+study+of+timing+and+topography+of+early+tooth+development+in+the+mouse+embryo.">An experimental study of timing and topography of early tooth development in the mouse embryo.</a> Archives of oral biology. , 301-311 (1986).</li><li>Kollar, E., Lumsend, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Tooth+morphogenesis:+the+role+of+the+innervation+during+induction+and+pattern+formation.">Tooth morphogenesis: the role of the innervation during induction and pattern formation.</a> Journal de Biologia Buccale. 7 (1), 49-60 (1979).</li><li>Luukko, K., Kettunen, P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Coordination+of+tooth+morphogenesis+and+neuronal+development+through+tissue+interactions:+lessons+from+mouse+models.">Coordination of tooth morphogenesis and neuronal development through tissue interactions: lessons from mouse models.</a> Experimental cell research. 325 (2), 72-77 (2014).</li><li>Lillesaar, C., Eriksson, C., Johansson, C. S., Fried, K., Hildebrand, C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Tooth+pulp+tissue+promotes+neurite+outgrowth+from+rat+trigeminal+ganglia+in+vitro.">Tooth pulp tissue promotes neurite outgrowth from rat trigeminal ganglia in vitro.</a> Journal of neurocytology. 28 (8), 663-670 (1999).</li><li>Lumsend, A., Davies, A. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Chemotropic+effect+of+specific+target+epithelium+in+the+developing+mammalian+nervous+system.">Chemotropic effect of specific target epithelium in the developing mammalian nervous system.</a> Nature. 323 (9), 538-539 (1986).</li><li>Lillesaar, C., Fried, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Neurites+from+trigeminal+ganglion+explants+grown+in+vitro+are+repelled+or+attracted+by+tooth-related+tissues+depending+on+developmental+stage.">Neurites from trigeminal ganglion explants grown in vitro are repelled or attracted by tooth-related tissues depending on developmental stage.</a> Neuroscience. 125 (1), 149-161 (2004).</li><li>Lillesaar, C., Eriksson, C., Fried, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Rat+tooth+pulp+cells+elicit+neurite+growth+from+trigeminal+neurones+and+express+mRNAs+for+neurotrophic+factors+in+vitro.">Rat tooth pulp cells elicit neurite growth from trigeminal neurones and express mRNAs for neurotrophic factors in vitro.</a> Neuroscience letters. 308 (3), 161-164 (2001).</li><li>Petrinovic, M. M., Duncan, C. S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Neuronal+Nogo-A+regulates+neurite+fasciculation,+branching+and+extension+in+the+developing+nervous+system.">Neuronal Nogo-A regulates neurite fasciculation, branching and extension in the developing nervous system.</a> Development(Cambridge, England). 137 (15), 2539-2550 (2010).</li><li>Otsu, K., Fujiwara, N., Harada, H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Odontogenesis.">Odontogenesis.</a> Methods in Molecular Biology. 887, (2012).</li><li>Mitsiadis, T. a., Drouin, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Deletion+of+the+Pitx1+genomic+locus+affects+mandibular+tooth+morphogenesis+and+expression+of+the+Barx1+and+Tbx1+genes.">Deletion of the Pitx1 genomic locus affects mandibular tooth morphogenesis and expression of the Barx1 and Tbx1 genes.</a> Developmental biology. 313 (2), 887-896 (2008).</li><li>Park, J. W., Vahidi, B., Taylor, A. M., Rhee, S. W., Jeon, N. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Microfluidic+culture+platform+for+neuroscience+research.">Microfluidic culture platform for neuroscience research.</a> Nature protocols. 1 (4), 2128-2136 (2006).</li><li>Hosmane, S., Tegenge, M. A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Toll/interleukin-1+receptor+domain-containing+adapter+inducing+interferon-&#946;+mediates+microglial+phagocytosis+of+degenerating+axons.">Toll/interleukin-1 receptor domain-containing adapter inducing interferon-&#946; mediates microglial phagocytosis of degenerating axons.</a> The Journal of neuroscience the official journal of the Society for Neuroscience. 32 (22), 7745-7757 (2012).</li><li>Delamarche, E., Tonna, N., Lovchik, R. D., Bianco, F., Matteoli, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Pharmacology+on+microfluidics:+multimodal+analysis+for+studying+celll-cell+interaction.">Pharmacology on microfluidics: multimodal analysis for studying celll-cell interaction.</a> Current opinion in pharmacology. 13 (5), 821-828 (2013).</li><li>Neto, E., Alves, C. J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sensory+neurons+and+osteoblasts:+close+partners+in+a+microfluidic+environment.">Sensory neurons and osteoblasts: close partners in a microfluidic environment.</a> Integrative Biology. , (2014).</li><li>Pagella, P., Neto, E., Jim&#233;nez-Rojo, L., Lamghari, M., Mitsiadis, T. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Microfluidics+co-culture+systems+for+studying+tooth+innervation.">Microfluidics co-culture systems for studying tooth innervation.</a> Frontiers in physiology. 5 (August), (2014).</li><li>Connor, R., Tessier-Lavigne, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Identification+of+maxillary+factor,+a+maxillary+process-derived+chemoattractant+for+developing+trigeminal+sensory+axons.">Identification of maxillary factor, a maxillary process-derived chemoattractant for developing trigeminal sensory axons.</a> Neuron. 24, 165-178 (1999).</li></ol>

The authors declare that they have no competing financial interests.

Previous in vitro studies of tooth innervation were based on conventional co-cultures of trigeminal ganglia and dental tissues or cells 26,28,29. These studies were conducted to investigate mainly the attractive effects of these cells or tissues on sensory axons 38. Although bringing significant advances in the field, several technical issues were raised. Tooth germs start to degenerate after few days of culture 37. Based on these observations, growing neurons and teeth in the same culture conditions impair any eventual analysis of molecules involved in the cross talk between these two tissues. Optimal culture conditions are needed to preserve the physiological molecular profile of trigeminal ganglia and dental tissues.
Microfluidics systems have been used so far to co-culture neurons and various cell types in optimized media 34,36. This microfluidics system can represent more faithfully the in vivo situation, where neural cell bodies, axonal terminals and target tissues are generally exposed to different cellular and molecular microenvironments. More recently, microfluidics devices have been used to co-culture whole dorsal root ganglia and osteoblasts 36. We recently demonstrated that trigeminal ganglia and teeth are able to survive for long periods of time when co-cultured in microfluidic devices 37. Moreover, we demonstrated that teeth from different developmental stages maintain in these in vitro conditions the same repulsive or attractive effects on trigeminal innervation that they exhibited in vivo 37.
The protocol described requires practice and manual dexterity, in particular for the microdissection of trigeminal ganglia and tooth germs. Trigeminal ganglia are easily torn during dissection. Therefore, we suggest the use of dissection needles instead of dissection forceps, in order to remove the tissue surrounding the ganglia. Similarly, particular care should be taken while dissecting tooth germs, in order to avoid damaging the tooth epithelium while separating it from the surrounding mesenchymal tissues. Furthermore, during the first day of co-culture, particular care should be taken in handling the incubator, as excessive vibration can impair trigeminal ganglion adhesion to the culture coverslip. During the co-culture period, media should be removed and added by pipetting into the wells, on the side opposite to the culture chambers. Aspiring or pipetting media in proximity of the culture chambers would result in axonal damage.
The protocol described can be modified to study the innervation of several embryonic organs and embryonic or postnatal tissues and cell types. Microfluidics systems could represent an appropriate platform to allow longer culture periods for the study of interactions between neurons and growing teeth. Moreover, separation of the neuronal from the dental compartment permits analysis of the effects of specific protein localization and quantification 33,37. Blocking antibodies or recombinant proteins could also be added to the separate compartments of the microfluidics devices for analysing their effects on neuronal and dental tissues. For example, treatment of trigeminal ganglia with NGF supports their survival and allows neuronal outgrowth. However, in this work exogenous NGF is absent from the tooth germ compartment, where tooth-derived signals are the only responsible for neuronal attraction or repulsion. Similarly, other recombinant molecules, antibodies or drugs can be used to manipulate the system in controlled conditions.
The major limitations of the protocol presented reside in the relative high cost of commercial microfluidic devices and the essentially 2D-set up of the co-culture system. In fact, although whole organs can be cultured, both organs and axons grow in 2D-adherent culture conditions on a glass coverslip; customization of the system would be needed in order to obtain a tridimensional, realistic representation of innervation.
In conclusion, microfluidic devices are optimal for investigating the role of innervation in developing or regenerating organs and permit the study of interactions between neuronal and target tissues in optimal culture conditions.

Innervation plays a key role in the development, homeostasis and regeneration of organs and tissues 1,2. Furthermore, innervation is involved in the regulation of stem cell proliferation, mobilization and differentiation 3&#8211;5. Indeed, recent studies realised in tissues of the orofacial complex have shown that parasympathetic nerves are necessary for epithelial progenitor cells function during the development and regeneration of the salivary glands 6,7. Similarly, it has been demonstrated that innervation is necessary for the development and maintenance of taste buds 8&#8211;11. Thus, it is important to analyse the yet neglected roles of innervation in the development of other important orofacial organs and tissues such as teeth.
In spite of the rich innervation of adult teeth, and in contrast to all other organs and tissues of the body, developing teeth start to be innervated at the earliest postnatal stages. Teeth develop as a result of sequential and reciprocal interactions between the oral ectoderm and cranial neural crest-derived mesenchyme. These interactions give rise to epithelial-derived ameloblasts and mesenchyme-derived odontoblasts that are responsible for the formation of enamel and dentin, respectively 12. Sensory nerves from the trigeminal ganglia and sympathetic nerves from the superior cervical ganglia innervate the adult teeth 13&#8211;15. During embryogenesis, nerve fibres emanating from the trigeminal ganglia project towards the developing tooth germs and progressively surround them but they do not penetrate into the dental papilla mesenchyme 13. Nerve fibres enter the dental pulp mesenchyme at more advanced developmental stages that correlate with odontoblast differentiation and dentin matrix deposition 16. Dental pulp innervation is completed soon after tooth eruption in the oral cavity 13. Previous studies have revealed that various semaphorins and neurotrophins are involved in the regulation of innervation during odontogenesis 16&#8211;19. Earlier studies have clearly demonstrated that innervation is a prerequisite for tooth formation in fishes 20. More recent studies have shown that homeostasis of dental mesenchyme stem cells in mouse incisors is regulated by sensory nerves via secretion of sonic hedgehog (shh) 21. Nevertheless, the role of innervation in tooth initiation, development and regeneration is still highly controversial in mammals 22&#8211;24.
A plethora of in vivo studies have provided important information about the patterns of innervation of dental tissues during development and repair processes of various animal models 13,25,26. However, most of these approaches are not optimal to highlight the molecular basis of the interactions between nerve fibres and target organs and tissues. Co-cultures constitute a valuable method to investigate and manipulate the interactions between nerve fibres and teeth in a controlled and isolated environment 26&#8211;29. At the same time, co-culturing is subject to various technical adjustments. For example, nerves and specific dental tissues (e.g., dental pulp, dental follicle, dental epithelium) often require different culture media in order to guarantee tissue survival for long periods of time 30&#8211;32.
In the last decades, conventional co-cultures using the same culture medium have been performed for very short periods (e.g., two days) to investigate the attractive or repulsive effects of developing oral and dental tissues on sensory nerve fibres 27&#8211;29. However, extension of the culture period is required to investigate the effects of innervation on tooth morphogenesis and cytodifferentiation, and to study the dynamics of nerve fibres branching within target organs. Therefore, non-contiguous co-cultures would be more suitable to perform studies on neuronal-dental tissues interactions.
Microfluidics systems allow co-cultures of neurons and different cell types in their appropriate culture media. In these devices, dental tissues and neurons are separated in different compartments, while allowing the growth of axons from the neural cell bodies through microchannels towards the compartment containing their target tissue 33. Microfluidic devices have been already used to study the interactions between neurons and microglia 34,35, as well as cell to cell interactions in cancer and neovascularization 35. Moreover, these systems have been used to study the interactions between dorsal root ganglia and osteoblasts 36.
We have recently demonstrated that trigeminal ganglia (TG) and teeth are able to survive for long periods of time when co-cultured in microfluidic devices 37. Moreover, we have demonstrated that teeth from different developmental stages maintain in these in vitro conditions the same repulsive or attractive effects on trigeminal innervation that they show in vivo 37. This protocol provides information about a simple, powerful and flexible way to co-culture ganglia/nerves and target tissues and to study the roles of specific molecules on such interactions in a controlled and isolated environment.

<table><tbody><tr><td>AXIS Axon Isolation Devices</td><td>Millipore</td><td>AX15010-TC</td><td>Microchannels of different lenght are available</td></tr><tr><td>Laminin</td><td>Sigma Aldrich</td><td>L2020</td><td></td></tr><tr><td>Neurobasal</td><td>Gibco</td><td>21103-049</td><td></td></tr><tr><td>B27</td><td>Gibco</td><td>17504</td><td></td></tr><tr><td>Recombinant Mouse beta-NGF</td><td>R&amp;amp;D Systems</td><td>1156-NG-100</td><td>Human and Rat beta-NGF (R&amp;amp;D Systems) are equivalent</td></tr><tr><td>DMEM-F12</td><td>Gibco</td><td>11320-033</td><td></td></tr></tbody></table>

analysis of developing tooth germ innervation using microfluidic co-culture devices

Innervation plays a key role in the development, homeostasis and regeneration of organs and tissues. However, the mechanisms underlying these phenomena are not well understood yet. In particular, the role of innervation in tooth development and regeneration is neglected.
Several in vivo studies have provided important information about the patterns of innervation of dental tissues during development and repair processes of various animal models. However, most of these approaches are not optimal to highlight the molecular basis of the interactions between nerve fibres and target organs and tissues.
Co-cultures constitute a valuable method to investigate and manipulate the interactions between nerve fibres and teeth in a controlled and isolated environment. In the last decades, conventional co-cultures using the same culture medium have been performed for very short periods (e.g., two days) to investigate the attractive or repulsive effects of developing oral and dental tissues on sensory nerve fibres. However, extension of the culture period is required to investigate the effects of innervation on tooth morphogenesis and cytodifferentiation.
Microfluidics systems allow co-cultures of neurons and different cell types in their appropriate culture media. We have recently demonstrated that trigeminal ganglia (TG) and teeth are able to survive for a long period of time when co-cultured in microfluidic devices, and that they maintain in these conditions the same innervation pattern that they show in vivo.
On this basis, we describe how to isolate and co-culture developing trigeminal ganglia and tooth germs in a microfluidic co-culture system.This protocol describes a simple and flexible way to co-culture ganglia/nerves and target tissues and to study the roles of specific molecules on such interactions in a controlled and isolated environment.

These results show that isolated trigeminal ganglia can grow in one compartment of the microfluidic device and, in addition, that the development of the isolated tooth germs is sustained for a long period of time in the other compartment of the microfluidic device. Different culture media are used in the two compartments, and the microgrooves between the two compartments allow extension of axon from the trigeminal ganglion towards the developing tooth germs. Figure 3 represents a visualization of neurofilament via immunofluorescence 37, in a co-culture of a mouse embryonic trigeminal ganglion and mouse embryonic incisor in the described microfluidic co-culture system. Mouse incisors are not innervated during development in vivo; consistently, axons from the trigeminal ganglion are repealed by the developing tooth germ in culture for as much as 10 days. Figure 3A shows an overview of the axonal chamber in this co-culture system. Figure 3B and 3C show progressive magnifications of the neurites within the axonal chambers and the micro-groves. Tooth germs (or any co-cultures organs or tissues) can be easily removed from the microfluidic devices and analysed separately e.g., processed for histological stainings or for gene expression analysis.
<img alt="Figure 1" src="/files/ftp_upload/53114/53114fig1.jpg" />
Figure 1.&#160;Views of mounted microfluidic co-culture device (A) from above; (B) partially lateral. The culture chambers (cc) are highlighted in red (eosin) and blue (toluidine blue); microgrooves (mg) can be seen as a white line between the culture chambers. Ganglia and co-cultured organs/tissues are placed into the appropriate culture chamber via the punched holes (ph) in the device. Media are added and removed via the wells (mw). <a href="https://www-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/53114/53114fig1large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
<img alt="Figure 2" src="/files/ftp_upload/53114/53114fig2.jpg" />
Figure 2.&#160;(A) Lateral view of a mouse embryo head (embryonic day of development E14.5). The black line indicates where the lower jaw should be cut in order to preserve integrity of both trigeminal ganglia and tooth germs. (B) Mouse embryo head (E14.5) after removal of lower jaw, skull and telencephalon. Black arrows indicate trigeminal ganglia (TG). (C) Lower jaw of mouse embryo (E14.5) after removal of the tongue. Black arrows indicate the localization of the different tooth germs (Inc: incisor; FM: first molars). (D) Schematic representation of the microfluidic co-culture device. <a href="https://www-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/53114/53114fig3large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
<img alt="Figure 3" src="/files/ftp_upload/53114/53114fig3.jpg" />
Figure 3.&#160;Co-culture of trigeminal ganglion and incisor tooth germ from wild-type E15.5 mouse embryos. (A) Overview of the axonal chamber (neurofilament, DAPI). Scale bar: 300 &#181;m. (B) Higher magnification of the microgrooves and neurites growing into the axonal chamber (neurofilament, DAPI; superposition of fluorescent and brightfield images). Scale bar: 150 &#181;m. (C) Higher magnification showing the growth of the axons within the microgrooves (neurofilament). Scale bar: 75 &#181;m. <a href="https://www-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/53114/53114fig3large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>

Watch this Scientific Journal Video about Analysis of Developing Tooth Germ Innervation Using Microfluidic Co-culture Devices at JoVE.com

Analysis of Developing Tooth Germ Innervation Using Microfluidic Co-culture Devices

Co-cultures represent a valuable method to study the interactions between nerves and target tissues and organs. Microfluidic systems allow co-culturing ganglia and whole developing organs or tissues in different culture media, thus representing a valuable tool for the in vitro study of the crosstalk between neurons and their targets.

Innervation plays a key role in the development, homeostasis and regeneration of organs and tissues. However, the mechanisms underlying these phenomena ...

analysis-developing-tooth-germ-innervation-using-microfluidic-co

Universidad San Sebastian

Research

JoVE Journal

Neuroscience

8.2K Views.  University of Zurich. Co-cultures represent a valuable method to study the interactions between nerves and target tissues and organs. Microfluidic systems allow co-culturing ganglia and whole developing organs or tissues in different culture media, thus representing a valuable tool for the in vitro study of the crosstalk between neurons and their targets.

Video: Analysis of Developing Tooth Germ Innervation Using Microfluidic Co-culture Devices

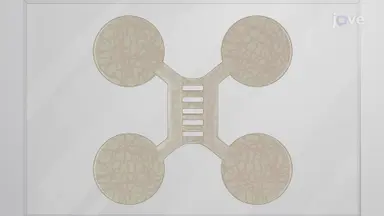

Imaging Analysis of Neuron to Glia Interaction in Microfluidic Culture Platform (MCP)-based Neuronal Axon and Glia Co-culture System

Proper neuron to glia interaction is critical to physiological function of the central nervous system (CNS). This bidirectional communication is sophisticatedly mediated by specific signaling pathways between neuron and glia1,2 . Identification and characterization of these signaling pathways is essential to the understanding of how neuron to glia interaction shapes CNS physiology. Previously, neuron and glia mixed cultures have been widely utilized for testing and characterizing signaling pathways between neuron and glia. What we have learned from these preparations and other in vivo tools, however, has suggested that mutual signaling between neuron and glia often occurred in specific compartments within neurons (i.e., axon, dendrite, or soma)3. This makes it important to develop a new culture system that allows separation of neuronal compartments and specifically examines the interaction between glia and neuronal axons/dendrites. In addition, the conventional mixed culture system is not capable of differentiating the soluble factors and direct membrane contact signals between neuron and glia. Furthermore, the large quantity of neurons and glial cells in the conventional co-culture system lacks the resolution necessary to observe the interaction between a single axon and a glial cell.
	In this study, we describe a novel axon and glia co-culture system with the use of a microfluidic culture platform (MCP). In this co-culture system, neurons and glial cells are cultured in two separate chambers that are connected through multiple central channels. In this microfluidic culture platform, only neuronal processes (especially axons) can enter the glial side through the central channels. In combination with powerful fluorescent protein labeling, this system allows direct examination of signaling pathways between axonal/dendritic and glial interactions, such as axon-mediated transcriptional regulation in glia, glia-mediated receptor trafficking in neuronal terminals, and glia-mediated axon growth. The narrow diameter of the chamber also significantly prohibits the flow of the neuron-enriched medium into the glial chamber, facilitating probing of the direct membrane-protein interaction between axons/dendrites and glial surfaces.

Imaging Analysis of Neuron to Glia Interaction in Microfluidic Culture Platform MCP-based Neuronal Axon and Glia Co-culture System

This study describes the procedures of setting up a novel neuronal axon and (astro)glia co-culture platform. In this co-culture system, manipulation of direct interaction between a single axon (and single glial cell) becomes feasible, allowing mechanistic analysis of the mutual neuron to glial signaling.

Proper  neuron to glia interaction is critical to physiological function of the central  nervous system (CNS). This bidirectional communication is ...

Co-culture of Glutamatergic Neurons and Pediatric High-Grade Glioma Cells Into Microfluidic Devices to Assess Electrical Interactions

Pediatric high-grade gliomas (pHGG) represent childhood and adolescent brain cancers that carry a rapid dismal prognosis. Since there is a need to overcome the resistance to current treatments and find a new way of cure, modeling the disease as close as possible in an in vitro setting to test new drugs and therapeutic procedures is highly demanding. Studying their fundamental pathobiological processes, including glutamatergic neuron hyperexcitability, will be a real advance in understanding interactions between the environmental brain and pHGG cells. Therefore, to recreate neurons/pHGG cell interactions, this work shows the development of a functional in vitro model co-culturing human-induced Pluripotent Stem (hiPS)-derived cortical glutamatergic neurons pHGG cells into compartmentalized microfluidic devices and a process to record their electrophysiological modifications. The first step was to differentiate and characterize human glutamatergic neurons. Secondly, the cells were cultured in microfluidic devices with pHGG derived cell lines. Brain microenvironment and neuronal activity were then included in this model to analyze the electrical impact of pHGG cells on these micro-environmental neurons. Electrophysiological recordings are coupled using multielectrode arrays (MEA) to these microfluidic devices to mimic physiological conditions and to record the electrical activity of the entire neural network. A significant increase in neuron excitability was underlined in the presence of tumor cells.

Recent works uncover the neuronal impact on high-grade pediatric glioma (pHGG) cells and their reciprocal interactions. The present work shows the development of an in vitro model co-culturing pHGG cells and glutamatergic neurons and recorded their electrophysiological interactions to mimic those interactivities.

Pediatric high-grade gliomas (pHGG) represent childhood and adolescent brain cancers that carry a rapid dismal prognosis. Since there is a need to ...

Cancer Research

Preparation of Neuronal Co-cultures with Single Cell Precision

Microfluidic embodiments of the Campenot chamber have attracted great interest from the neuroscience community. These interconnected co-culture platforms can be used to investigate a variety of questions, spanning developmental and functional neurobiology to infection and disease propagation. However, conventional systems require significant cellular inputs (many thousands per compartment), inadequate for studying low abundance cells, such as primary dopaminergic substantia nigra, spiral ganglia, and Drosophilia melanogaster neurons, and impractical for high throughput experimentation. The dense cultures are also highly locally entangled, with few outgrowths (&#60;10%) interconnecting the two cultures. In this paper straightforward microfluidic and patterning protocols are described which address these challenges: (i) a microfluidic single neuron arraying method, and (ii) a water masking method for plasma patterning biomaterial coatings to register neurons and promote outgrowth between compartments. Minimalistic neuronal co-cultures were prepared with high-level (&#62;85%) intercompartment connectivity and can be used for high throughput neurobiology experiments with single cell precision.

Protocols for single neuron microfluidic arraying and water masking for the in-chip plasma patterning of biomaterial coatings are described. Highly interconnected co-cultures can be prepared using minimal cell inputs.

Microfluidic embodiments of the Campenot chamber have attracted great interest from the neuroscience community. These interconnected co-culture platforms ...

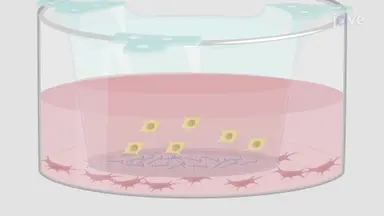

A Co-Culture Method to Study Neurite Outgrowth in Response to Dental Pulp Paracrine Signals

Tooth innervation allows teeth to sense pressure, temperature and inflammation, all of which are crucial to the use and maintenance of the tooth organ. Without sensory innervation, daily oral activities would cause irreparable damage. Despite its importance, the roles of innervation in tooth development and maintenance have been largely overlooked. Several studies have demonstrated that DP cells secrete extracellular matrix proteins and paracrine signals to attract and guide TG axons into and throughout the tooth. However, few studies have provided detailed insight into the crosstalk between the DP mesenchyme and neuronal afferents. To address this gap in knowledge, researchers have begun to utilize co-cultures and a variety of techniques to investigate these interactions. Here, we demonstrate the multiple steps involved in co-culturing primary DP cells with TG neurons dispersed on an overlying transwell filter with large diameter pores to allow axonal growth through the pores. Primary DP cells with the gene of interest flanked by loxP sites were utilized to facilitate gene deletion using an Adenovirus-Cre-GFP recombinase system. Using TG neurons from the Thy1-YFP mouse allowed for precise afferent imaging, with expression well above background levels by confocal microscopy. The DP responses can be investigated via protein or RNA collection and analysis, or alternatively, through immunofluorescent staining of DP cells plated on removable glass coverslips. Media can be analyzed using techniques such as proteomic analyses, although this will require albumin depletion due to the presence of fetal bovine serum in the media. This protocol provides a simple method that can be manipulated to study the morphological, genetic, and cytoskeletal responses of TG neurons and DP cells in response to the controlled environment of a co-culture assay.

We describe the isolation, dispersion and plating of dental pulp (DP) primary cells with trigeminal (TG) neurons cultured atop overlying transwell filters. Cellular responses of DP cells can be analyzed with immunofluorescence or RNA/protein analysis. Immunofluorescence of neuronal markers with confocal microscopy permits the analysis of neurite outgrowth responses.

Tooth innervation allows teeth to sense pressure, temperature and inflammation, all of which are crucial to the use and maintenance of the tooth organ. ...

Developmental Biology

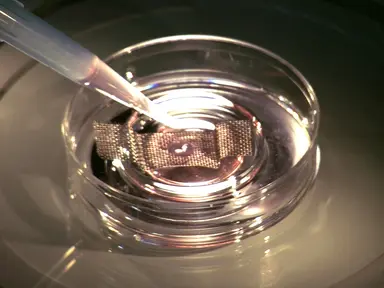

Use of Trowell-Type Organ Culture to Study Regulation of Dental Stem Cells
