1. Circulating Hemocyte Concentration
<ol>
	<li>To obtain larvae of roughly the same developmental stage for this assay, restrict egg collection by allowing females to lay eggs for a fixed time period of 2 - 6 hr.</li>
	<li>Collect larvae in dissecting dish wells filled with 1x phosphate buffered saline (PBS, Table 1).</li>
	<li>For each larva, place 10 &#181;l 1x PBS in a microcentrifuge tube on ice and 10 &#181;l 1x PBS on a clean dissecting pad. Place the dissecting pad on an illuminated stereomicroscope base.</li>
	<li>Dry an individual larva by placing it on a tissue wipe before transferring it to a PBS drop on the dissection pad.</li>
	<li>Using a pair of forceps, gently tear open and carefully invert the cuticle to release the hemolymph.
	NOTE: Take care not to scrape or jab the cuticle as this could potentially release sessile hemocytes29.</li>
	<li>Using a pipet, collect the hemolymph from the dissecting pad. Avoid collecting larval debris such as the fat body.</li>
	<li>Add the hemolymph to a microcentrifuge tube and mix by pipetting up and down.
	NOTE: Several samples can be collected at once and kept on ice for up to an hour.</li>
	<li>Optional: Mix Trypan blue with the hemolymph sample in equal parts to dye and exclude dead cells. Count cells within 3 min of adding Trypan blue because it is toxic to cells.</li>
	<li>Mix the sample by pipetting up and down before loading 10 &#181;l into a hemocytometer chamber.</li>
	<li>If using an automated cell counter, set appropriate parameters for cell size and circularity. For example, set a minimum cell size of 2 &#181;m, a maximum cell size of 22 &#181;m, and a circularity of 75 - 80% roundness to detect normal, round hemocytes34. Experiment with different parameters to detect larger and spindle-shaped hemocytes, such as lamellocytes. Alternatively, use a hemocytometer to manually count hemocytes.</li>
</ol>
2. Circulating Hemocyte Immunohistochemistry
<ol>
	<li>To obtain larvae of roughly the same developmental stage for this assay, restrict egg collection by allowing females to lay eggs for a fixed time period of 2 - 6 hr.</li>
	<li>Place one coverslip in each well of a 6- or 12-well plate.
	NOTE: Square coverslips (22 mm) fit in 6-well plates and round coverslips (18 mm diameter) fit in 12-well plates.</li>
	<li>Collect larvae in dissecting dish wells filled with 1x PBS.</li>
	<li>Place 5 &#181;l 1x PBS in the center of each coverslip.</li>
	<li>Place the plate on an illuminated stereomicroscope base.</li>
	<li>Dry an individual larva on a tissue wipe and then place in the PBS on the coverslip.</li>
	<li>Using a pair of forceps, gently tear and carefully invert the cuticle. Before removing the larval carcass, use it to spread the hemolymph evenly.
	NOTE: Take care not to scrape or jab the cuticle as this could potentially release sessile hemocytes29.</li>
	<li>Repeat for all larvae, collecting the hemolymph of one larva per coverslip. Allow hemocytes to adhere to the coverslips for 5 - 8 min at room temperature RT. Do not exceed 30 min before fixation.</li>
	<li>Fix hemocytes by adding 5 &#181;l of 7.5% formaldehyde (Table 1) to each coverslip for 15 min at room temperature.</li>
	<li>Wash coverslips three times with 1x PBS. Tip the plate and aspirate PBS after each wash. To prevent run-off of the permeabilization solution in the next step, use the aspirator to remove excess PBS from perimeter of the coverslips.</li>
	<li>Add 100 &#181;l permeabilization solution (Table 1) to each coverslip for 20 min at RT.</li>
	<li>Tip and gently tap the plate to aspirate the permeabilization solution.</li>
	<li>Dilute primary antibody with antibody solution (Table 1) according to provider&#39;s specifications. Add at least 500 &#181;l primary antibody solution to coverslips in 12-well plates. Add at least 1.5 ml in 6-well plates. Incubate at 4 &#176;C overnight.</li>
	<li>Remove the primary antibody solution and wash coverslips with 1x PBS for 10 min on an orbital shaker, three times.</li>
	<li>Dilute secondary antibody with antibody solution according to provider&#39;s specifications. Add at least 500 &#181;l secondary antibody solution to coverslips in 12-well plates. Add at least 1.5 ml for 6-well plates. Incubate for at least 2 hr at RT.</li>
	<li>Remove the secondary antibody solution and wash coverslips with 1x PBS for 10 min on an orbital shaker as in Step 2.10, three times.</li>
	<li>During the wash steps, clean glass microscope slides with 70% ethanol (Table 1) using tissue wipes. For each coverslip, place 5 &#181;l mounting buffer (Table 1) on the glass slide.
	NOTE: Two coverslips fit on one slide.</li>
	<li>Aspirate the final PBS wash.</li>
	<li>Use forceps to carefully remove the coverslips from the plates and place, inverted, on top of the mounting buffer.
	Note: Microscope slides can be stored at 4 &#176;C prior to imaging. Maximum storage time depends on the stability of the antibodies used. 6- and 12-well plates can be rinsed and reused.</li>
</ol>
3. In Vivo Crystal Cell Melanization
<ol>
	<li>To obtain larvae of roughly the same developmental stage for this assay, restrict egg collection by allowing females to lay eggs for a fixed time period of 2-6 hours.</li>
	<li>Before beginning, set a heating source at 60 &#176;C.
	NOTE: A thermal cycler program of 60 &#176;C for 10 min (followed by a 25 &#176;C hold) works best, but a water bath or other heating source is sufficient as long as the heat is distributed consistently and evenly over each larva.</li>
	<li>Collect larvae in dissecting dish wells filled with 1x PBS (Table 1).</li>
	<li>One at a time, dry a larva on a tissue wipe and place at the bottom of a PCR tube. Place each larva in a separate PCR tube. (See Figure 3A.)</li>
	<li>For consistent results, ensure that larvae stay at the bottom of the PCR tubes by chilling larvae in the tubes at 4 &#176;C for 10 - 15 min and/or gently tapping the tubes prior to heating.</li>
	<li>Place the PCR tubes in the thermal cycler (or water bath). Heat at 60 &#176;C for 10 min.</li>
	<li>Carefully remove larvae from the PCR tubes into dissecting dish wells filled with fresh 1x PBS.</li>
	<li>Dry larvae on a tissue wipe and arrange on a flat surface for imaging under a stereomicroscope.</li>
	<li>Score images of larvae blindly by multiple individuals.</li>
</ol>
4. Larval Lymph Gland Immunohistochemistry
NOTE: The lymph gland is located approximately one-third length from the anterior end of a larva slightly below the brain on the dorsal side. (See arrow in Figure 3B.) The lymph gland flanks the dorsal vessel and is most easily dissected attached to the mouth hooks or to the brain. Wild-type, third instar lymph glands are very small structures; the primary lobes are approximately 100 - 200 &#181;m in length. (See Figure 4A.)
<ol>
	<li>To obtain larvae of roughly the same developmental stage for this assay, restrict egg collection by allowing females to lay eggs for a fixed time period of 2 - 6 hr.</li>
	<li>Lymph gland dissection
	<ol>
		<li>For each experimental condition, add 1 ml 1x PBS (Table 1) to one well of a 24-well plate.</li>
		<li>Add 1 drop of 0.1% PBST (Table 1) to each well using a disposable transfer pipet.
		NOTE: Detergent, such as Tween 20, is added to lower the surface tension, allowing the tissue to sink to the bottom of the well.</li>
		<li>Place the plate flat on ice.</li>
		<li>Collect larvae in dissecting dish wells filled with 1x PBS.</li>
		<li>Place a clean dissecting pad on an illuminated stereomicroscope base. Use a disposable transfer pipet to place small drops of 0.01% PBST (Table 1) on the pad. Transfer one larva to a PBST drop for dissection.</li>
		<li>Hold the larva with one pair of forceps approximately one-quarter length from the posterior end, dorsal side up.</li>
		<li>Use another pair of forceps to grab the cuticle immediately anterior to the forceps that are holding the larva. Gently pull the cuticle toward the anterior end until the mouth hooks are exposed.
		NOTE: The aim is to peel the cuticle without disturbing any internal structures.</li>
		<li>Release the cuticle and use both forceps to cut the larva in two. Remove the posterior end from the PBST drop.
		NOTE: If the cuticle does not peel all the way to the mouth hooks, cut the larva in two and remove the posterior end. Use one pair of forceps to hold the edge of the cuticle, and use the other pair of forceps to push the mouth hooks through the opening. This will invert the cuticle and expose the mouth hooks. This can be used as an alternate dissection method as well.</li>
		<li>Use one pair of forceps to pin down the cuticle (either the ventral cuticle, the dorsal cuticle flap, or both) for stability.</li>

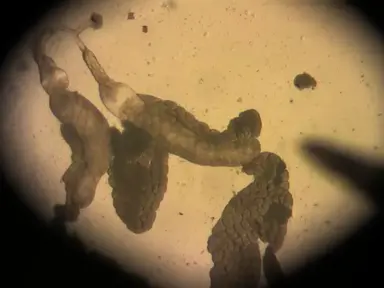

		<li>Use another pair of forceps to grab the exposed mouth hooks and gently pull them out.
		NOTE: This will separate the cuticle from the internal structures. Ideally, the eye/antennal imaginal discs, brain, ring gland, and lymph gland flanking the dorsal vessel will remain attached to the mouth hooks.</li>
		<li>While still holding the mouth hooks, carefully remove unwanted structures such as the salivary glands, fat body, and intestine.
		NOTE: If the brain separates from the mouth hooks, the lymph gland might still be attached to and collected with the brain. In this case, hold the ventral nerve cord instead of the mouth hooks.</li>
		<li>Using the mouth hooks or ventral nerve cord as a handle, transfer the dissected complex containing the lymph gland to the well on ice. Do not exceed 30 min before fixation.</li>
	</ol>
	</li>
	<li>Fixation and immunohistochemistry
	<ol>
		<li>Place the 24-well plate on the stereomicroscope base.</li>
		<li>Use a p200 pipette to carefully remove the PBST from the well.
		NOTE: Empty, neighboring wells are useful to temporarily deposit waste.</li>
		<li>Gently add 200 &#181;l 3.7% formaldehyde (Table 1) down the side of the well and swirl the plate to ensure that the dissected tissues are completely submerged.</li>
		<li>Return the plate to ice for 30 min. If the lymph glands express fluorescent protein(s), keep the plate covered to prevent photobleaching.</li>
		<li>Use a p200 pipette to carefully remove the fixative.</li>
		<li>Wash by adding 200 &#181;l 1x PBS to the well and placing the plate on an orbital shaker for 5 min at room temperature. Use a p200 pipette to carefully remove the PBS.
		NOTE: Fixed lymph glands can be left on ice in PBS until lymph glands for all experimental conditions are dissected and fixed.</li>
		<li>Repeat the wash steps two more times.</li>
		<li>Add 200 &#181;l permeabilization solution (Table 1) to the well. Set the plate on an orbital shaker for 45 min at RT.
		NOTE: 45 min is the &#34;gold standard&#34; for lymph gland permeabilization but the authors have success after only 20 min.</li>
		<li>Remove the solution with a p200 pipette.</li>
		<li>Dilute primary antibody with antibody solution (Table 1) according to provider&#39;s specifications. Add 300 &#181;l primary antibody solution to the well and ensure that the dissected tissues are completely submerged. Incubate at 4 &#176;C overnight.</li>
		<li>Use a p200 pipette to remove the primary antibody.</li>
		<li>Wash by adding 200 &#181;l 1x PBS to the well and placing the plate on an orbital shaker for 10 min at room temperature. Use a p200 pipette to carefully remove the PBS.</li>
		<li>Repeat the wash steps two more times.</li>
		<li>Dilute secondary antibody with antibody solution according to provider&#39;s specifications. Add 300 &#181;l secondary antibody solution to the well and ensure that the dissected tissues are completely submerged. Incubate on an orbital shaker for at least 2 hr at RT.</li>
		<li>Use a p200 pipette to remove the secondary antibody and wash as described in Steps 4.3.12 &#38; 4.3.13. Do not remove the PBS after the final wash.</li>
	</ol>
	</li>
	<li>Lymph gland mounting
	<ol>
		<li>Clean glass microscope slides using 70% ethanol (Table 1) and tissue wipes.</li>
		<li>For each experimental condition, place one drop of mounting buffer (Table 1) on the glass slide.
		NOTE: Two conditions fit on one slide. Mounting buffer volume depends on the number of lymph glands to be mounted. Use 2 &#181;l for approximately 18 - 20 lymph glands, 1 &#181;l for 10 - 12, and 0.5 &#181;l for 5 or less.</li>
		<li>Place the microscope slide on an illuminated stereomicroscope base.</li>
		<li>For up to two conditions at a time, transfer all of the lymph glands from the well to the mounting buffer with forceps, using the mouth hooks or ventral nerve cord as a handle.</li>
		<li>Space the dissected tissues evenly in a circular or rectangular shape, spreading the mounting buffer in the process.</li>
		<li>For each of the dissected tissues, individually, slide one tong of the forceps under the dorsal vessel and gently pull toward the periphery of the mounting buffer.
		NOTE: This will draw the lymph gland out from the rest of the dissected tissues and flatten the lymph gland on the glass.</li>
		<li>Using one tong of the forceps and a sawing motion, cut the dorsal vessel between the lymph gland and the brain.</li>
		<li>Move the rest of the dissected tissues to the opposite side of the lymph gland, at the outermost edge of the buffer.
		NOTE: The unwanted dissected tissues will eventually form a perimeter around the lymph glands and serve as a support upon which the coverslip will rest.</li>
		<li>Repeat until all of the lymph glands are separated from the dissected tissues, reserving one of the unwanted dissected tissues to place in the center.</li>
		<li>Take a coverslip between two fingers. Check that the coverslip is free of dust and fingerprints. If necessary, use a tissue wipe and 70% ethanol to clean the coverslip.</li>
		<li>Ensuring that the edge of the coverslip is parallel to the edge of the glass slide, carefully lower the coverslip over the mounting buffer.
		NOTE: Microscope slides can be stored at 4 &#176;C prior to imaging. Maximum storage time depends on the stability of the antibodies used. 24-well plates can be rinsed and reused.</li>
	</ol>
	</li>
</ol>
5. Imaging
<ol>
	<li>Image fixed hemocytes and mounted lymph glands on an appropriate standard fluorescence or confocal microscope at 20X or higher magnification according to manufacturer&#39;s operating manual. Image whole larvae on a standard stereomicroscope at 2X magnification according to manufacturer&#39;s operating manual.</li>
	<li>Follow software provider&#39;s instructions for deconvolution, if desired.</li>
</ol>
<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
	<tbody>
		<tr>
			<td>Solution</td>
			<td>Composition</td>
			<td>Storage</td>
			<td>Comments</td>
		</tr>
		<tr>
			<td rowspan="5">1x PBS</td>
			<td>200 mg/L potassium chloride</td>
			<td rowspan="5">room temperature</td>
			<td rowspan="5"></td>
		</tr>
		<tr>
			<td>200 mg/L potassium phosphate monobasic</td>
		</tr>
		<tr>
			<td>8,000 mg/L sodium chloride</td>
		</tr>
		<tr>
			<td>1,150 mg/L sodium phosphate dibasic</td>
		</tr>
		<tr>
			<td>dH2O</td>
		</tr>
		<tr>
			<td>Fixative</td>
			<td>3.7% or 7.5% formaldehyde in 1x PBS</td>
			<td>room temperature in the dark</td>
			<td>Formaldehyde is toxic.&#160;</td>
		</tr>
		<tr>
			<td rowspan="3">Permeabilization solution/antibody diluent</td>
			<td>0.4% Triton</td>
			<td rowspan="3">4 &#176;C</td>
			<td rowspan="3">The standard formula uses 0.4% Triton but the authors use 0.1% Tween 20 with success. Use to dilute primary and secondary antibodies according to providers&#39; recommended concentrations.</td>
		</tr>
		<tr>
			<td>5% bovine serum albumin, normal goat serum, or normal donkey serum</td>
		</tr>
		<tr>
			<td>1x PBS</td>
		</tr>
		<tr>
			<td>70% ethanol</td>
			<td>70% 200 proof ethanol in dH2O</td>
			<td>room temperature</td>
			<td></td>
		</tr>
		<tr>
			<td rowspan="4">Mounting buffer</td>
			<td>0.5% N-propyl gallate</td>
			<td rowspan="4">4 &#176;C in the dark</td>
			<td rowspan="4">N-propyl gallate is harmful. DAPI is a mutagen.</td>
		</tr>
		<tr>
			<td>80% glycerol</td>
		</tr>
		<tr>
			<td>Optional: 1 &#956;g/ml DAPI (4&#8217;,6-diamidino-2-phenylindole)</td>
		</tr>
		<tr>
			<td>1x PBS</td>
		</tr>
		<tr>
			<td>0.1% PBST</td>
			<td>0.1% Tween 20 in 1x PBS</td>
			<td>room temperature</td>
			<td></td>
		</tr>
		<tr>
			<td>0.01% PBST</td>
			<td>1:10 dilution of 0.1% PBST</td>
			<td>room temperature</td>
			<td></td>
		</tr>
	</tbody>
</table>
Table 1. Solutions used in this Protocol.

<ol>
	<li>Evans, C. J., Hartenstein, V., Banerjee, U. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Thicker+than+blood:+conserved+mechanisms+in+Drosophila+and+vertebrate+hematopoiesis.">Thicker than blood: conserved mechanisms in Drosophila and vertebrate hematopoiesis.</a> Dev Cell. 5 (5), 673-690 (2003).</li><li>Crozatier, M., Meister, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Drosophila+haematopoiesis.">Drosophila haematopoiesis.</a> Cell Microbiol. 9 (5), 1117-1126 (2007).</li><li>Crozatier, M., Vincent, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Drosophila:+a+model+for+studying+genetic+and+molecular+aspects+of+haematopoiesis+and+associated+leukaemias.">Drosophila: a model for studying genetic and molecular aspects of haematopoiesis and associated leukaemias.</a> Dis Model Mech. 4 (4), 439-445 (2011).</li><li>Gold, K. S., Bruckner, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Drosophila+as+a+model+for+the+two+myeloid+blood+cell+systems+in+vertebrates.">Drosophila as a model for the two myeloid blood cell systems in vertebrates.</a> Exp Hematol. 42 (8), 717-727 (2014).</li><li>Hartenstein, V. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Blood+cells+and+blood+cell+development+in+the+animal+kingdom.">Blood cells and blood cell development in the animal kingdom.</a> Annu Rev Cell Dev Biol. 22, 677-712 (2006).</li><li>Ghosh, S., Singh, A., Mandal, S., Mandal, L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Active+hematopoietic+hubs+in+Drosophila+adults+generate+hemocytes+and+contribute+to+immune+response.">Active hematopoietic hubs in Drosophila adults generate hemocytes and contribute to immune response.</a> Dev Cell. 33 (4), 478-488 (2015).</li><li>Leitao, A. B., Sucena, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Drosophila+sessile+hemocyte+clusters+are+true+hematopoietic+tissues+that+regulate+larval+blood+cell+differentiation.">Drosophila sessile hemocyte clusters are true hematopoietic tissues that regulate larval blood cell differentiation.</a> Elife. 4, (2015).</li><li>Makhijani, K., Alexander, B., Tanaka, T., Rulifson, E., Bruckner, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+peripheral+nervous+system+supports+blood+cell+homing+and+survival+in+the+Drosophila+larva.">The peripheral nervous system supports blood cell homing and survival in the Drosophila larva.</a> Development. 138 (24), 5379-5391 (2011).</li><li>Crozatier, M., Ubeda, J. M., Vincent, A., Meister, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Cellular+immune+response+to+parasitization+in+Drosophila+requires+the+EBF+orthologue+collier.">Cellular immune response to parasitization in Drosophila requires the EBF orthologue collier.</a> PLoS Biol. 2 (8), 196 (2004).</li><li>Markus, R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sessile+hemocytes+as+a+hematopoietic+compartment+in+Drosophila+melanogaster.">Sessile hemocytes as a hematopoietic compartment in Drosophila melanogaster.</a> Proc Natl Acad Sci U S A. 106 (12), 4805-4809 (2009).</li><li>Minakhina, S., Steward, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Melanotic+mutants+in+Drosophila:+pathways+and+phenotypes.">Melanotic mutants in Drosophila: pathways and phenotypes.</a> Genetics. 174 (1), 253-263 (2006).</li><li>Bina, S., Wright, V. M., Fisher, K. H., Milo, M., Zeidler, M. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Transcriptional+targets+of+Drosophila+JAK/STAT+pathway+signalling+as+effectors+of+haematopoietic+tumour+formation.">Transcriptional targets of Drosophila JAK/STAT pathway signalling as effectors of haematopoietic tumour formation.</a> EMBO Rep. 11 (3), 201-207 (2010).</li><li>Avet-Rochex, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=An+in+vivo+RNA+interference+screen+identifies+gene+networks+controlling+Drosophila+melanogaster+blood+cell+homeostasis.">An in vivo RNA interference screen identifies gene networks controlling Drosophila melanogaster blood cell homeostasis.</a> BMC Dev Biol. 10, 65 (2010).</li><li>Rodriguez, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Identification+of+immune+system+and+response+genes,+and+novel+mutations+causing+melanotic+tumor+formation+in+Drosophila+melanogaster.">Identification of immune system and response genes, and novel mutations causing melanotic tumor formation in Drosophila melanogaster.</a> Genetics. 143 (2), 929-940 (1996).</li><li>Mandal, L., Banerjee, U., Hartenstein, V. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Evidence+for+a+fruit+fly+hemangioblast+and+similarities+between+lymph-gland+hematopoiesis+in+fruit+fly+and+mammal+aorta-gonadal-mesonephros+mesoderm.">Evidence for a fruit fly hemangioblast and similarities between lymph-gland hematopoiesis in fruit fly and mammal aorta-gonadal-mesonephros mesoderm.</a> Nat Genet. 36 (9), 1019-1023 (2004).</li><li>Grigorian, M., Mandal, L., Hakimi, M., Ortiz, I., Hartenstein, V. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+convergence+of+Notch+and+MAPK+signaling+specifies+the+blood+progenitor+fate+in+the+Drosophila+mesoderm.">The convergence of Notch and MAPK signaling specifies the blood progenitor fate in the Drosophila mesoderm.</a> Dev Biol. 353 (1), 105-118 (2011).</li><li>Lebestky, T., Jung, S. H., Banerjee, U. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+Serrate-expressing+signaling+center+controls+Drosophila+hematopoiesis.">A Serrate-expressing signaling center controls Drosophila hematopoiesis.</a> Genes Dev. 17 (3), 348-353 (2003).</li><li>Krzemien, J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Control+of+blood+cell+homeostasis+in+Drosophila+larvae+by+the+posterior+signalling+centre.">Control of blood cell homeostasis in Drosophila larvae by the posterior signalling centre.</a> Nature. 446 (7133), 325-328 (2007).</li><li>Mandal, L., Martinez-Agosto, J. A., Evans, C. J., Hartenstein, V., Banerjee, U. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+Hedgehog-+and+Antennapedia-dependent+niche+maintains+Drosophila+haematopoietic+precursors.">A Hedgehog- and Antennapedia-dependent niche maintains Drosophila haematopoietic precursors.</a> Nature. 446 (7133), 320-324 (2007).</li><li>Benmimoun, B., Polesello, C., Haenlin, M., Waltzer, L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+EBF+transcription+factor+Collier+directly+promotes+Drosophila+blood+cell+progenitor+maintenance+independently+of+the+niche.">The EBF transcription factor Collier directly promotes Drosophila blood cell progenitor maintenance independently of the niche.</a> Proc Natl Acad Sci U S A. 112 (29), 9052-9057 (2015).</li><li>Sinenko, S. A., Mandal, L., Martinez-Agosto, J. A., Banerjee, U. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Dual+role+of+wingless+signaling+in+stem-like+hematopoietic+precursor+maintenance+in+Drosophila.">Dual role of wingless signaling in stem-like hematopoietic precursor maintenance in Drosophila.</a> Dev Cell. 16 (5), 756-763 (2009).</li><li>Pennetier, D., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Size+control+of+the+Drosophila+hematopoietic+niche+by+bone+morphogenetic+protein+signaling+reveals+parallels+with+mammals.">Size control of the Drosophila hematopoietic niche by bone morphogenetic protein signaling reveals parallels with mammals.</a> Proc Natl Acad Sci U S A. 109 (9), 3389-3394 (2012).</li><li>Dragojlovic-Munther, M., Martinez-Agosto, J. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Extracellular+matrix-modulated+Heartless+signaling+in+Drosophila+blood+progenitors+regulates+their+differentiation+via+a+Ras/ETS/FOG+pathway+and+target+of+rapamycin+function.">Extracellular matrix-modulated Heartless signaling in Drosophila blood progenitors regulates their differentiation via a Ras/ETS/FOG pathway and target of rapamycin function.</a> Dev Biol. 384 (2), 313-330 (2013).</li><li>Ferguson, G. B., Martinez-Agosto, J. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Yorkie+and+Scalloped+signaling+regulates+Notch-dependent+lineage+specification+during+Drosophila+hematopoiesis.">Yorkie and Scalloped signaling regulates Notch-dependent lineage specification during Drosophila hematopoiesis.</a> Curr Biol. 24 (22), 2665-2672 (2014).</li><li>Milton, C. C., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+Hippo+pathway+regulates+hematopoiesis+in+Drosophila+melanogaster.">The Hippo pathway regulates hematopoiesis in Drosophila melanogaster.</a> Curr Biol. 24 (22), 2673-2680 (2014).</li><li>Evans, C. J., Liu, T., Banerjee, U. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Drosophila+hematopoiesis:+Markers+and+methods+for+molecular+genetic+analysis.">Drosophila hematopoiesis: Markers and methods for molecular genetic analysis.</a> Methods. 68 (1), 242-251 (2014).</li><li>Neyen, C., Bretscher, A. J., Binggeli, O., Lemaitre, B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Methods+to+study+Drosophila+immunity.">Methods to study Drosophila immunity.</a> Methods. 68 (1), 116-128 (2014).</li><li>Small, C., Paddibhatla, I., Rajwani, R., Govind, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=An+introduction+to+parasitic+wasps+of+Drosophila+and+the+antiparasite+immune+response.">An introduction to parasitic wasps of Drosophila and the antiparasite immune response.</a> J Vis Exp. (63), e3347 (2012).</li><li>Petraki, S., Alexander, B., Bruckner, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Assaying+Blood+Cell+Populations+of+the+Drosophila+melanogaster+Larva.">Assaying Blood Cell Populations of the Drosophila melanogaster Larva.</a> J Vis Exp. (105), (2015).</li><li>Rizki, M. T. M., Rizki, R. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Functional+significance+of+the+crystal+cells+in+the+larva+of+Drosophila+mekmogaster.">Functional significance of the crystal cells in the larva of Drosophila mekmogaster.</a> Journal of Biophysical and Biochemical Cytology. 5, 235-240 (1959).</li><li>Kurucz, E., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Definition+of+Drosophila+hemocyte+subsets+by+cell-type+specific+antigens.">Definition of Drosophila hemocyte subsets by cell-type specific antigens.</a> Acta Biol Hung. 58, 95-111 (2007).</li><li>Jung, S. H., Evans, C. J., Uemura, C., Banerjee, U. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+Drosophila+lymph+gland+as+a+developmental+model+of+hematopoiesis.">The Drosophila lymph gland as a developmental model of hematopoiesis.</a> Development. 132 (11), 2521-2533 (2005).</li><li>Krzemien, J., Crozatier, M., Vincent, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Ontogeny+of+the+Drosophila+larval+hematopoietic+organ,+hemocyte+homeostasis+and+the+dedicated+cellular+immune+response+to+parasitism.">Ontogeny of the Drosophila larval hematopoietic organ, hemocyte homeostasis and the dedicated cellular immune response to parasitism.</a> Int J Dev Biol. 54 (6-7), 1117-1125 (2010).</li><li>Rizki, T. M., Rizki, R. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Properties+of+the+Larval+Hemocytes+of+Drosophila-Melanogaster.">Properties of the Larval Hemocytes of Drosophila-Melanogaster.</a> Experientia. 36 (10), 1223-1226 (1980).</li><li>Lanot, R., Zachary, D., Holder, F., Meister, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Postembryonic+hematopoiesis+in+Drosophila.">Postembryonic hematopoiesis in Drosophila.</a> Dev Biol. 230 (2), 243-257 (2001).</li><li>McBrayer, Z., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Prothoracicotropic+hormone+regulates+developmental+timing+and+body+size+in+Drosophila.">Prothoracicotropic hormone regulates developmental timing and body size in Drosophila.</a> Dev Cell. 13 (6), 857-871 (2007).</li><li>Reimels, T. A., Pfleger, C. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Drosophila+Rabex-5+restricts+Notch+activity+in+hematopoietic+cells+and+maintains+hematopoietic+homeostasis.">Drosophila Rabex-5 restricts Notch activity in hematopoietic cells and maintains hematopoietic homeostasis.</a> J Cell Sci. 128 (24), 4512-4525 (2015).</li></ol>

The authors declare that they have no competing or financial interests.

Upon genetic or environmental alteration, the four methods described here can be used individually or in conjunction to analyze distinct processes during hematopoiesis such as signaling, survival, proliferation, and differentiation. Drosophila hematopoiesis is a dynamic process; the number of hemocytes per animal increases35 and the structure and gene expression of the lymph gland changes32 during development. Prior to performing these assays, therefore, it is critical to restrict egg collections by allowing females to lay eggs for a fixed amount of time and to confirm the desired larval developmental stage. For shorter egg collections (less than 6 hr) or for instances in which females are unhealthy or scarce, egg laying can be encouraged by creating crevices in the food. This can be accomplished by removing a portion of food with an ethanol-cleaned spatula. If excess liquid accumulates in the food, use tissue wipes to soak up the liquid. (See Figure 1A.)
Alone, the methods described here have limitations. For instance, measuring circulating hemocyte concentration captures changes in hemocyte survival or proliferation but provides no information about hemocyte lineage distribution or any lineage disruption that might be consequent to genetic or environmental alteration. Conversely, immunohistochemistry of circulating hemocytes reveals changes in specific hemocyte lineages in the hemolymph but only in relative, not absolute, numbers. Crystal cell melanization in vivo is difficult to quantitate as crystal cell distribution is variable and sessile hemocytes are dynamic8,10. Rather, multiple individuals should score crystal cell melanization blindly. Finally, observations made in one hemocyte compartment might not necessarily hold true in other compartments.
When used together, these assays can be applied to distinguish genetic alterations that regulate proliferation or survival from those that regulate gene expression or differentiation. For instance, a genetic alteration can increase proliferation of hemocytes such that hemocyte concentration increases but the relative proportions of hemocyte lineages remains the same. Alternately, a genetic alteration can promote changes in hemocyte differentiation into specific lineages with no effect on overall hemocyte concentration. The crystal cell population can be interrogated quickly and easily using the in vivo melanization method, facilitating genetic screens and genetic interaction studies. This method can be used in corroboration with genetic studies that utilize prophenoloxidase 1 (PPO1, also called black cells, Bc) mutant alleles or immunohistochemical assays that utilize crystal cell-specific antibodies. The larval lymph gland can be used to address similar questions regarding hematopoietic cellular processes. Numerous signaling pathways are involved in establishing and maintaining the lymph gland and its major zones. Each zone has distinct gene expression and function in larval hematopoiesis. Additionally, utilizing the lymph gland can reveal autonomous and non-autonomous functions within the lymph gland zones or lymph gland hemocytes.
Relevant methods for studying Drosophila hematopoiesis have been compiled in comprehensive text-based resources only recently26,27. Though indispensable to the field, these resources are limited in scope. Methods for measuring hemocyte concentration, for example, were not included. Written methods, especially those describing dissection techniques, can be challenging to master quickly. Additional contributions have been made, providing visual resources to assist with methods, but were still limited in number and in scope28,29. The methods described here, while also not comprehensive, add to the resources available to aid in the study of Drosophila hematopoiesis.
We offer modifications and alternatives to existing protocols. For example, there are several advantages to measuring hemocyte concentration with an automated cell counter rather than a manual hemocytometer, including increased speed, ease, and objectivity. In our experience, using a water bath to heat larvae for crystal cell visualization resulted in widely variable results, especially if the larvae are heated in the vials in which they are raised. Heating larvae in individual PCR tubes yielded less variable and more reproducible results. The lymph gland dissection method described here, though previously outlined in a written protocol26, provides an alternative to existing visual references28. Finally, if access to a confocal microscope is limited, we suggest that deconvolution of standard fluorescence images might be a suitable substitute for confocal images. Deconvolution algorithms either remove or reassign out-of-focus light captured by conventional fluorescence microscopy, improving resolution and contrast similar in principle to the elimination of out-of-focus light by confocal microscopy, and can be applied to 2-dimensional and 3-dimensional (Z-stack) images. For some applications, as demonstrated here, deconvolution can dramatically improve images taken with conventional fluorescence microscopes.

The complex mechanisms regulating the transcription factors and signaling pathways that coordinate the development of the hematopoietic system and that malfunction in hematological diseases remain poorly understood. These transcription factors and signaling pathways, as well as their regulation, are highly conserved between Drosophila and mammalian hematopoiesis1-5. Thus the Drosophila hematopoietic system represents an excellent genetic model to define the molecular mechanisms controlling hematopoiesis and underlying hematological diseases.
Similar to mammals, Drosophila generate blood cells, called hemocytes, in spatially and temporally distinct phases of hematopoiesis. Traditionally, Drosophila hematopoiesis was thought to be restricted to phases in the embryonic mesoderm and in the larval lymph gland. Recent studies provide evidence that hematopoiesis also occurs in larval sessile clusters and in the adult abdomen6-8. All hematopoietic phases produce two types of mature hemocytes: plasmatocytes and crystal cells. Plasmatocytes are macrophage-like cells involved in phagocytosis, innate immunity, and wound healing. Crystal cells contain pro-phenoloxidases required for melanization, a reaction used in insect immune responses and wound healing. Larval hematopoiesis can generate a third mature hemocyte type, called a lamellocyte, in response to certain immune challenges such as parasitoid wasp infection9,10. Lamellocytes are large, adherent cells that function, in conjunction with plasmatocytes and crystal cells, to encapsulate and neutralize wasp eggs laid in Drosophila larvae. In the absence of parasitization, lamellocytes are not found in wild-type larvae. Melanotic masses resemble melanized, encapsulated wasp eggs; many mutant Drosophila strains develop melanotic masses in the absence of parasitization. The presence of lamellocytes and/or melanotic masses can be indicative of hematopoietic abnormalities. In fact, the melanotic mass phenotype has been used to identify genes and pathways involved in hematopoiesis11-14.
The larval hematopoietic system is the most extensively studied to date. It is comprised of hemocytes circulating in the hemolymph, sessile hemocyte clusters patterned under the cuticle, and hemocytes residing in the lymph gland. The lymph gland is a series of bilateral lobes attached to the dorsal vessel. Each primary lobe of the lymph gland is divided into three main zones. The outermost zone is known as the cortical zone and contains maturing hemocytes. The innermost zone is called the medullary zone and is comprised of quiescent hemocyte precursors. The third zone, the posterior signaling center, is a small group of cells at the base of the lymph gland that act as a stem cell-like niche. Early work established critical functions for Notch15-18, Hedgehog19,20, JAK-STAT18, and Wingless21 activity to regulate larval lymph gland development. More recent studies have demonstrated that BMP22, FGF-Ras23, and Hippo24,25 signaling also function within the larval lymph gland.
Four larval hematopoietic assays outlined here describe 1) measuring circulating hemocyte concentration, defined as number of cells per unit volume, 2) isolating and fixing circulating hemocytes for immunohistochemistry, 3) visualizing crystal cells in vivo, and 4) dissecting, fixing, and mounting lymph glands for immunohistochemistry. These assays can be used as hematopoietic readouts to assess the functions and regulations of signaling pathways in the larval hematopoietic system. While these methods have been used previously in the field, visual documentation of these assays has begun only recently8,26-30. Several publications cited here are helpful resources describing similar methods and hematopoietic markers26,31-33. Additionally, Trol and Viking are useful markers of the lymph gland basement membrane.

<table><tbody><tr><td>PBS tablets</td><td>MP Biomedicals</td><td>2810305</td><td></td></tr><tr><td>dissecting dish</td><td>Corning</td><td>7220-85</td><td></td></tr><tr><td>microcentrifuge tube</td><td>Denville</td><td>C2170</td><td></td></tr><tr><td>silicone dissecting pad, made from Sylgard 184 kit</td><td>Krayden (distributed through Fisher)</td><td>NC9644388 (Fisher catalog number)</td><td>Made in petri dish by mixing components of Sylgard elastomer kit according to manufacturer instructions.</td></tr><tr><td>stereomicroscope</td><td>Morrell Instruments (Nikon distributor)</td><td>mna42000, mma36300</td><td>Nikon models SMZ1000 and SMZ645</td></tr><tr><td>tissue wipe</td><td>VWR</td><td>82003-820</td><td></td></tr><tr><td>forceps</td><td>Electron Microscopy Sciences</td><td>72700-DZ</td><td></td></tr><tr><td>p200 pipette</td><td>Eppendorf</td><td>3120000054</td><td></td></tr><tr><td>Countess Automated Cell Counter</td><td>Invitrogen</td><td>C10227</td><td></td></tr><tr><td>Countess cell counting chamber slides</td><td>Invitrogen</td><td>C10283</td><td></td></tr><tr><td>hemocytometer</td><td>Hausser Scientific</td><td>3200</td><td></td></tr><tr><td>trypan blue stain</td><td>Life Technologies</td><td>T10282</td><td></td></tr><tr><td>formaldehyde</td><td>Fisher</td><td>BP531-500</td><td></td></tr><tr><td>Triton</td><td>Fisher</td><td>BP151-500</td><td></td></tr><tr><td>Tween 20</td><td>Fisher</td><td>BP337-500</td><td></td></tr><tr><td>bovine serum albumin</td><td>Rocky Mountain Biologicals</td><td>BSA-BSH-01K</td><td></td></tr><tr><td>normal goat serum</td><td>Sigma</td><td>G9023-10ML</td><td></td></tr><tr><td>normal donkey serum</td><td>Sigma</td><td>D9663-10ML</td><td></td></tr><tr><td>200 proof ethanol</td><td>VWR</td><td>V1001</td><td></td></tr><tr><td>N-propyl gallate</td><td>MP Biomedicals</td><td>102747</td><td></td></tr><tr><td>glycerol</td><td>VWR</td><td>EM-4750</td><td></td></tr><tr><td>DAPI (4&amp;rsquo;,6-diamidino-2-phenylindole)</td><td>Fisher</td><td>62248</td><td></td></tr><tr><td>6-well plate</td><td>Corning</td><td>351146</td><td></td></tr><tr><td>12-well plate</td><td>Corning</td><td>351143</td><td></td></tr><tr><td>microscope cover glass, 22 mm square</td><td>Fisher</td><td>12-544-10</td><td></td></tr><tr><td>microscope cover glass, 18 mm circular</td><td>Fisher</td><td>12-545-100</td><td></td></tr><tr><td>glass microscope slides</td><td>Fisher</td><td>22-034-980</td><td></td></tr><tr><td>thermal cycler</td><td>Eppendorf</td><td>E950010037</td><td>Mastercycler EP Gradient S</td></tr><tr><td>PCR tubes</td><td>USA Scientific</td><td>1402-2700</td><td></td></tr><tr><td>24-well plate</td><td>Corning</td><td>351147</td><td></td></tr><tr><td>disposable transfer pipet</td><td>Fisher</td><td>13-711-9AM</td><td></td></tr><tr><td>fluorescence microscope</td><td>Zeiss</td><td></td><td>Axio Imager.Z1</td></tr></tbody></table>

methods to examine the lymph gland and hemocytes in drosophila larvae

Many parallels exist between the Drosophila and mammalian hematopoietic systems, even though Drosophila lack the lymphoid lineage that characterize mammalian adaptive immunity. Drosophila and mammalian hematopoiesis occur in spatially and temporally distinct phases to produce several blood cell lineages. Both systems maintain reservoirs of blood cell progenitors with which to expand or replace mature lineages. The hematopoietic system allows Drosophila and mammals to respond to and to adapt to immune challenges. Importantly, the transcriptional regulators and signaling pathways that control the generation, maintenance, and function of the hematopoietic system are conserved from flies to mammals. These similarities allow Drosophila to be used to genetically model hematopoietic development and disease.
Here we detail assays to examine the hematopoietic system of Drosophila larvae. In particular, we outline methods to measure blood cell numbers and concentration, visualize a specific mature lineage in vivo, and perform immunohistochemistry on blood cells in circulation and in the hematopoietic organ. These assays can reveal changes in gene expression and cellular processes including signaling, survival, proliferation, and differentiation and can be used to investigate a variety of questions concerning hematopoiesis. Combined with the genetic tools available in Drosophila, these assays can be used to evaluate the hematopoietic system upon defined genetic alterations. While not specifically outlined here, these assays can also be used to examine the effect of environmental alterations, such as infection or diet, on the hematopoietic system.

Circulating Hemocyte Concentration
Hemocyte numbers increase throughout larval development35. To illustrate that this method detects differences in hemocyte numbers and concentration, regardless of the biological cause, we measured hemocyte concentrations of delayed and non-delayed larvae. Loss of prothoracicotropic hormone (ptth) by genetic ablation of ptth-producing neurons (ptth&#62;grim) produces a delay in larval development36. For each genotype, hemocyte concentrations were measured as described in Protocol 1 for at least 8 individual larva raised at 25 &#176;C. At 120 hr after a 2 hr egg collection, the average hemocyte concentration per delayed larva (ptth&#62;grim) is less than the average hemocyte concentration per control larva (ptth). Only after 9 days does the average hemocyte concentration per delayed larva approach that of controls (Figure 1B). Another example in which this method is used to detect differences in hemocyte concentrations has been published37.
Images taken from an automated cell counter show a clean, desirable hemolymph sample and a sample containing debris, which might lead to inaccurate measurement (Figure 1C). Minimum and maximum cell sizes were set to 2 &#181;m and 22 &#181;m, respectively. Circularity was set to 75-80% roundness. These parameters are intended as guidelines and should be empirically optimized.
Circulating Hemocyte Immunohistochemistry
Circulating hemocytes expressing green fluorescent protein (GFP) were collected, fixed, and incubated with a mixture of plasmatocyte-specific antibodies (P1a and P1b, Istv&#225;n And&#243;)31 as described in Protocol 2 (Figure 2). The image was taken on a standard fluorescence microscope and is shown unaltered and after constrained iterative deconvolution. In this instance, deconvolution did not drastically improve the image quality.
In Vivo Crystal Cell Melanization
Larvae were placed at the bottom of PCR tubes prior to heat-induced crystal cell melanization as described in Protocol 3 (Figure 3A). Red arrows indicate tubes in which larvae are too far from the bottom and might be heated unevenly. Uneven distribution of heat across individual larva can increase variability in the melanization of crystal cells within the larva.
A wild-type larva imaged on a standard stereomicroscope shows the typical pattern of melanized crystal cells in sessile clusters after heat exposure (Figure 3B). Melanized crystal cells in the lymph gland are sometimes seen.
Larval Lymph Gland Immunohistochemistry
Third instar larval lymph glands were dissected, fixed, and mounted as described in Protocol 4. A differential interference contrast (DIC) image taken on a standard fluorescence microscope shows the primary and secondary lymph gland lobes flanking the dorsal vessel (Figure 4A).
A lymph gland in which the medullary zone and the posterior signaling center were genetically marked with enhanced blue fluorescent protein (EBFP2) and GFP, respectively, was stained with an antibody against the Notch intracellular domain (C17.9C6, Developmental Studies Hybridoma Bank) as described in Protocol 4. Z-stack images were taken on a standard fluorescence microscope. A single maximum intensity projection image appears unaltered and after constrained iterative deconvolution (Figure 4B). In this instance, deconvolution drastically improved the quality and detail of the image.
<img alt="Figure 1" src="/files/ftp_upload/54544/54544fig1.jpg" />
Figure 1. Circulating Hemocyte Concentration. A) A portion of standard Drosophila medium was removed (right) to promote egg laying during a 2 hr egg collection period. B) The average hemocyte concentration per developmentally delayed larva (ptth&#62;grim) was lower than the average hemocyte concentration per control larvae (ptth) 120 hr after egg laying (AEL). The average hemocyte concentration per delayed larva approached control level 9 days AEL. Error bars represent &#177; s.e.m. C) Hemolymph samples without (left) and with (right) debris. Scale bars represent 0.1 mm. <a href="https://cloudflare-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/54544/54544fig1large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
<img alt="Figure 2" src="/files/ftp_upload/54544/54544fig2.jpg" />
Figure 2. Circulating Hemocyte Immunohistochemistry. Hemocytes genetically expressing GFP were collected and fixed to a coverslip. A plasmatocyte-specific antibody was used to stain plasmatocytes (red). DAPI staining is shown in blue. Unaltered image taken with a fluorescence microscope (left). The same image after deconvolution (right). Scale bars represent 50 &#181;m. <a href="https://cloudflare-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/54544/54544fig2large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
<img alt="Figure 3" src="/files/ftp_upload/54544/54544fig3.jpg" />
Figure 3. In Vivo Crystal Cell Melanization. A) Larvae were placed individually in PCR tubes prior to heating. Red arrows indicate larvae that are not at the bottom of the tubes. B) A typical crystal cell melanization pattern after heating, which sometimes reveals the lymph gland (arrow; dorsal side shown, anterior is left). Scale bar represents 1 mm. <a href="https://cloudflare-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/54544/54544fig3large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
<img alt="Figure 4" src="/files/ftp_upload/54544/54544fig4.jpg" />
Figure 4. Larval Lymph Gland Immunohistochemistry. A) A DIC image of a third instar larval lymph gland showing the dorsal vessel (dv), primary lobes (1&#176;), and secondary lobes (2&#176;). Scale bar represents 100 &#181;m. B) A representative third instar larval lymph gland from a larva genetically expressing EBFP2 in the medullary zone and GFP in the posterior signaling center. The lymph gland was stained with an antibody against the Notch intracellular domain (red). Unaltered image taken with a fluorescence microscope (top). The same image after deconvolution (bottom). Scale bars represent 20 &#181;m. <a href="https://cloudflare-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/54544/54544fig4large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>

Watch this Scientific Journal Video about Methods to Examine the Lymph Gland and Hemocytes in Drosophila Larvae at JoVE.com

Methods to Examine the Lymph Gland and Hemocytes in Drosophila Larvae

Drosophila and mammalian hematopoietic systems share many common features, making Drosophila an attractive genetic model to study hematopoiesis. Here we demonstrate dissection and mounting of the major larval hematopoietic organ for immunohistochemistry. We also describe methods to assay various larval hematopoietic compartments including circulating hemocytes and sessile crystal cells.

Methods to Examine the Lymph Gland and Hemocytes in Drosophila Larvae

Many parallels exist between the Drosophila and mammalian hematopoietic systems, even though Drosophila lack the lymphoid lineage that characterize ...

methods-to-examine-the-lymph-gland-and-hemocytes-in-drosophila-larvae

Nanyang Technological University

Research

JoVE Journal

Developmental Biology

12.7K Views.  The Icahn School of Medicine at Mount Sinai. Drosophila and mammalian hematopoietic systems share many common features, making Drosophila an attractive genetic model to study hematopoiesis. Here we demonstrate dissection and mounting of the major larval hematopoietic organ for immunohistochemistry. We also describe methods to assay various larval hematopoietic compartments including circulating hemocytes and sessile crystal cells.

Video: Methods to Examine the Lymph Gland and Hemocytes in Drosophila Larvae

Assaying Blood Cell Populations of the Drosophila melanogaster Larva

In vertebrates, hematopoiesis is regulated by inductive microenvironments (niches). Likewise, in the invertebrate model organism&#160;Drosophila melanogaster, inductive microenvironments known as larval Hematopoietic Pockets (HPs) have been identified as anatomical sites for the development and regulation of blood cells (hemocytes), in particular of the self-renewing macrophage lineage.&#160;HPs are segmentally repeated pockets between the epidermis and muscle layers of the larva, which also comprise sensory neurons of the peripheral nervous system. In the larva, resident (sessile) hemocytes are exposed to anti-apoptotic, adhesive and proliferative cues from these sensory neurons and potentially other components of the HPs, such as the lining muscle and epithelial layers. During normal development, gradual release of resident hemocytes from the HPs fuels the population of circulating hemocytes, which culminates in the release of most of the resident hemocytes at the beginning of metamorphosis. Immune assaults, physical injury or mechanical disturbance trigger the premature release of resident hemocytes into circulation. The switch of larval hemocytes between resident locations and circulation raises the need for a common standard/procedure to selectively isolate and quantify these two populations of blood cells from single Drosophila larvae. Accordingly, this protocol describes an automated method to release and quantify the resident and circulating hemocytes from single larvae. The method facilitates ex vivo approaches, and may be adapted to serve a variety of developmental stages of Drosophila and other invertebrate organisms.

Assaying Blood Cell Populations of the Drosophila melanogaster Larva

Drosophila blood cells, or hemocytes, cycle between resident sites and circulation. In the larva, resident (sessile) hemocytes localize to inductive microenvironments, the Hematopoietic Pockets, while circulating hemocytes move freely in the hemolymph. The goal of this protocol is the standardized isolation and quantification of these two, behaviorally distinct but interchanging, hemocyte populations.

In vertebrates, hematopoiesis is regulated by inductive microenvironments (niches). Likewise, in the invertebrate model organism&#160;Drosophila ...

An Introduction to Parasitic Wasps of Drosophila and the Antiparasite Immune Response

Most known parasitoid wasp species attack the larval or pupal stages of Drosophila. While Trichopria drosophilae infect the pupal stages of the host (Fig. 1A-C), females of the genus Leptopilina (Fig. 1D, 1F, 1G) and Ganaspis (Fig. 1E) attack the larval stages. We use these parasites to study the molecular basis of a biological arms race. Parasitic wasps have tremendous value as biocontrol agents. Most of them carry virulence and other factors that modify host physiology and immunity. Analysis of Drosophila wasps is providing insights into how species-specific interactions shape the genetic structures of natural communities. These studies also serve as a model for understanding the hosts' immune physiology and how coordinated immune reactions are thwarted by this class of parasites.
The larval/pupal cuticle serves as the first line of defense. The wasp ovipositor is a sharp needle-like structure that efficiently delivers eggs into the host hemocoel. Oviposition is followed by a wound healing reaction at the cuticle (Fig. 1C, arrowheads). Some wasps can insert two or more eggs into the same host, although the development of only one egg succeeds. Supernumerary eggs or developing larvae are eliminated by a process that is not yet understood. These wasps are therefore referred to as solitary parasitoids.
Depending on the fly strain and the wasp species, the wasp egg has one of two fates. It is either encapsulated, so that its development is blocked (host emerges; Fig. 2 left); or the wasp egg hatches, develops, molts, and grows into an adult (wasp emerges; Fig. 2 right). L. heterotoma is one of the best-studied species of Drosophila parasitic wasps. It is a "generalist," which means that it can utilize most Drosophila species as hosts1. L. heterotoma and L. victoriae are sister species and they produce virus-like particles that actively interfere with the encapsulation response2. Unlike L. heterotoma, L. boulardi is a specialist parasite and the range of Drosophila species it utilizes is relatively limited1. Strains of L. boulardi also produce virus-like particles3 although they differ significantly in their ability to succeed on D. melanogaster1. Some of these L. boulardi strains are difficult to grow on D. melanogaster1 as the fly host frequently succeeds in encapsulating their eggs. Thus, it is important to have the knowledge of both partners in specific experimental protocols.
In addition to barrier tissues (cuticle, gut and trachea), Drosophila larvae have systemic cellular and humoral immune responses that arise from functions of blood cells and the fat body, respectively. Oviposition by L. boulardi activates both immune arms1,4. Blood cells are found in circulation, in sessile populations under the segmented cuticle, and in the lymph gland. The lymph gland is a small hematopoietic organ on the dorsal side of the larva. Clusters of hematopoietic cells, called lobes, are arranged segmentally in pairs along the dorsal vessel that runs along the anterior-posterior axis of the animal (Fig. 3A). The fat body is a large multifunctional organ (Fig. 3B). It secretes antimicrobial peptides in response to microbial and metazoan infections.
Wasp infection activates immune signaling (Fig. 4)4. At the cellular level, it triggers division and differentiation of blood cells. In self defense, aggregates and capsules develop in the hemocoel of infected animals (Fig. 5)5,6. Activated blood cells migrate toward the wasp egg (or wasp larva) and begin to form a capsule around it (Fig. 5A-F). Some blood cells aggregate to form nodules (Fig. 5G-H). Careful analysis reveals that wasp infection induces the anterior-most lymph gland lobes to disperse at their peripheries (Fig. 6C, D).
We present representative data with Toll signal transduction pathway components Dorsal and Sp&auml;tzle (Figs. 4,5,7), and its target Drosomycin (Fig. 6), to illustrate how specific changes in the lymph gland and hemocoel can be studied after wasp infection. The dissection protocols described here also yield the wasp eggs (or developing stages of wasps) from the host hemolymph (Fig. 8).

An Introduction to Parasitic Wasps of Drosophila and the Antiparasite Immune Response

Parasitoid (parasitic) wasps constitute a major class of natural enemies of many insects including Drosophila melanogaster. We will introduce the techniques to propagate these parasites in Drosophila spp. and demonstrate how to analyze their effects on immune tissues of Drosophila larvae.

Most known parasitoid wasp species attack the larval or pupal stages of Drosophila. While Trichopria drosophilae infect the pupal stages of the host (Fig. ...

Immunology and Infection

Functional Analysis of the Larval Feeding Circuit in Drosophila

The serotonergic feeding circuit in Drosophila melanogaster larvae can be used to investigate neuronal substrates of critical importance during the development of the circuit. Using the functional output of the circuit, feeding, changes in the neuronal architecture of the stomatogastric system can be visualized. Feeding behavior can be recorded by observing the rate of retraction of the mouth hooks, which receive innervation from the brain. Locomotor behavior is used as a physiological control for feeding, since larvae use their mouth hooks to traverse across an agar substrate. Changes in feeding behavior can be correlated with the axonal architecture of the neurites innervating the gut. Using immunohistochemistry it is possible to visualize and quantitate these changes. Improper handling of the larvae during behavior paradigms can alter data as they are very sensitive to manipulations. Proper imaging of the neurite architecture innervating the gut is critical for precise quantitation of number and size of varicosities as well as the extent of branch nodes. Analysis of most circuits allow only for visualization of neurite architecture or behavioral effects; however, this model allows one to correlate the functional output of the circuit with the impairments in neuronal architecture.

Functional Analysis of the Larval Feeding Circuit in Drosophila

The feeding circuit in Drosophila melanogaster larvae serves a simple yet powerful model that allows changes in feeding rate to be correlated with alterations in the stomatogastric neural circuitry. This circuit is composed of central serotonergic neurons that send projections to the mouth hooks as well as the foregut.

The serotonergic  feeding circuit in Drosophila  melanogaster larvae can be used to investigate neuronal substrates of  critical importance during the ...

Neuroscience

Live Imaging Of Drosophila melanogaster Embryonic Hemocyte Migrations

Many studies address cell migration using in vitro methods, whereas the physiologically relevant environment is that of the organism itself. Here we present a protocol for the mounting of Drosophila melanogaster embryos and subsequent live imaging of fluorescently labeled hemocytes, the embryonic macrophages of this organism. Using the Gal4-uas system1 we drive the expression of a variety of genetically encoded, fluorescently tagged markers in hemocytes to follow their developmental dispersal throughout the embryo. Following collection of embryos at the desired stage of development, the outer chorion is removed and the embryos are then mounted in halocarbon oil between a hydrophobic, gas-permeable membrane and a glass coverslip for live imaging. In addition to gross migratory parameters such as speed and directionality, higher resolution imaging coupled with the use of fluorescent reporters of F-actin and microtubules can provide more detailed information concerning the dynamics of these cytoskeletal components.

Live Imaging Of Drosophila melanogaster Embryonic Hemocyte Migrations

Drosophila hemocytes disperse over the entirety of the developing embryo. This protocol demonstrates how to mount and image these migrations using embryos with fluorescently labelled hemocytes.

Many studies address cell migration using in vitro methods, whereas the physiologically relevant environment is that of the organism itself. Here we ...

Biology

Extraction of Hemocytes from Drosophila melanogaster Larvae for Microbial Infection and Analysis

During the pathogenic infection of Drosophila melanogaster, hemocytes play an important role in the immune response throughout the infection. Thus, the goal of this protocol is to develop a method to visualize the pathogen invasion in a specific immune compartment of flies, namely hemocytes. Using the method presented here, up to 3 &#215; 106 live hemocytes can be obtained from 200 Drosophila 3rd instar larvae in 30 min for ex vivo infection. Alternatively, hemocytes can be infected in vivo through injection of 3rd instar larvae followed by hemocyte extraction up to 24 h post-infection. These infected primary cells were fixed, stained, and imaged using confocal microscopy. Then, 3D representations were generated from the images to definitively show pathogen invasion. Additionally, high-quality RNA for qRT-PCR can be obtained for the detection of pathogen mRNA following infection, and sufficient protein can be extracted from these cells for Western blot analysis. Taken together, we present a method for definite reconciliation of pathogen invasion and confirmation of infection using bacterial and viral pathogen types and an efficient method for hemocyte extraction to obtain enough live hemocytes from Drosophila larvae for ex vivo and in vivo infection experiments.

Extraction of Hemocytes from Drosophila melanogaster Larvae for Microbial Infection and Analysis

This method demonstrates how to visualize pathogen invasion into insect cells with three-dimensional (3D) models. Hemocytes from Drosophila larvae were infected with viral or bacterial pathogens, either ex vivo or in vivo. Infected hemocytes were then fixed and stained for imaging with a confocal microscope and subsequent 3D cellular reconstruction.

During the pathogenic infection of Drosophila melanogaster, hemocytes play an important role in the immune response throughout the infection. Thus, the ...

Assessing the Age-Specific Phagocytic Ability of Adult Drosophila melanogaster Hemocytes using an In Vivo Phagocytosis Assay

Phagocytosis is an essential function of the innate immune response. This process is carried out by phagocytic hemocytes whose primary function is to recognize a wide range of particles and destroy microbial pathogens. As organisms age, this process begins to decline, yet little is known about the underlying mechanisms or the genetic basis of immunosenescence. Here, an injection based in vivo phagocytosis assay is used to assess age related changes in different aspects of phagocytosis, such as binding, engulfment, and degradation of internalized particles, by quantifying phagocytic events in hemocytes in adult Drosophila. Drosophila melanogaster has become an ideal model to investigate age related changes in innate immune function for many reasons. For one, many genetic components and functions of the innate immune response, including phagocytosis, are evolutionarily conserved between Drosophila and mammals. Because of that, results obtained from using this protocol are likely to be widely relevant to understanding the age related changes in immune function in a variety of organisms. Additionally, we note that this method provides quantitative estimates of hemocyte phagocytic ability, which could be useful for a variety of research topics, and need not be limited to studies of aging.

Assessing the Age-Specific Phagocytic Ability of Adult Drosophila melanogaster Hemocytes using an In Vivo Phagocytosis Assay

This protocol describes an in vivo assay of phagocytosis used to assess and quantify the ability of young and aged Drosophila melanogaster hemocytes to phagocytose bacteria.

Phagocytosis is an essential function of the innate immune response. This process is carried out by phagocytic hemocytes whose primary function is to ...

Drosophila Larval IHC

Immunohistochemistry (IHC) is a technique used to visualize the presence and location of proteins within tissues. Drosophila larvae are particularly amenable to IHC because of the ease with which they can be processed for staining. Additionally, the larvae are transparent, meaning that some tissues can be visualized without the need for dissection.
In IHC, proteins are ultimately detected with antibodies that specifically bind to &ldquo;epitopes&rdquo; within the protein of interest. In order to preserve these epitopes, tissues must be fixed prior to staining. Furthermore, in order for antibodies to penetrate membranes, cells must be permeabilized with detergents. This video article offers a detailed view of the reagents, tools, and procedures necessary for the staining of dissected larval tissues, including fixation, blocking, and staining steps. Also featured is a demonstration of tissue mounting techniques for fluorescence microscopy. Finally, examples of the broad range of applications for these techniques (and some variations upon them) are provided.

Drosophila melanogaster Larval Immunohistochemistry IHC

Immunohistochemistry (IHC) is a technique used to visualize the presence and location of proteins within tissues. Drosophila larvae are particularly ...

Education

JoVE Science Education

Basic Biology

Biology I: yeast, Drosophila and C. elegans

Cuticle Disruption: A Method to Collect Hemolymph from Drosophila Larvae

Source: Reimels, T. A. and Pfleger, C. M. <a href="https://www-jove-com.bdigitaluss.remotexs.co/video/54544/" target="_blank">Methods to Examine the Lymph Gland and Hemocytes in Drosophila Larvae</a>. J. Vis. Exp. (2016).
The Drosophila hemolymph serves as both blood and interstitial fluid, circulating throughout the body during the larva and adult stages. This video describes a protocol to collect larval hemolymph in order to quantify the circulating cells.

Source: Reimels, T. A. and Pfleger, C. M. Methods to Examine the Lymph Gland and Hemocytes in Drosophila Larvae. J. Vis. Exp. (2016).
The Drosophila ...

JoVE Encyclopedia of Experiments

Drosophila melanogaster (fruit fly)

Larva

Lipid Droplet Staining of Larval Drosophila Oenocytes: A Technique for Assessment of Lipid Droplet Accumulation Under Normal and Stressed Condition Using BODIPY-Based Dye

Source: Wei, C., et al., <a href="https://www-jove-com.bdigitaluss.remotexs.co/v/60606">Dissection and Lipid Droplet Staining of Oenocytes in Drosophila Larvae.</a> J. Vis. Exp. (2019).
This video demonstrates lipid droplet staining in Drosophila larval oenocytes - hepatocyte-like cells - using the lipophilic fluorescent BODIPY based dye. These cells act as a model for studying lipid metabolism during development and in response to environmental stress such as starvation.

Source: Wei, C., et al., Dissection and Lipid Droplet Staining of Oenocytes in Drosophila Larvae. J. Vis. Exp. (2019).
This video demonstrates lipid ...

Biological Techniques

Staining Techniques

Cell staining

Larval Lymph Gland Dissection: Isolating the Drosophila Hemocyte-Producing Organ

Source: Reimels, T. A. and Pfleger, C. M. <a href="https://www-jove-com.bdigitaluss.remotexs.co/video/54544/" target="_blank">Methods to Examine the Lymph Gland and Hemocytes in Drosophila Larvae</a>. J. Vis. Exp. (2016).
This video describes the Drosophila lymph gland&#8212;the primary site of hematopoiesis in the fly larva&#8212;and shows an example protocol to dissect and mount the organ for immunohistochemistry and fluorescent imaging.

Source: Reimels, T. A. and Pfleger, C. M. Methods to Examine the Lymph Gland and Hemocytes in Drosophila Larvae. J. Vis. Exp. (2016).
This video describes ...

Methods to Examine the Lymph Gland and Hemocytes in Drosophila Larvae

Summary

Explore More Videos

Chapters in this video

Assaying Blood Cell Populations of the Drosophila melanogaster Larva

An Introduction to Parasitic Wasps of Drosophila and the Antiparasite Immune Response

Functional Analysis of the Larval Feeding Circuit in Drosophila

Live Imaging Of Drosophila melanogaster Embryonic Hemocyte Migrations

Extraction of Hemocytes from Drosophila melanogaster Larvae for Microbial Infection and Analysis

Assessing the Age-Specific Phagocytic Ability of Adult Drosophila melanogaster Hemocytes using an In Vivo Phagocytosis Assay

Drosophila Larval IHC

Cuticle Disruption: A Method to Collect Hemolymph from Drosophila Larvae

Lipid Droplet Staining of Larval Drosophila Oenocytes: A Technique for Assessment of Lipid Droplet Accumulation Under Normal and Stressed Condition Using BODIPY-Based Dye

Larval Lymph Gland Dissection: Isolating the Drosophila Hemocyte-Producing Organ
