The frequency response of a circuit, which characterizes its behavior with varying signal frequency, can be analyzed using the transfer or network ...

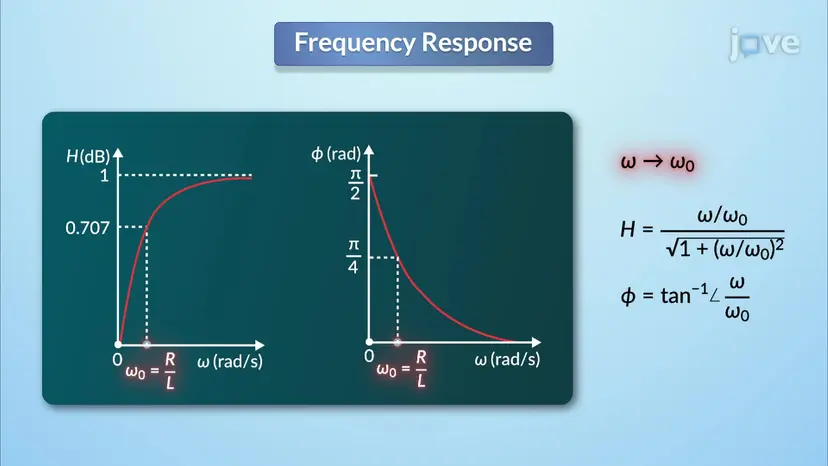

Consider an inductive circuit in the time domain. The equivalent frequency domain circuit is obtained by replacing the resistance and inductance with ...

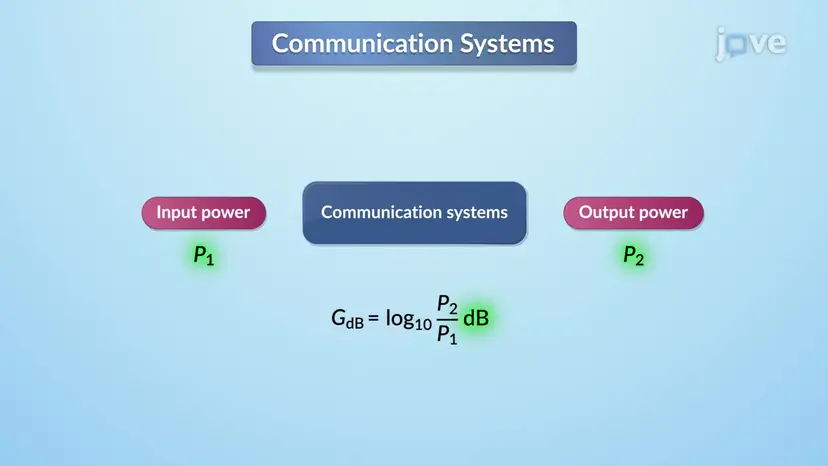

In communication systems, gain quantifies the extent of signal amplification or attenuation. Power gain denotes the common logarithm of the ratio of ...

Consider an electrocardiogram unit that utilizes a low-pass filter with a complex network function represented by its magnitude and phase angle. The ...

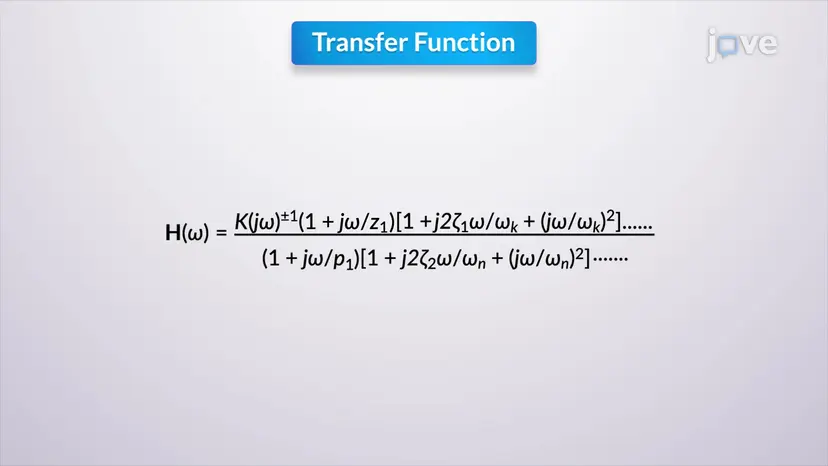

Consider the transfer function of a system expressed in standard form. The transfer function has a constant gain, a zero and a pole at the origin, a ...

Consider the transfer function in its standard form, with poles and zeros For a transfer function with a simple zero, the magnitude gain at small ...

Tissue electrodes in electrocardiograms (E-C-G) establish a conductive pathway for electrical currents between the tissues and the measuring electrodes, ...

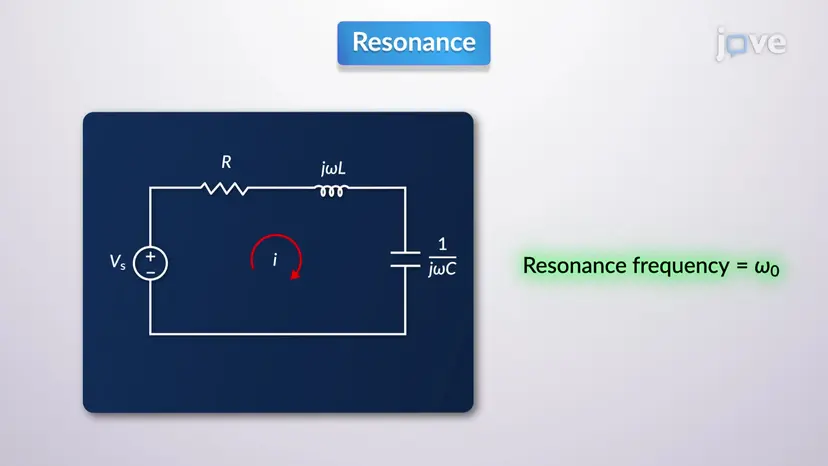

Consider a radio tuner that precisely selects a signal of a particular frequency. The tuner consists of a series-connected resistor, capacitor, and ...

Consider a radio transmitter unit that incorporates an RLC series resonance band-pass filter. This circuit's frequency response indicates that the ...

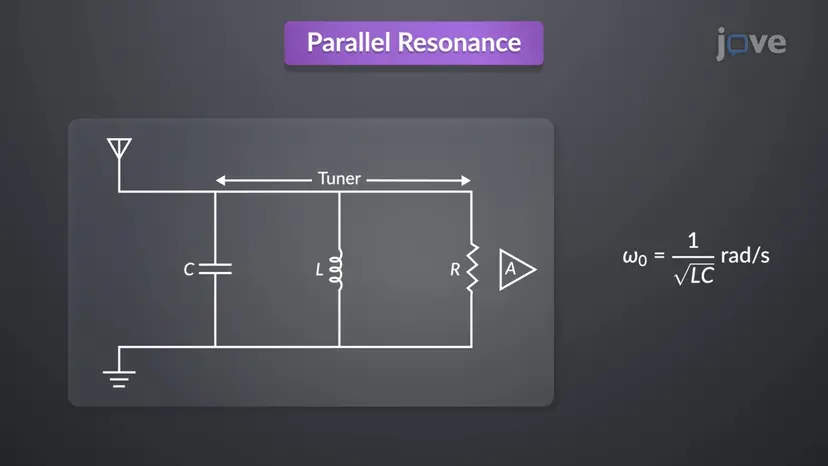

Consider an AM radio tuner comprising a parallel connection of a resistor, capacitor, and inductor, which collectively contribute to the circuit's ...

Consider a guitar pickup connected to a buffer amplifier. This buffer amplifier, with a non-inverting op-amp, bridges the guitar's high impedance and ...

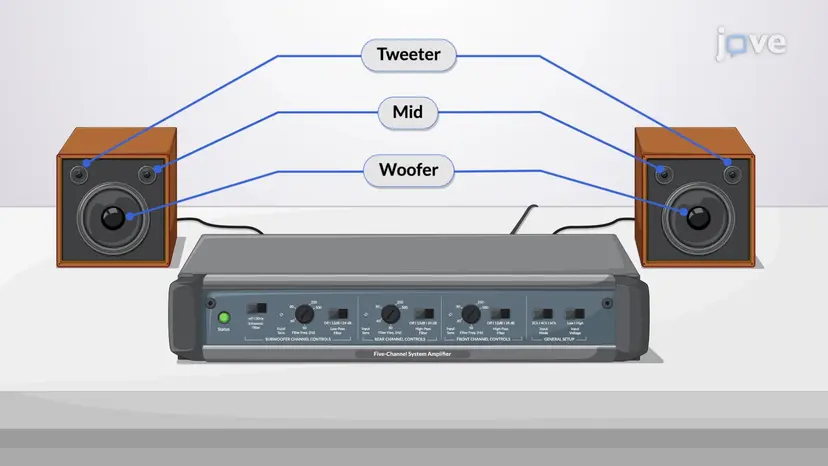

Consider an audio speaker system with filter circuits. These circuits selectively pass desired frequencies while attenuating others, limiting signals to a ...

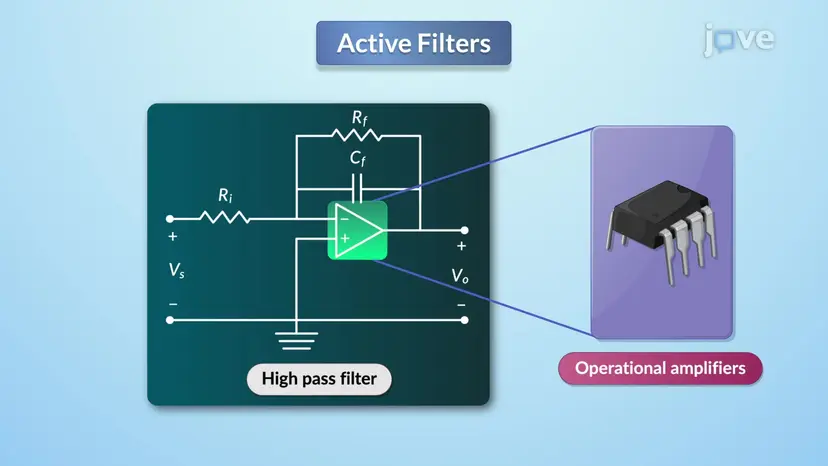

Certain passive filters incorporate expensive inductors designed not to exceed unity gain. These filters may exhibit reduced attenuation efficacy at ...

Magnitude and frequency scaling simplifies filter design by calibrating filter responses and circuit parameters to fit within usable ranges. Magnitude ...

An engineer designs a circuit for a speaker system with a 2 kHz crossover frequency requirement, considering the speaker's resistance of 8 ohms. The ...
