This work was supported by the NSF under award MCB-1330685. DWM acknowledges partial support from Cornell University&#39;s Molecular Biophysics Training Grant (NIH T32GM0082567).

CAUTION: Please consult all relevant material safety data sheets (MSDS) before use. Please use all appropriate safety practices when using compressed gases, including appropriate calibrated gas handling regulators and valves, and approved gas tubing. Contact with liquid cryogens can cause&#160; severe frostbite and necrosis. Use appropriate personal protective equipment (face shield, gloves, lab coat, full length pants, closed-toe shoes), all of which must be impermeable to liquid nitrogen. Remain standing and ensure an unobstructed exit path from the apparatus when using liquid cryogens. Be aware of asphyxiation hazards when using compressed gases and liquid cryogens, and work in a well-ventilated area with adequate make-up air (a fume hood or a high air turnover rate room.)
1. Preparation of Aqueous Solutions for Density Measurements
NOTE: Because weights are more easily measured to a high accuracy than volumes, solution concentrations are measured in w/w units. All densities and melting or boiling temperatures assume an atmospheric pressure of ~100 kPa. The following steps describe the preparation of a 35% w/w glycerol solution. The same procedure can be used for other concentrations and solutes.
<ol>
	<li>For each solute type and concentration of interest, roughly estimate the required solute mass to obtain the desired final concentration (e.g., between 25% w/w and 100% w/w) for a total solution volume, Vtot = 10 mL solution volume. For example, for a 35% w/w glycerol solution (&#961;s = 1.26 g/mL), the solute mass, ms is:
	<img alt="Equation" src="/files/ftp_upload/55761/55761eq1.jpg" />
	where x is the solute mass fraction (0.35) and &#961;w= 1 g/mL is the density of water.</li>
	<li>Place a 15 mL centrifuge tube (or other volume-calibrated water-impermeable container) on the pan of an analytical microbalance. Dispense the desired mass of solute/cryoprotectant (e.g., 3.77 g glycerol for a 35% w/w solution) into the tube, and record the actual solute mass.</li>
	<li>Add high purity (&#62;18 M&#937;) deionized water to bring the total mass up to 10.0 g</li>
	<li>Vortex the container for 30 s (for liquid solutes) or 5 min (for solid solutes), until the solution is optically homogeneous.</li>
	<li>Measure and record the final mass of the solution. Seal the container with an airtight cap and store at constant temperature (293-298 K).</li>
</ol>
2. Preparation of the Sample Cooling Chamber
<ol>
	<li>Place the experimental apparatus described below in an enclosure and flow dry air (&#62;5% relative humidity (r.h.)) into the enclosure.
	NOTE: The enclosure may be a simple metal frame with its top and three sides sealed with clear plastic sheet and with experiment access via a fourth side covered with flexible plastic sheet. Wear face shields and full body covering to minimize moisture introduced by the experimenter. Moisture condensation and ice formation can interfere with cryogenic temperature density measurements in several ways, and so it must be minimized.</li>
	<li>Place a disk of neoprene rubber on the bottom of a 4.5 L glass Dewar flask, to protect the Dewar flask from damage.</li>
	<li>Carefully insert a high thermal conductivity copper chamber (a hollow cylinder with a sealed bottom) into the flask until it rests on the rubber disk. Adjust struts projecting outward from the chamber to the Dewar walls so that the chamber is centered and has no tendency to rock.
	NOTE: The Dewar flask will hold liquid nitrogen, and the much smaller volume copper chamber will hold a liquid N2-Ar mixture. The liquid nitrogen provides a thermal bath that maintains the copper chamber and its contents at a constant temperature of 77 K and reduces boiling and evaporative losses in the chamber. The chamber&#39;s small diameter suppresses surface waves that can interfere with buoyancy measurements, and helps isolate the liquid within the chamber from frost and ice formed elsewhere in the apparatus.</li>
	<li>Insert the outlet of a gas tube with dry N2 gas flowing at ~2 L/min down to the bottom of the copper chamber, and purge the chamber of moist air.</li>
	<li>Slowly pour liquid nitrogen into the Dewar flask, outside the copper chamber, allowing time for nitrogen boil-off.
	NOTE: The final fill level, after boiling has ceased, should be within approximately 4 cm of the top of the copper chamber.</li>
	<li>Cover the outer portion of the Dewar flask with an annular foam insulating lid. Remove the dry N2 gas purge tube from the copper chamber and insert into a matching opening in the lid.
	NOTE: The combination of N2 gas from boil-off in the Dewar flask and from the purge flow expels any moist air and prevents it from condensing and crystalizing on cold surfaces.</li>
	<li>Slowly pour liquid nitrogen into the copper chamber. The final fill level, after boiling has ceased, should be within approximately 4 cm of the top of the copper chamber.</li>
	<li>Place a thin, optically transparent plastic sheet over the central opening or vent in the lid, and reduce the N2 gas flow rate to ~0.2 L/min, leaving a slight overpressure of N2 gas within the gas spaces above the cryogenic liquids.
	NOTE: As long as cryogenic liquids are present in the Dewar and chamber, continue adjusting the N2 gas flow as needed to maintain this overpressure and prevent moisture from entering into the Dewar and forming ice.</li>
</ol>
3. Determination of the Volume and Density of the Test Mass at T = 298 K and T = 77 K
<ol>
	<li>Determine the apparent mass of a ~1 g, ~0.4 mL PTFE test mass (Table of Materials) in air at T= 298 K by placing it on the pan of a calibrated analytical microbalance.</li>
	<li>Determine the volume V(298 K) of the test mass at T = 298 K using a gas pycnometer, or by dimensional measurements using calipers. If using dimensional measurements, the test mass must have a simple, precise shape (no tapers or rounded corners) and the volume of the through-hole (for the suspending line) should be determined.</li>
	<li>Calculate the mass m of the test mass by correcting the measured apparent mass for the buoyant force exerted by air according to the following:
	<img alt="Equation" src="/files/ftp_upload/55761/55761eq2.jpg" />
	where &#961;air = 1.23 g/L (~0.1% correction).</li>
	<li>Place the microbalance on a stable platform roughly 10 cm above the Dewar flask and verify its calibration. Suspend the test mass using a 2 mil (50 &#956;m) monofilament line strung from the hook on the underside of the microbalance (designed for hanging mass measurements) and through a hole in the test mass. Determine the apparent mass in air, and compare with the measurement in step 3.3, correcting as needed for the mass of the line.</li>
	<li>Determine the volume V(77 K) of the test mass at T = 77 K by measuring its apparent mass in pure liquid nitrogen, mapp in LN2. Lower the test mass into the liquid nitrogen within the copper chamber until it is fully submerged. When boiling has ceased, measure the apparent mass.
	NOTE: If the liquid nitrogen in the copper chamber is quiescent and air currents between the microbalance and the liquid surface are minimal, this mass can be measured to greater than &#177; 0.0002 g accuracy.</li>
	<li>Estimate the buoyant force on the submerged portion of the line, and verify that it is small compared with measurement errors.</li>
	<li>Calculate the volume and density of the test mass at 77 K using its known mass m and the measured apparent mass in LN2 at 77 K, mapp in LN2, according to the following:
	<img alt="Equation" src="/files/ftp_upload/55761/55761eq3.jpg" />
	where &#961;LN2((77 K)=0.807 g/mL.</li>
</ol>
4. Preparation of the Initial Liquid N2-Ar Mixture
<ol>
	<li>Flow Ar gas at a flow rate of ~2 L/min through a coiled tube to its outlet. Place the coiled tube on top of the upper struts that stabilize the position of the copper chamber, just above the liquid nitrogen level and below the top surface of the Dewar. Cold N2 and Ar gas will build up above the cryogenic liquids, and thermal conduction, convection, and radiation will cool the tubing and the Ar gas within.</li>
	<li>After allowing the coiled tube to cool for 5 min, place the outlet of the tube in the copper chamber, at least 10 cm below the surface of the liquid nitrogen. Then cover the Dewar with the annular lid and transparent sheet.</li>
	<li>Adjust the Ar flow rate until Ar bubbles rise from the tube outlet to the top surface of the liquid nitrogen. Then reduce the flow rate until the bubbles form at the outlet but dissolve or liquefy just before breaking the liquid nitrogen surface.
	NOTE: As the Ar concentration in the copper chamber increases, periodically adjust the Ar flow rate as needed to maintain bubble formation. If the Ar flow rate is too low, the Ar may freeze inside the tube and block the flow.</li>
	<li>Add liquid nitrogen as needed to maintain its level in the surrounding Dewar. Remove ice as it accumulates on cold surfaces.</li>
	<li>Periodically mix the liquid by inserting a thin (e.g., 35 micron), circular sheet of copper foil attached to a thin insulating rod into the copper chamber, and slowly moving it up and down like a piston. This will reduce concentration gradients and the tendency for Ar to crystallize out of the solution.</li>
</ol>
5. Measuring and Adjusting the Density of the Initial N2-Ar Mixture
<ol>
	<li>Calculate the target density for the N2-Ar mixture by estimating the T =77 K density of the sample to be measured, e.g., measurements at higher concentrations of the sample&#39;s non-aqueous component.</li>
	<li>Attach the test mass using the monofilament line to the hook on the underside of the microbalance measuring pan, measure its apparent mass in air, and confirm agreement with the measurement in step 3.1.</li>
	<li>Mix the N2-Ar solution to eliminate concentration and density gradients as in step 4.5.</li>
	<li>Precool the test mass to T = 77 K by lowering it into the liquid nitrogen outside the copper chamber. Raise the test mass into the cold layer of nitrogen gas above the liquid nitrogen, wait for residual liquid nitrogen to evaporate off the test mass, and then lower the cold, dry test mass into the N2-Ar mixture until it is fully submerged and within 2 cm of the liquid surface.</li>
	<li>After any boiling and surface waves have disappeared, measure the apparent mass of the test mass. Calculate the solution density using its true mass m and T = 77 K volume V(77K) from step 3.7 according to the following:
	<img alt="Equation" src="/files/ftp_upload/55761/55761eq4.jpg" /></li>
	<li>Increase the solution density by flowing additional Ar until the desired initial density is obtained. Sample drops that sink can easily be lost, so the initial density should be at least a few percent higher than the expected sample density. The sample will then float, making it easier to keep track of it, and the N2-Ar mixture density will then only need to be adjusted downward by adding liquid N2.</li>
	<li>Remove the Ar precooling coiled tube and allow to warm and dry before next use.</li>
</ol>
6. Cooling Drops of Sample Solution
<ol>
	<li>Immediately prior to drop dispensing and cooling, repeat step 1.5 to mix the nitrogen/argon cryogenic liquid. Be careful not to introduce any bubbles.</li>
	<li>Remove the sample tube&#39;s airtight cap. Using a clean 1 mL syringe, extract up to 1 mL of solution, and replace the cap. Attach a 27 to 33 G needle onto the syringe, and then push a small amount of sample through the needle to expel air and any residues from previous dispensing.</li>
	<li>Two methods may be used to project sample drops into the N2-Ar mixture.
	<ol>
		<li>For samples with large non-aqueous component concentrations (&#62;45% w/w) that can be vitrified with modest cooling rates, lightly press the syringe to displace a small (250 &#956;m to 1 mm) diameter, ~10 nL to 1 &#956;L drop that hangs from the needle tip by surface tension. Gently tap the needle to detach and project the drop toward the liquid N2-Ar mixture.</li>
		<li>For samples that require faster cooling for vitrification, place the outlet of a gas tube connected to a vacuum generator (supplied by lab compressed air) in the gas space above the liquid N2-Ar mixture, and gently suction away the cold gas layer that forms. This increases cooling rates for small samples11.
		<ol>
			<li>Carefully touch the needle tip to a 25-75 &#956;m thick clear polymer strip to dispense a small volume (&#60;10 nL, corresponding to a drop diameter &#60;200 &#956;m) of sample.
			NOTE: To obtain the smallest, most nearly spherical, and most easily removed drops, soak the strip in a hydrophobic coating solution for 10 min and let dry prior to sample dispensing.</li>
			<li>Grab the strip using an attached plastic or wood rod, and manually plunge the rod plus the strip into the liquid N2-Ar mixture.</li>
			<li>Once the drop has solidified and boiling has ceased, grab the strip edge opposite the rod using tweezers. Flex the strip, keeping it immersed in the liquid N2-Ar, until the sample drop pops off and floats to the surface.</li>
		</ol>
		</li>
	</ol>
	</li>
</ol>
7. Assessment of the State of the Sample
<ol>
	<li>Using a long working distance (5-10 cm) binocular microscope and bright, cool illumination from an LED or fiber optic illuminator, carefully examine the drop while keeping it immersed in the liquid N2-Ar. Vitrified drops should appear clear12,13. Reject drops that are hazy or cloudy (likely containing more than one phase) and/or that show optical imperfections including cracks (which may be associated with voids that change the average density).
	NOTE: Painting the inside surface of the copper chamber to provide a black background can facilitate the identification of sample imperfections.</li>
</ol>
8. Determination of the Density of the Sample
<ol>
	<li>The dispensed drop will initially float, sink, or (rarely) be neutrally buoyant in the N2-Ar mixture. Floating drops may sometimes be held up by surface tension, tiny bubbles, or adhered ice particles. Inspect the entire drop surface with the microscope. Displace the drop downward from the liquid surface using a small (2-3 mm diameter, 10 cm long) precooled plastic or wood rod and observe its response.</li>
	<li>If the drop sinks, increase the density of the liquid N2-Ar using the procedure in step 4 until the drop becomes neutrally buoyant or floats.</li>
	<li>If the drop floats, decrease the density of the liquid N2-Ar by adding liquid nitrogen using a 1.8 mL cryovial. At large initial mixture densities (1.2-1.3 g/mL), adding N2 in 1 mL increments gives appreciable density changes, but this should be increased toward 5 mL at low densities (0.8-0.9 g/mL). Gently mix the N2-Ar (so as not to lose track of the sample drop) using the thin perforated copper foil sheet up-and-down in the copper chamber.</li>
	<li>After each N2 addition, use a small pre-cooled rod to gently displace the floating drop downward into the liquid, and observe its speed as it returns to the surface.</li>
	<li>When the solution density has been adjusted so that the drop appears to be neutrally buoyant or ascends very slowly (&#60;50 &#956;m/s will ensure ~0.1% or better density accuracy for drops with volumes down to 50 pL), measure the N2-Ar mixture density as described in step 5. Then add additional liquid N2 until the drop first begins to slowly sink, and measure the N2-Ar mixture density again. These two measurements will provide bounds on the drop density.</li>
</ol>

<ol>
	<li>Fahy, G. M., Wowk, B. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Principles+of+Cryopreservation+by+Vitrification.">Principles of Cryopreservation by Vitrification.</a> Cryopreservation and Freeze-Drying Protocols. , 21-82 (2015).</li><li>Nagy, Z. P., Nel-Themaat, L., Chang, C. -. C., Shapiro, D. B., Berna, D. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Cryopreservation+of+eggs.">Cryopreservation of eggs.</a> Human Fertility: Methods and Protocols. , 439-454 (2014).</li><li>Kriminski, S., Caylor, C. L., Nonato, M. C., Finkelstein, K. D., Thorne, R. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Flash+cooling+and+annealing+of+protein+crystals.">Flash cooling and annealing of protein crystals.</a> Acta Cryst Sect D. 58 (3), 459-471 (2002).</li><li>Juers, D. H., Matthews, B. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Reversible+lattice+repacking+illustrates+the+temperature+dependence+of+macromolecular+interactions.">Reversible lattice repacking illustrates the temperature dependence of macromolecular interactions.</a> J Mol Biol. 311 (4), 851-862 (2001).</li><li>Juers, D. H., Matthews, B. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Cryo-cooling+in+macromolecular+crystallography:+advantages,+disadvantages+and+optimization.">Cryo-cooling in macromolecular crystallography: advantages, disadvantages and optimization.</a> Q Rev Biophys. 37 (2), 105-119 (2004).</li><li>Alcorn, T., Juers, D. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Progress+in+rational+methods+of+cryoprotection+in+macromolecular+crystallography.">Progress in rational methods of cryoprotection in macromolecular crystallography.</a> Acta Cryst Sect D. 66 (4), 366-373 (2010).</li><li>Warkentin, M., Sethna, J., Thorne, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Critical+Droplet+Theory+Explains+the+Glass+Formability+of+Aqueous+Solutions.">Critical Droplet Theory Explains the Glass Formability of Aqueous Solutions.</a> Phys Rev Lett. 110 (1), 15703 (2013).</li><li>Kriminski, S., Kazmierczak, M., Thorne, R. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Heat+transfer+from+protein+crystals:+implications+for+flash-cooling+and+X-ray+beam+heating.">Heat transfer from protein crystals: implications for flash-cooling and X-ray beam heating.</a> Acta Cryst Sect D. 59 (4), 697-708 (2003).</li><li>Loerting, T., Bauer, M., Kohl, I., Watschinger, K., Winkel, K., Mayer, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Cryoflotation:+Densities+of+amorphous+and+crystalline+ices.">Cryoflotation: Densities of amorphous and crystalline ices.</a> J Phys Chem B. 115 (48), 14167-14175 (2011).</li><li>Shen, C., Julius, E. F., Tyree, T. J., Moreau, D. W., Thorne, R. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Thermal+contraction+of+aqueous+glycerol+and+ethylene+glycol+solutions+for+optimized+protein-crystal+cryoprotection+Thermal+contraction+of+aqueous+glycerol+and+ethylene+glycol+solutions+for+optimized+protein-crystal+cryoprotection.">Thermal contraction of aqueous glycerol and ethylene glycol solutions for optimized protein-crystal cryoprotection Thermal contraction of aqueous glycerol and ethylene glycol solutions for optimized protein-crystal cryoprotection.</a> Acta Cryst Sect D. 72 (6), 742-752 (2016).</li><li>Warkentin, M., Berejnov, V., Husseini, N. S., Thorne, R. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Hyperquenching+for+protein+cryocrystallography.">Hyperquenching for protein cryocrystallography.</a> J Appl Cryst. 39 (6), 805-811 (2006).</li><li>McFerrin, M. B., Snell, E. H. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+development+and+application+of+a+method+to+quantify+the+quality+of+cryoprotectant+solutions+using+standard+area-detector+X-ray+images.">The development and application of a method to quantify the quality of cryoprotectant solutions using standard area-detector X-ray images.</a> J Appl Cryst. 35 (5), 538-545 (2002).</li><li>Chinte, U., Shah, B., DeWitt, K., Kirschbaum, K., Pinkerton, A. A., Schall, C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sample+size:+An+important+parameter+in+flash-cooling+macromolecular+crystallization+solutions.">Sample size: An important parameter in flash-cooling macromolecular crystallization solutions.</a> J. Appl. Cryst. 38 (3), 412-419 (2005).</li><li>Bosart, L. W., Snoddy, A. O. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Specific+gravity+of+glycerol.">Specific gravity of glycerol.</a> Ind Eng Chem. 20 (12), 1377-1379 (1928).</li><li>Rodrigues, M., Francesconi, A. Z. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Experimental+study+of+the+excess+molar+volumes+of+binary+and+ternary+mixtures+containing+water+++(1,2-ethanediol,+or+1,2-propanediol,+or+1,3-propanediol,+or+1,2-butanediol)+++(1-n-butyl-3-methylimidazolium+bromide)+at+298.15+K+and+atmospheric+pressure.">Experimental study of the excess molar volumes of binary and ternary mixtures containing water + (1,2-ethanediol, or 1,2-propanediol, or 1,3-propanediol, or 1,2-butanediol) + (1-n-butyl-3-methylimidazolium bromide) at 298.15 K and atmospheric pressure.</a> J Solution Chem. 40 (11), 1863-1873 (2011).</li><li>Berejnov, V., Husseini, N. S., Alsaied, O. A., Thorne, R. E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Effects+of+cryoprotectant+concentration+and+cooling+rate+on+vitrification+of+aqueous+solutions.">Effects of cryoprotectant concentration and cooling rate on vitrification of aqueous solutions.</a> J Appl Cryst. 39 (2), 244-251 (2006).</li><li>Meisburger, S. P., Warkentin, M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Breaking+the+Radiation+Damage+Limit+with+Cryo-SAXS.">Breaking the Radiation Damage Limit with Cryo-SAXS.</a> Biophys J. 104 (1), 227-236 (2013).</li></ol>

The authors have nothing to disclose.

The present apparatus and methods, developed primarily by undergraduates with limited access to instrument-building tools and machinery, nevertheless delivers highly accurate density measurements for individual liquid drops as small as 50 pL. In the concentration range near and above 50% w/w, where small cooling rates are sufficient to obtain vitrified samples, the densities agree with those obtained in previous measurements on bulk samples. Extrapolations of the present densities to 0% concentration &#8211; pure water &...

The physical properties of water and aqueous mixtures in their various phases are of fundamental interest, and are important to in vivo and in vitro understanding of biological systems. In contemporary cryobiology and biological cryopreservation, the vitreous or amorphous phases of aqueous cryoprotectant mixtures are of particular interest1,2. Nucleation and growth of ice crystals can disrupt cells and tissues, and promote protein denaturation and aggregation, so cryopreservation protocols that vitrify the solvent have become increasingly popular. In biomolecular crystallography, the crystallization of solvent in the channels between biomolecules disrupts crystal lattices and degrades diffraction properties. Vitrification is achieved through a combination of rapid cooling, dehydration, and addition of cryoprotective solutes such as glycerol, ethylene glycol, polyethylene glycols (PEGs), alcohols, and salts.
Vitrification limits ice crystallization and growth, but does not eliminate all cooling-related sample damage. For example, crystal mosaicity (a measure of the distribution of crystal plane orientations) routinely increases by a factor of 10 to 100 when protein crystals are cooled into a vitrified state3, and post-thaw survival rates of vitrified sperm cells and oocytes vary widely.
One damage mechanism is differential contraction of solvent and surrounding material during cooling3,4,5. The equilibrium solvent and solute concentrations within a crystal, cell or tissue are temperature dependent, and the solvent plus the solute and surrounding material may contract by different amounts. Rapid cooling may prevent solvent and solute redistribution prior to vitrification, and differential contraction may lead to large, inhomogeneous, nonequilibrium stresses that cause sample damage.
Rational approaches to reducing cooling-induced damage could thus benefit from the knowledge of temperature-dependent densities of liquid and vitrified aqueous mixtures. At solute concentrations above 50% weight of solute to weight of solution (w/w), most aqueous cryoprotectant mixtures can be vitrified with modest cooling rates of 10 K/s or less, allowing production of and density measurements using large vitreous samples6. Density can then be determined using Archimedes&#39; principle, by measuring the apparent weight of the sample when suspended in a liquid cryogen like nitrogen. However, as solute concentration decreases, cooling rates required for vitrification increase rapidly: Cooling rates for aqueous glycerol mixtures increase from &#60;10 K/s at 50% weight of solute in g to volume of solution in mL (w/v) to &#62;1,000 K/s at 25% w/v7. Heat transfer becomes boundary-layer limited, so that achieving larger cooling rates requires smaller and smaller samples8.
Measurements of the density of pure vitreous water and ice have been achieved by depositing micrometer-diameter (femtoliter volume) drops in a vacuum onto a cryogenically-cooled surface so as to build up a macroscopic (gram mass) sample. The density of this sample was determined by cryoflotation in a liquid nitrogen-argon mixture, in which the density of the cryogenic liquid was adjusted until the sample became neutrally buoyant9. However, generating large samples from a large number of small drops in a way that minimizes void volumes &#8211; an important source of error in previous vitreous phase density measurements &#8211; is non-trivial. For aqueous mixtures, differential evaporation of solution components during aerosolization and deposition in a vacuum can lead to substantial uncertainties in deposited concentrations.
We have developed a method, based on cryoflotation, that allows accurate density determination of aqueous mixtures using individual drops as small as 50 pL10. These drops can be rapidly cooled while retaining their original concentrations, and their cryogenic temperature state (vitrified or crystalline) can be assessed using a simple visual assay that correlates with X-ray diffraction measurements. This method is broadly applicable to aqueous and non-aqueous mixtures, and can be extended to a variety of biological samples including cells (e.g., stem and egg), tissue samples, and protein crystals having low-temperature densities between 0.8 and 1.4 g/mL.

<table><tbody><tr><td>centrifuge tube</td><td>Falcon</td><td>6029236</td><td>15 mL conical centrifuge tube</td></tr><tr><td>glycerol, &gt;99.5%</td><td>Sigma&amp;nbsp;</td><td>G9012-100 mL</td><td></td></tr><tr><td>ethylene glycol, &gt;99.8%</td><td>Sigma</td><td>324558-100 mL</td><td></td></tr><tr><td>analytical microbalance</td><td>Mettler</td><td>AE240</td><td>Analytical balance, 0.01 mg resolution, has hook on bottom for weighing below the balance&amp;nbsp;</td></tr><tr><td>vortexer</td><td>Scientific Industries</td><td>SI-0236</td><td>Vortex-Genie 2</td></tr><tr><td>Apparatus enclosure framing</td><td>Unistrut&amp;nbsp;</td><td>1-5/8&quot; metal framing</td><td>48&quot; wide x 24&quot; deep x 40&quot; tall&amp;nbsp;</td></tr><tr><td>Apparatus enclosure air barrier</td><td></td><td></td><td>any clear plastic sheeting</td></tr><tr><td>neoprene rubber disk</td><td></td><td></td><td>4&quot; diameter, 1/8&quot; thick</td></tr><tr><td>dewar flask</td><td>Scilogix Dilvac</td><td>SS333</td><td>4.5 liter dewar flask with steel case and clamp lid</td></tr><tr><td>copper chamber</td><td></td><td></td><td>This fabricated part is comprised of a 1.43&quot; diameter, 0.017&quot; wall thickness copper tube with a solid cylindrical copper base soldered to seal one end.&amp;nbsp; The copper base is 0.87&quot; tall and the overall chamber height is 7&quot;.</td></tr><tr><td>nitrogen gas</td><td>Airgas</td><td>NI HP300</td><td>99.998% pure N2 gas</td></tr><tr><td>argon gas</td><td>Airgas</td><td>AR HP300</td><td>99.998% pure Ar gas</td></tr><tr><td>rotameter</td><td>Omega</td><td>FL3692ST</td><td>2.52 L/min max flow rate</td></tr><tr><td>foam insulating lid</td><td></td><td></td><td>This part is fabricated from 4 lb/ft&lt;sup&gt;3&lt;/sup&gt; crosslinked polyethylene foam (supplied by Technifab, 1355 Chester Industrial Parkway, Avon, OH), and has an OD of 2.42&quot;, and ID of 1.52&quot;, and a thickness of 0.79&quot;.&amp;nbsp;&amp;nbsp;&amp;nbsp;&amp;nbsp;</td></tr><tr><td>PTFE test mass</td><td></td><td></td><td>This fabricated part is a 0.246&quot; diameter, 0.580&quot; tall cylinder with a 0.060&quot; diameter hole running perpendicular to and intersecting the cylinder axis ~0.10&quot; from one end.&amp;nbsp;</td></tr><tr><td>microbalance platform</td><td>Unistrut</td><td>1-5/8&quot; metal framing</td><td>11&quot; wide x 24&quot; long x 24&quot; high rectangular frame with an top aluminum sheet containing a hole for the monofilament and hanging test mass</td></tr><tr><td>2 mil (50 um) monofilament line</td><td>Berkley</td><td>NF1502-CM</td><td>Nanofil fishing line</td></tr><tr><td>Argon precooling coil tubing</td><td>VWR</td><td>60985-512</td><td>1/8&quot; ID x 1/4&quot; OD PVC tubing</td></tr><tr><td>perforated copper foil mixer</td><td></td><td></td><td>1.4&quot; diameter,&amp;nbsp; 35 micron thick copper disk, cut from 1 ounce/ft&lt;sup&gt;2&lt;/sup&gt; copper sheet and perforated with holes using an awl or other sharp pointed tool.&amp;nbsp; Insert 1-2 mm diameter rigid thermally insulating (plastic or wood) rod into the center and fix using epoxy as needed.</td></tr><tr><td>syringe</td><td>BD</td><td>309628</td><td>1 mL Luer-Lok tip syringe</td></tr><tr><td>vacuum generator</td><td>Gast</td><td>VG-015-00-00</td><td>compressed air venturi single stage vacuum generator</td></tr><tr><td>hydrophobic coating spray</td><td>RainX</td><td>620036</td><td>plastic water repellent</td></tr><tr><td>long focal length stereo microscope</td><td>Bausch and Lomb Stereozoom 6</td><td></td><td>0.67-4 x zoom pod with 20X eyepieces, 10 cm working distance&amp;nbsp;</td></tr><tr><td>LED ring illuminator</td><td>Amscope</td><td>LED144S</td><td></td></tr><tr><td>LED spot illuminator</td><td>Newhouse Lighting</td><td>NHCLP-LED</td><td>3W LED gooseneck clamp lamp</td></tr><tr><td>1.8 ml cryo vial</td><td>Nunc</td><td>V7634-500EA</td><td>Any 1.8 or 2 mL cryovial is adequate</td></tr></tbody></table>

measuring the densities of aqueous glasses at cryogenic temperatures

We demonstrate a method for determining the vitreous phase cryogenic temperature densities of aqueous mixtures, and other samples that require rapid cooling, to prepare the desired cryogenic temperature phase. Microliter to picoliter size drops are cooled by projection into a liquid nitrogen-argon (N2-Ar) mixture. The cryogenic temperature phase of the drop is evaluated using a visual assay that correlates with X-ray diffraction measurements. The density of the liquid N2-Ar mixture is adjusted by adding N2 or Ar until the drop becomes neutrally buoyant. The density of this mixture and thus of the drop is determined using a test mass and Archimedes principle. With appropriate care in drop preparation, management of gas above the liquid cryogen mixture to minimize icing, and regular mixing of the cryogenic mixture to prevent density stratification and phase separation, densities accurate to &#60;0.5% of drops as small as 50 pL can readily be determined. Measurements on aqueous cryoprotectant mixtures provide insight into cryoprotectant action, and provide quantitative data to facilitate thermal contraction matching in biological cryopreservation.

Density measurements at T = 77 K for vitrified drops of aqueous glycerol and ethylene glycol versus cryoprotectant concentration are shown in Figure 1A and Figure 1B respectively, and the corresponding change in specific volume between T = 298 K and 77 K, calculated using previously determined T = 298 K densities, is shown in Figure 2. At h...

Watch this Scientific Journal Video about Measuring the Densities of Aqueous Glasses at Cryogenic Temperatures at JoVE.com

Measuring the Densities of Aqueous Glasses at Cryogenic Temperatures

A protocol for determining the vitreous phase densities of micro- to pico-liter size drops of aqueous mixtures at cryogenic temperatures is described.

We demonstrate a method for determining the vitreous phase cryogenic temperature densities of aqueous mixtures, and other samples that require rapid ...

measuring-the-densities-of-aqueous-glasses-at-cryogenic-temperatures

Universidad San Sebastian

Research

JoVE Journal

Engineering

8.6K Views.  Cornell University. A protocol for determining the vitreous phase densities of micro- to pico-liter size drops of aqueous mixtures at cryogenic temperatures is described.

Video: Measuring the Densities of Aqueous Glasses at Cryogenic Temperatures

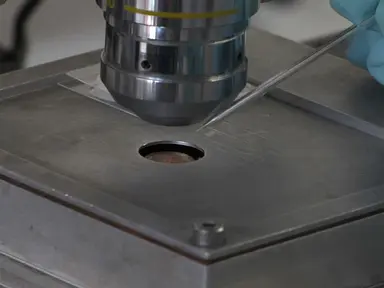

LabVIEW-operated Novel Nanoliter Osmometer for Ice Binding Protein Investigations

Ice-binding proteins (IBPs), including antifreeze proteins, ice structuring proteins, thermal hysteresis proteins, and ice recrystallization inhibition proteins, are found in cold-adapted organisms and protect them from freeze injuries by interacting with ice crystals. IBPs are found in a variety of organism, including fish1, plants2, 3, arthropods4, 5, fungi6, and bacteria7. IBPs adsorb to the surfaces of ice crystals and prevent water molecules from joining the ice lattice at the IBP adsorption location. Ice that grows on the crystal surface between the adsorbed IBPs develops a high curvature that lowers the temperature at which the ice crystals grow, a phenomenon referred to as the Gibbs-Thomson effect. This depression creates a gap (thermal hysteresis, TH) between the melting point and the nonequilibrium freezing point, within which ice growth is arrested8-10, see Figure 1. One of the main tools used in IBP research is the nanoliter osmometer, which facilitates measurements of the TH activities of IBP solutions. Nanoliter osmometers, such as the Clifton instrument (Clifton Technical Physics, Hartford, NY,) and Otago instrument (Otago Osmometers, Dunedin, New Zealand), were designed to measure the osmolarity of a solution by measuring the melting point depression of droplets with nanoliter volumes. These devices were used to measure the osmolarities of biological samples, such as tears11, and were found to be useful in IBP research. Manual control over these nanoliter osmometers limited the experimental possibilities. Temperature rate changes could not be controlled reliably, the temperature range of the Clifton instrument was limited to 4,000 mOsmol (about -7.5 &deg;C), and temperature recordings as a function of time were not an available option for these instruments.
We designed a custom-made computer-controlled nanoliter osmometer system using a LabVIEW platform (National Instruments). The cold stage, described previously9, 10, contains a metal block through which water circulates, thereby functioning as a heat sink, see Figure 2. Attached to this block are thermoelectric coolers that may be driven using a commercial temperature controller that can be controlled via LabVIEW modules, see Figure 3. Further details are provided below. The major advantage of this system is its sensitive temperature control, see Figure 4. Automated temperature control permits the coordination of a fixed temperature ramp with a video microscopy output containing additional experimental details.
To study the time dependence of the TH activity, we tested a 58 kDa hyperactive IBP from the Antarctic bacterium Marinomonas primoryensis (MpIBP)12. This protein was tagged with enhanced green fluorescence proteins (eGFP) in a construct developed by Peter Davies' group (Queens University)10. We showed that the temperature change profile affected the TH activity. Excellent control over the temperature profile in these experiments significantly improved the TH measurements. The nanoliter osmometer additionally allowed us to test the recrystallization inhibition of IBPs5, 13. In general, recrystallization is a phenomenon in which large crystals grow larger at the expense of small crystals. IBPs efficiently inhibit recrystallization, even at low concentrations14, 15. We used our LabVIEW-controlled osmometer to quantitatively follow the recrystallization of ice and to enforce a constant ice fraction using simultaneous real-time video analysis of the images and temperature feedback from the sample chamber13. The real-time calculations offer additional control options during an experimental procedure. A stage for an inverted microscope was developed to accommodate temperature-controlled microfluidic devices, which will be described elsewhere16.
The Cold Stage System
The cold stage assembly (Figure 2) consists of a set of thermoelectric coolers that cool a copper plate. Heat is removed from the stage by flowing cold water through a closed compartment under the thermoelectric coolers. A 4 mm diameter hole in the middle of the copper plate serves as a viewing window. A 1 mm diameter in-plane hole was drilled to fit the thermistor. A custom-made copper disc (7 mm in diameter) with several holes (500 &mu;m in diameter) was placed on the copper plate and aligned with the viewing window. Air was pumped at a flow rate of 35 ml/sec and dried using Drierite (W.A. Hammond). The dry air was used to ensure a dry environment at the cooling stage. The stage was connected via a 9 pin connection outlet to a temperature controller (Model 3040 or 3150, Newport Corporation, Irvine, California, US). The temperature controller was connected via a cable to a computer GPIB-PCI card (National instruments, Austin, Texas, USA).

Ice binding proteins (IBPs), also known as antifreeze proteins, inhibit ice growth and are a promising additive for use in the cryopreservation of tissues. The main tool used to investigate IBPs is the nanoliter osmometer. We developed a home-designed cooling stage mounted on an optical microscope and controlled using a custom-built LabVIEW routine. The nanoliter osmometer described here manipulated the sample temperature in an ultra-sensitive manner.

Ice-binding proteins (IBPs), including antifreeze proteins, ice structuring proteins, thermal hysteresis proteins, and ice recrystallization inhibition ...

Chemistry

Cooling Rate Dependent Ellipsometry Measurements to Determine the Dynamics of Thin Glassy Films

This report aims to fully describe the experimental technique of using ellipsometry for cooling rate dependent Tg (CR-Tg) experiments. These measurements are simple high-throughput characterization experiments, which can determine the glass transition temperature (Tg), average dynamics, fragility and the expansion coefficient of the super-cooled liquid and glassy states for a variety of glassy materials. This technique allows for these parameters to be measured in a single experiment, while other methods must combine a variety of different techniques to investigate all of these properties. Measurements of dynamics close to Tg are particularly challenging. The advantage of cooling rate dependent Tg measurements over other methods which directly probe bulk and surface relaxation dynamics is that they are relatively quick and simple experiments, which do not utilize fluorophores or other complicated experimental techniques. Furthermore, this technique probes the average dynamics of technologically relevant thin films in temperature and relaxation time (&#964;&#945;) regimes relevant to the glass transition (&#964;&#945; &#62; 100 sec). The limitation to using ellipsometry for cooling rate dependent Tg experiments is that it cannot probe relaxation times relevant to measurements of viscosity (&#964;&#945; &#60;&#60; 1 sec). Other cooling rate dependent Tg measurement techniques, however, can extend the CR-Tg method to faster relaxation times. Furthermore, this technique can be used for any glassy system so long as the integrity of the film remains throughout the experiment.

Here, we present a protocol for cooling rate dependent ellipsometry experiments, which can determine the glass transition temperature (Tg), average dynamics, fragility and the expansion coefficient of the super-cooled liquid and glass for a variety of glassy materials.

This report aims to fully describe the experimental technique of using ellipsometry for cooling rate dependent Tg (CR-Tg) experiments. These measurements ...

A Simple Dewar/Cryostat for Thermally Equilibrating Samples at Known Temperatures for Accurate Cryogenic Luminescence Measurements

The design and operation of a simple liquid nitrogen Dewar/cryostat apparatus based upon a small fused silica optical Dewar, a thermocouple assembly, and a CCD spectrograph are described. The experiments for which this Dewar/cryostat is designed require fast sample loading, fast sample freezing, fast alignment of the sample, accurate and stable sample temperatures, and small size and portability of the Dewar/cryostat cryogenic unit. When coupled with the fast data acquisition rates of the CCD spectrograph, this Dewar/cryostat is capable of supporting cryogenic luminescence spectroscopic measurements on luminescent samples at a series of known, stable temperatures in the 77-300 K range. A temperature-dependent study of the oxygen quenching of luminescence in a rhodium(III) transition metal complex is presented as an example of the type of investigation possible with this Dewar/cryostat. In the context of this apparatus, a stable temperature for cryogenic spectroscopy means a luminescent sample that is thermally equilibrated with either liquid nitrogen or gaseous nitrogen at a known measureable temperature that does not vary (&#916;T &#60; 0.1 K) during the short time scale (~1-10 sec) of the spectroscopic measurement by the CCD. The Dewar/cryostat works by taking advantage of the positive thermal gradient dT/dh that develops above liquid nitrogen level in the Dewar where h is the height of the sample above the liquid nitrogen level. The slow evaporation of the liquid nitrogen results in a slow increase in h over several hours and a consequent slow increase in the sample temperature T over this time period. A quickly acquired luminescence spectrum effectively catches the sample at a constant, thermally equilibrated temperature.

A simple liquid nitrogen Dewar/cryostat apparatus comprised of a small fused silica optical Dewar, a thermocouple, and a charge-coupled device (CCD) spectrograph are described. The experiments for which this Dewar/cryostat is designed require fast sample loading, freezing, and alignment, accurate and stable sample temperatures, and small size/portability.

The design and operation of a simple liquid nitrogen Dewar/cryostat apparatus based upon a small fused silica optical Dewar, a thermocouple assembly, and ...

Methods of Ex Situ and In Situ Investigations of Structural Transformations: The Case of Crystallization of Metallic Glasses

We demonstrate the use of two nuclear-based analytical methods that can follow the modifications of microstructural arrangement of iron-based metallic glasses (MGs). Despite their amorphous nature, the identification of hyperfine interactions unveils faint structural modifications. For this purpose, we have employed two techniques that utilize nuclear resonance among nuclear levels of a stable 57Fe isotope, namely M&#246;ssbauer spectrometry and nuclear forward scattering (NFS) of synchrotron radiation. The effects of heat treatment upon (Fe2.85Co1)77Mo8Cu1B14 MG are discussed using the results of ex situ and in situ experiments, respectively. As both methods are sensitive to hyperfine interactions, information on structural arrangement as well as on magnetic microstructure is readily available. M&#246;ssbauer spectrometry performed ex situ describes how the structural arrangement and magnetic microstructure appears at room temperature after the annealing under certain conditions (temperature, time), and thus this technique inspects steady states. On the other hand, NFS data are recorded in situ during dynamically changing temperature and NFS examines transient states. The use of both techniques provides complementary information. In general, they can be applied to any suitable system in which it is important to know its steady state but also transient states.

Methods of Ex Situ and In Situ Investigations of Structural Transformations: The Case of Crystallization of Metallic Glasses

Here, we present a protocol to describe ex situ and in situ investigations of structural transformations in metallic glasses. We employed nuclear-based analytical methods which inspect hyperfine interactions. We demonstrate the applicability of M&#246;ssbauer spectrometry and nuclear forward scattering of synchrotron radiation during temperature-driven experiments.

We demonstrate the use of two nuclear-based analytical methods that can follow the modifications of microstructural arrangement of iron-based metallic ...

Biological Samples Preparation for Speciation at Cryogenic Temperature using High-Resolution  X-Ray Absorption Spectroscopy

The study of elements with X-ray absorption spectroscopy (XAS) is of particular interest when studying the role of metals in biological systems. Sample preparation is a key and often complex procedure, particularly for biological samples. Although X-ray speciation techniques are widely used, no detailed protocol has been yet disseminated for users of the technique. Further, chemical state modification is of concern, and cryo-based techniques are recommended to analyze the biological samples in their near-native hydrated state to provide the maximum preservation of chemical integrity of the cells or tissues. Here, we propose a cellular preparation protocol based on cryo-preserved samples. It is demonstrated in a high energy resolution fluorescence detected X-ray absorption spectroscopy study of selenium in cancer cells and a study of iron in phytoplankton. This protocol can be used with other biological samples and other X-ray techniques that can be damaged by irradiation.

This protocol presents a detailed procedure to prepare biological cryosamples for synchrotron-based X-ray absorption spectroscopy experiments. We describe all the steps required to optimize sample preparation and cryopreservation with examples of the protocol with cancer and phytoplankton cells. This method provides a universal standard of sample cryo-preparation.

The study of elements with X-ray absorption spectroscopy (XAS) is of particular interest when studying the role of metals in biological systems. Sample ...

A Microfluidic Approach for the Study of Ice and Clathrate Hydrate Crystallization

An accurate mechanistic description of water crystallization is challenging and requires a few key elements: superb temperature control to allow the formation of single microscopic crystals and a suitable microscopy system coupled to the cold stage. The method described herein adds another important feature that includes exchanging solutions around ice and clathrate hydrate crystals. The described system comprises a combination of unique and home-developed instruments, including microfluidics, high-resolution cold stages, and fluorescence microscopy. The cold stage was designed for microfluidic devices and allows for the formation of micron-sized ice/hydrate crystals inside microfluidic channels and the exchange of solutions around them. The temperature resolution and stability of the cold stage is one millikelvin, which is crucial for controlling the growth of these small crystals. This diverse system is used to study the different processes of ice and hydrate crystallization and the mechanism by which the growth of these crystals is inhibited. The protocol describes how to prepare microfluidic devices, how to grow and control microscopic crystals in the microfluidic channels, and how the utilization of the flow of liquids around ice/hydrate crystals affords new insights into the crystallization of water.

The present protocol describes the crystallization of microscopic ice crystals and clathrate hydrates in microfluidic devices, enabling liquid exchange around the formed crystals. This provides unparalleled possibilities to examine the crystallization process and binding mechanisms of the inhibitors.

An accurate mechanistic description of water crystallization is challenging and requires a few key elements: superb temperature control to allow the ...

A Simple and Inexpensive Method for Determining Cold Sensitivity and Adaptation in Mice

Cold hypersensitivity is a serious clinical problem, affecting a broad subset of patients and causing significant decreases in quality of life. The cold plantar assay allows the objective and inexpensive assessment of cold sensitivity in mice, and can quantify both analgesia and hypersensitivity. Mice are acclimated on a glass plate, and a compressed dry ice pellet is held against the glass surface underneath the hindpaw. The latency to withdrawal from the cooling glass is used as a measure of cold sensitivity.
Cold sensation is also important for survival in regions with seasonal temperature shifts, and in order to maintain sensitivity animals must be able to adjust their thermal response thresholds to match the ambient temperature. The Cold Plantar Assay (CPA) also allows the study of adaptation to changes in ambient temperature by testing the cold sensitivity of mice at temperatures ranging from 30 &#176;C to 5 &#176;C. Mice are acclimated as described above, but the glass plate is cooled to the desired starting temperature using aluminum boxes (or aluminum foil packets) filled with hot water, wet ice, or dry ice. The temperature of the plate is measured at the center using a filament T-type thermocouple probe. Once the plate has reached the desired starting temperature, the animals are tested as described above.
This assay allows testing of mice at temperatures ranging from innocuous to noxious. The CPA yields unambiguous and consistent behavioral responses in uninjured mice and can be used to quantify both hypersensitivity and analgesia. This protocol describes how to use the CPA to measure cold hypersensitivity, analgesia, and adaptation in mice.

The Cold Plantar Assay (CPA) measures cold responsiveness between 30 &#176;C and 5 &#176;C, and can also measure cold adaptation. This protocol describes how to use the CPA to measure cold hypersensitivity, analgesia, and adaptation in mice.

Cold hypersensitivity is a serious clinical problem, affecting a broad subset of patients and causing significant decreases in quality of life.  The cold ...

Neuroscience

Production of CdSe&#45;SnSe Nanocomposites from Consolidated SnSe Particles

Solution&#45;Processed, Surface&#45;Engineered, Polycrystalline CdSe&#45;SnSe Exhibiting Low Thermal Conductivity

In recent years, solution processes have gained considerable traction as a cost-effective and scalable method to produce high-performance thermoelectric materials. The process entails a series of critical steps: synthesis, purification, thermal treatments, and consolidation, each playing a pivotal role in determining performance, stability, and reproducibility. We have noticed a need for more comprehensive details for each of the described steps in most published works. Recognizing the significance of detailed synthetic protocols, we describe here the approach used to synthesize and characterize one of the highest-performing polycrystalline p-type SnSe. In particular, we report the synthesis of SnSe particles in water and the subsequent surface treatment with CdSe molecular complexes that yields CdSe-SnSe nanocomposites upon consolidation. Moreover, the surface treatment inhibits grain growth through Zenner pinning of secondary phase CdSe nanoparticles and enhances defect formation at different length scales. The enhanced complexity in the CdSe-SnSe nanocomposite microstructure with respect to SnSe promotes phonon scattering and thereby significantly reduces the thermal conductivity. Such surface engineering provides opportunities in solution processing for introducing and controlling defects, making it possible to optimize the transport properties and attain a high thermoelectric figure of merit.

Author Spotlight: Advancing Energy Solutions Using Nanocomposites as Processed Thermoelectric Materials

CdSe-SnSe nanocomposites are produced by consolidating surface-engineered SnSe particles. A simple aqueous synthesis is employed to produce SnSe particles. Coating SnSe particles with CdSe molecular complexes allows for controlling grain size and increasing the number of defects present in the nanocomposite, thus lowering the thermal conductivity.

In recent years, solution processes have gained considerable traction as a cost-effective and scalable method to produce high-performance thermoelectric ...

Determining the Density of a Solid and Liquid

Source: Laboratory of Dr. Michael Evans &#8212; Georgia Institute of Technology
The ratio of the mass of a substance to its volume is known as the mass density or, simply, the density of the substance. Density is expressed in units of mass per volume, such as g/mL or kg/m3. Because the density of a substance does not depend on the amount of substance present, density is an &#8220;intensive property&#8221;.
To measure the density of a sample of material, both the mass and volume of the sample must be determined. For both solids and liquids, a balance can be used to measure mass; however, methods for determining volume are different for solids and liquids. As liquids can flow and take the shapes of their containers, glassware such as a graduated cylinder or volumetric flask can be used to measure the volume of a liquid. The volume of an irregularly-shaped solid can be measured by submersion in a liquid &#8212; the difference in volume caused by addition of the solid is equal to the volume of the solid.
This demonstration illustrates the methods for measuring the density of solids and liquids. Using a volumetric flask and an analytical balance, the density of ethanol can be determined. Using a graduated cylinder, analytical balance, and water as the displaced liquid, the density of zinc metal can be determined.

Source: Laboratory of Dr. Michael Evans &#8212; Georgia Institute of Technology
The ratio of the mass of a substance to its volume is known as the mass ...

Education

JoVE Science Education

General Chemistry

Glassware Calibration

Accurate calibration of glassware, such as volumetric flasks, pipettes, and burettes, is essential to ensure accurate measurements in the analytical laboratory. Calibration helps maintain consistency across measurements and prevents errors arising from inaccurate volumes.
Volumetric flasks:&#160;Volumetric flasks are designed to prepare aqueous solutions of precise volumes accurately with a calibration line on the neck. To calibrate a volumetric flask, it is important to fill it with distilled water until the meniscus (the curved surface of the liquid) aligns with the calibration mark. Viewing the meniscus at eye level ensures accurate readings. Calibration is typically performed at a specific temperature (~20&#176;C) to account for the effect of temperature on volume. If the water level is above the line, drain it carefully until it hits the mark; if the water line is below, add more water dropwise until it reaches the mark. After calibration, the flask&#39;s capacity can be confirmed by weighing the water and comparing it with the theoretical value based on its density.
Pipettes:&#160;Pipettes are used to transfer specific volumes of liquid.
Volumetric Pipettes: These are designed to deliver a single, highly accurate volume, typically to four or five significant figures. For calibration, the pipette is first cleaned and rinsed with the solution to be measured, filled to the calibration mark, and allowed to drain completely into a container. The accuracy is then checked by weighing the water delivered and comparing this with the theoretical volume based on water density.
Graduated Pipettes: Unlike volumetric pipettes, graduated pipettes are marked with a series of lines and can deliver multiple volumes but with slightly lower accuracy&#8212;generally up to three significant figures. The meniscus must also be carefully observed during calibration and measurement.

Burette:&#160;A burette is a long, graduated glass tube with a tap at one end that accurately dispenses variable amounts of a solution, particularly in titrations. When calibrating a burette, ensure that the meniscus is correctly aligned with the markings before and after titration, and check that the volume dispensed is as expected by comparing the weight of the water delivered to its theoretical value. The burette&#39;s reservoir contains markings to indicate the volume of the liquid. The stopcock or tap at the bottom serves as a manual valve that allows users to control the liquid flow from the reservoir, allowing for precise measurement of the dispensed amount.
Other Glassware:&#160;Other types of laboratory glassware, such as graduated cylinders, are also commonly used for volume measurements but offer lower accuracy than volumetric equipment. They typically deliver volumes up to three significant figures, suitable for less precise work. However, calibration of these items is still important for maintaining measurement reliability.
Calibrating laboratory glassware ensures accurate and reliable measurements, which is crucial for maintaining the integrity of analytical results. Whether using volumetric flasks, pipettes, burettes, or other glassware, proper calibration techniques help prevent errors and improve the precision of laboratory work.

Accurate calibration of glassware, such as volumetric flasks, pipettes, and burettes, is essential to ensure accurate measurements in the analytical ...

Measuring the Densities of Aqueous Glasses at Cryogenic Temperatures

Summary

Explore More Videos

Chapters in this video

LabVIEW-operated Novel Nanoliter Osmometer for Ice Binding Protein Investigations

Cooling Rate Dependent Ellipsometry Measurements to Determine the Dynamics of Thin Glassy Films

A Simple Dewar/Cryostat for Thermally Equilibrating Samples at Known Temperatures for Accurate Cryogenic Luminescence Measurements

Methods of Ex Situ and In Situ Investigations of Structural Transformations: The Case of Crystallization of Metallic Glasses

Biological Samples Preparation for Speciation at Cryogenic Temperature using High-Resolution X-Ray Absorption Spectroscopy

A Microfluidic Approach for the Study of Ice and Clathrate Hydrate Crystallization

A Simple and Inexpensive Method for Determining Cold Sensitivity and Adaptation in Mice

Solution-Processed, Surface-Engineered, Polycrystalline CdSe-SnSe Exhibiting Low Thermal Conductivity

Determining the Density of a Solid and Liquid

Glassware Calibration
