The authors thank the staff of the Center for Comparative Medicine and Research (CCMR) at Dartmouth for their expert care of the mice used for these studies. The authors also acknowledge Emily Clough for her excellent administrative support.

All animal work utilizes protocols reviewed and approved by the Institutional Animal Care and Use Committee (IACUC) at Geisel School of Medicine at Dartmouth.
1. The Mouse Model
<ol>
	<li>Induction of TMEV-Induced Demyelinating Disease
	<ol>
		<li>Move the cages containing 4- to 6-week-old female SJL/JHan mice from the rack to a comfortable working space. Mark the mice (e.g., with an ear tag or ear punch) to allow for individual evaluation of clinical and histological disease.</li>
		<li>Draw 30 &#956;l of TMEV infecting stock (2 x 106 plaque forming units; PFU) in PBS into a 29-gauge insulin syringe and needle.</li>
		<li>Prepare the anesthesia gas machine: check the system to ensure the presence of adequate amounts of oxygen and isoflurane for the duration of the procedure.</li>
		<li>Turn on the flow meter to 1 L/min. Place the animal into the induction chamber and seal the top. Turn on the vaporizer to 3.5% and monitor the animal until recumbent.</li>
		<li>Remove the animal from the chamber and test the mouse by pinching the footpad to ensure adequate anesthesia. Lack of response to a strong pinch indicates adequate anesthesia.</li>
		<li>Clean the injection site with 70% isopropyl alcohol.</li>
		<li>Inject the 30 &#956;l of TMEV infecting stock into the right cerebral hemisphere by freehand injection (Figure 1). The site of injection is approximately halfway between the eye and ear line and just off the midline.</li>
		<li>Return the mouse to its holding cage once fully alert and mobile (usually 3 - 5 min).</li>
		<li>Euthanize mice by exsanguination or cardiac perfusion 3 to 6 months after TMEV infection, depending on the rapidity of development of the disease.</li>
	</ol>
	</li>
</ol>
2. Rotarod Analysis
<ol>
	<li>The Rotarod Apparatus
	<ol>
		<li>Test mice prior to TMEV infection to familiarize them with the machine and to assess their normal baseline balance coordination and motor control.</li>
		<li>Start the adaptation protocol on -5 days post infection (dpi; i.e., 5 days before TMEV infection).</li>
		<li>Allow the mice to acclimate to the testing room for at least 30 min prior to Rotarod testing, in order to allow them to adjust to the environment.</li>
		<li>Make sure that both the Rotarod unit and the computer are plugged in and connected to each other (Figure 2).</li>
		<li>Pre-set the Rotarod with the -5 dpi training protocol parameters, as described in Table 1.</li>
		<li>Save the work file with the date and identification information.</li>
		<li>Move the cage containing the squad to be tested from the rack to a table adjacent to the Rotarod. Mice are usually tested in squads of 4.</li>
		<li>Pick up a mouse by the tail and place it on the rod, facing away from the operator. Repeat for the second through the fourth mouse. If a mouse falls or jumps, place it back in its lane on the Rotarod until all mice are in position. Ignore if any mice turn around to face the operator.</li>
		<li>After loading all the mice, press the &#34;Enter&#34; button to start the experiment. Observe the timers start automatically and the rotations per min (rpm) on display for each lane.
		<ol>
			<li>As each animal falls from the rod, record the speed of the rod at the time of the fall, as well as the duration of time the animal remained on the rod. The rod will continue to rotate until the last animal has fallen from the rod assembly.</li>
		</ol>
		</li>
		<li>After all the mice have fallen, use a tissue to remove any fecal boli and urine from the rod. The presence of urine and fecal material may affect the ability of mice to grip the rod.
		<ol>
			<li>After a 3-min rest, give the mice a second and then a third trial. The maximum time per single trial is 240 sec. Administer a total of 3 trials during each testing day.</li>
		</ol>
		</li>
		<li>Return the mice to their home cage and return them back to the rack. At the end of the experimental session, clean the Rotarod with soap and water to remove all fecal matter off the machine.</li>
		<li>Wipe clean the baseplate with ethanol 70%. Spray down the whole machine with chlorine dioxide to disinfect.</li>
		<li>On days - 4, - 3, - 2, and - 1 pi, pre-set the Rotarod with the appropriate training protocol parameters, as described in Table 1, and repeat steps 2.1.2 to 2.1.12.</li>
		<li>After obtaining the baseline measures, infect the mice with TMEV. Allow a 6-day pi recovery period.</li>
	</ol>
	</li>
</ol>
<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
	<tbody>
		<tr>
			<td rowspan="2">Protocol</td>
			<td rowspan="2">Testing Day</td>
			<td rowspan="2">Frequency</td>
			<td rowspan="2">Starting speed (rpm)</td>
			<td rowspan="2">Max Speed (rpm)</td>
			<td>Acceleration</td>
			<td>Trials</td>
			<td>ITI</td>
		</tr>
		<tr>
			<td>(rpm/sec)</td>
			<td>(N x sec)</td>
			<td>(min)</td>
		</tr>
		<tr>
			<td rowspan="4">Training</td>
			<td>- 5 d.p.i</td>
			<td>1/day</td>
			<td>1</td>
			<td>12</td>
			<td>01/03</td>
			<td>3x240 sec</td>
			<td>3</td>
		</tr>
		<tr>
			<td>- 4 d.p.i</td>
			<td>1/day</td>
			<td>1</td>
			<td>13</td>
			<td>01/03</td>
			<td>3x240 sec</td>
			<td>3</td>
		</tr>
		<tr>
			<td>- 3 d.p.i</td>
			<td>1/day</td>
			<td>1</td>
			<td>14</td>
			<td>01/03</td>
			<td>3x240 sec</td>
			<td>3</td>
		</tr>
		<tr>
			<td>- 2; - 1 d.p.i</td>
			<td>1/day</td>
			<td>5</td>
			<td>40</td>
			<td>01/03</td>
			<td>3x240 sec</td>
			<td>3</td>
		</tr>
		<tr>
			<td rowspan="2">Experimental</td>
			<td>From +7 to +50 d.p.i</td>
			<td>2/week</td>
			<td>5</td>
			<td>40</td>
			<td>05/30</td>
			<td>3x240 sec</td>
			<td>3</td>
		</tr>
		<tr>
			<td>From +51 to +150 d.p.i</td>
			<td>1/week</td>
			<td>5</td>
			<td>40</td>
			<td>05/30</td>
			<td>3x240 sec</td>
			<td>3</td>
		</tr>
	</tbody>
</table>
Table 1: Rotarod Parameters in Training and Experimental Protocols.
<ol start="2">
	<li>The Rotarod Experimental Protocol
	<ol>
		<li>On +7 dpi, pre-set the Rotarod with the appropriate experimental protocol parameters, as described in Table 1. Repeat steps 2.1.2 to 2.1.10.</li>
		<li>At the end of trial #3, weigh each mouse and make a note of the body weight on the data sheet. Clean and disinfect the Rotarod as per steps 2.1.11 and 2.1.12.</li>
		<li>Test the mice twice a week for the following 6 weeks, as described above. After 6 weeks (in which the mice have likely reached a plateau phase)8,9, test the mice once a week with the same experimental protocol. The actual testing protocol lasts an average of 150 days, depending on the specific disease course.</li>
	</ol>
	</li>
	<li>Neurological Functional Index
	<ol>
		<li>Export the raw data into a spreadsheet file and analyze the results.</li>
		<li>Express data as running time (Figure 3A): this is the normal running time plus the passive rotation time minus the rotation delay time (Table 2)10. Calculate the mean running time of the three trials per day.</li>
		<li>Express the data as a neurological functional index (NFI; Figure 3B).
		<ol>
			<li>Calculate the baseline performance threshold of each individual mouse. The baseline performance threshold is determined as the mean of all running times from day + 15 to + 45 pi6,7.</li>
			<li>Calculate the NFI as the mean of the three most recent average running times divided by the baseline performance threshold of that specific mouse6,7.
			NOTE: If the tested running times for a mouse on day + 72, + 76, and + 79 pi are 55 sec, 45 sec, and 50 sec, and the baseline time for the same mouse was 135 sec, the NFI for that mouse on +79 dpi will be [(45+50+55)/3]/135 or 0.37.</li>
		</ol>
		</li>
		<li>Express the data as an adjusted NFI (adjNFI; Figure 3C): adjust the NFI data by a population value for the single experiment.
		<ol>
			<li>Calculate the adjNFI by dividing the NFI value by the average NFI obtained by the sham-treated group on that specific day.</li>
		</ol>
		</li>
	</ol>
	</li>
</ol>
<table border="1" fo:keep-together.within-page="1" fo:keep-with-next.within-page="always">
	<tbody>
		<tr>
			<td>Term</td>
			<td>Definition</td>
		</tr>
		<tr>
			<td>Normal running time</td>
			<td>The total time the mouse spends actively running on the rotating rod, i.e., latency to fall.</td>
		</tr>
		<tr>
			<td>Passive rotation time</td>
			<td>The amount of time the mouse has remained on the rod in the passive rotation mode.</td>
		</tr>
		<tr>
			<td>Rotation delay time</td>
			<td>The amount of time the mouse remains on the rod during the passive rotation mode</td>
		</tr>
		<tr>
			<td>Passive rotation mode</td>
			<td>When the mouse grabs the rod and rotates without having to ambulate.</td>
		</tr>
		<tr>
			<td>Total session time</td>
			<td>Total amount of time the mouse remains on the rotating rod during the session.</td>
		</tr>
		<tr>
			<td>Baseline performance</td>
			<td>Pre-damage motor performance assessed to determine the minimum performance threshold.</td>
		</tr>
		<tr>
			<td>Neurological function index (NFI)</td>
			<td>Clinical index, which compares each mouse motor performance, i.e., running time, at any time to its peak performance.</td>
		</tr>
		<tr>
			<td>Adjusted neurological function index (adjNFI)</td>
			<td>When a normalization process is applied to adjust NFI data by a population value for the single experiment.&#160;</td>
		</tr>
		<tr>
			<td>Population value</td>
			<td>Average NFI value obtained by the sham-treated group at a specific day.</td>
		</tr>
	</tbody>
</table>
Table 2: Definitions of Rotarod Parameters Adopted to Quantify Neurological Impairment.

<ol>
	<li>Lipton, H. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Theiler's+virus+infection+in+mice:+an+unusual+biphasic+disease+process+leading+to+demyelination.">Theiler's virus infection in mice: an unusual biphasic disease process leading to demyelination.</a> Infect Immun. 11, 1147-1155 (1975).</li><li>Pachner, A. R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> A Primer of Neuroimmunological Disease. , (2012).</li><li>Rustay, N. R., Wahlsten, D., Crabbe, J. C. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Assessment+of+genetic+susceptibility+to+ethanol+intoxication+in+mice.">Assessment of genetic susceptibility to ethanol intoxication in mice.</a> Proc Natl Acad Sci U S A. 100, 2917-2922 (2003).</li><li>McGavern, D. B., Zoecklein, L., Drescher, K. M., Rodriguez, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Quantitative+assessment+of+neurologic+deficits+in+a+chronic+progressive+murine+model+of+CNS+demyelination.">Quantitative assessment of neurologic deficits in a chronic progressive murine model of CNS demyelination.</a> Exp Neurol. 158, 171-181 (1999).</li><li>Zoecklein, L. J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Direct+comparison+of+demyelinating+disease+induced+by+the+Daniel's+strain+and+BeAn+strain+of+Theiler's+murine+encephalomyelitis+virus.">Direct comparison of demyelinating disease induced by the Daniel's strain and BeAn strain of Theiler's murine encephalomyelitis virus.</a> Brain Pathol. 13, 291-308 (2003).</li><li>Gilli, F., Li, L., Campbell, S. J., Anthony, D. C., Pachner, A. R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+effect+of+B-cell+depletion+in+the+Theiler's+model+of+multiple+sclerosis.">The effect of B-cell depletion in the Theiler's model of multiple sclerosis.</a> J Neurol Sci. 359, 40-47 (2015).</li><li>Li, L., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+effect+of+FTY720+in+the+Theiler's+virus+model+of+multiple+sclerosis.">The effect of FTY720 in the Theiler's virus model of multiple sclerosis.</a> J Neurol Sci. 308, 41-48 (2011).</li><li>Homanics, G. E., Quinlan, J. J., Firestone, L. L. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Pharmacologic+and+behavioral+responses+of+inbred+C57BL/6J+and+strain+129/SvJ+mouse+lines.">Pharmacologic and behavioral responses of inbred C57BL/6J and strain 129/SvJ mouse lines.</a> Pharmacol Biochem Be. 63, 21-26 (1999).</li><li>Balkaya, M., Krober, J. M., Rex, A., Endres, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Assessing+post-stroke+behavior+in+mouse+models+of+focal+ischemia.">Assessing post-stroke behavior in mouse models of focal ischemia.</a> J Cerebr Blood F Met. 33, 330-338 (2013).</li><li>. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Columbus Instruments Rotamex-5 Manual. , 1-33 (2005).</li><li>Dunham, N. W., Miya, T. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+note+on+a+simple+apparatus+for+detecting+neurological+deficit+in+rats+and+mice.">A note on a simple apparatus for detecting neurological deficit in rats and mice.</a> J Am Pharm Ass. 46, 208-209 (1957).</li><li>Ulrich, R., Kalkuhl, A., Deschl, U., Baumgartner, W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Machine+learning+approach+identifies+new+pathways+associated+with+demyelination+in+a+viral+model+of+multiple+sclerosis.">Machine learning approach identifies new pathways associated with demyelination in a viral model of multiple sclerosis.</a> J Cell Mol Med. 14, 434-448 (2010).</li><li>Lynch, J. L., Gallus, N. J., Ericson, M. E., Beitz, A. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Analysis+of+nociception,+sex+and+peripheral+nerve+innervation+in+the+TMEV+animal+model+of+multiple+sclerosis.">Analysis of nociception, sex and peripheral nerve innervation in the TMEV animal model of multiple sclerosis.</a> Pain. 136, 293-304 (2008).</li><li>Pirko, I., Johnson, A. J., Lohrey, A. K., Chen, Y., Ying, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Deep+gray+matter+T2+hypointensity+correlates+with+disability+in+a+murine+model+of+MS.">Deep gray matter T2 hypointensity correlates with disability in a murine model of MS.</a> J Neurol Sci. 282, 34-38 (2009).</li><li>Oleszak, E. L., Chang, J. R., Friedman, H., Katsetos, C. D., Platsoucas, C. D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Theiler's+virus+infection:+a+model+for+multiple+sclerosis.">Theiler's virus infection: a model for multiple sclerosis.</a> Clin Microbiol Rev. 17, 174-207 (2004).</li><li>McCarthy, D. P., Richards, M. H., Miller, S. D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Mouse+models+of+multiple+sclerosis:+experimental+autoimmune+encephalomyelitis+and+Theiler's+virus-induced+demyelinating+disease.">Mouse models of multiple sclerosis: experimental autoimmune encephalomyelitis and Theiler's virus-induced demyelinating disease.</a> Methods Mol Biol. 900, 381-401 (2012).</li><li>. International Mouse Phenotyping Resource of Standardised Screens Available from: <a target="_blank" href="https://www.mousephenotype.org/impress/protocol/158/1">https://www.mousephenotype.org/impress/protocol/158/1</a> (2016)</li><li>Bohlen, M., Cameron, A., Metten, P., Crabbe, J. C., Wahlsten, D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Calibration+of+rotational+acceleration+for+the+rotarod+test+of+rodent+motor+coordination.">Calibration of rotational acceleration for the rotarod test of rodent motor coordination.</a> J Neurosci Methods. 178, 10-14 (2009).</li><li>Hopkins, M. E., Bucci, D. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Interpreting+the+effects+of+exercise+on+fear+conditioning:+the+influence+of+time+of+day.">Interpreting the effects of exercise on fear conditioning: the influence of time of day.</a> Behav Neurosci. 124, 868-872 (2010).</li></ol>

The authors have nothing to disclose.

Despite some limitations, the Rotarod performance test represents an important tool for assessing motor function and dysfunction in TMEV-IDD as well as the effect of pharmacological interventions on disability progression in mice.
The Rotarod test was first described in 1957 as a tool for measuring neurological deficits in rodents11. Rodents have to walk on a rotating rod, with increasing rotating speed, and try to avoid falling to the ground. The latency to fall is recorded and used as a quantitative end point for motor function: the more neurological impairment the animals have, the sooner they fall off the rod. The clear advantage of this test over the traditional visual scoring systems is that it generates an objective variable that can be used for statistical purposes to quantify the effects of therapies and experimental procedures on disability progression3. Visual scoring systems such as the righting reflex test might be preferred as being a simpler and more rapid test to assess locomotor abilities in mice. However, these systems lack the precision of a more quantitative test like the Rotarod performance test, and they should therefore not be used to monitor the natural history or phenotypic changes of mice with mild and progressive neurological impairment. On the other hand, visual tests like the righting reflex test are particularly adapted to mice that are too young or too affected to be tested on the Rotarod.
In order to avoid distorted assessments of the Rotarod test, the testing parameters (i.e., size, speed, and acceleration of the rotating rod; amount of training given to the animal; and final data processing) must be carefully replicated3. Today, the Rotarod performance test is still the most commonly used motor behavioral test, yet there is little consensus on the ideal testing parameters to produce optimal results. We have found studies with TMEV-IDD mice that have used rod diameters from 1.18 to 1.6 in. (3 to 4 cm)12,13, fixed-speed rates of 5 to 10 rpm12,13, and acceleration rates of 5 to 10 rpm/min12-14. However, it is unknown whether the conclusions about neurological differences would generalize to other test conditions. The present protocol offers recommendations of specific testing parameters that were optimized and are thus suitable for studying progressive neurological disability in the TMEV-IDD mouse model of MS using the Rotarod test. Particularly, before embarking on a Rotarod motor function study in mice, it is recommended that a number of potentially important factors-among others, baseline performance and passive rotation-be considered.
First, regarding baseline performance: exercised and uninfected mice improve their motor performance over time, eventually reaching a stable plateau over several days or weeks8,9. This is the result of the normal process of motor learning. However, this improvement is not permanent, and if mice are left untrained for several days, their motor performance on the rotating rod will drop rapidly9. Therefore, a baseline performance determination is crucial to differentiate between motor learning and actual recovery after a therapeutic intervention, as well as between a physiological motor performance drop and worsening due to an experimental procedure.
Our optimized Rotarod protocol expects to train TMEV-IDD mice from + 15 to + 45 dpi (i.e., in between the acute encephalitis, which occurs within + 3 to + 12 dpi, and the late chronic demyelinating disease, which develops from + 30 to + 40 dpi)15. This allows for the evaluation of motor performance as a result of progressive demyelination and thus excludes any contributing deficits due to the early encephalitis. Ideally, the Rotarod training should be performed prior to disease induction. However, in order to develop a chronic infection of the CNS, SJL mice have to be injected with the virus before their 7th week of age16. Since it is generally accepted that the ages of animals that the Rotarod test can be performed on is 8 to 26 weeks17, an effective training session cannot be completed in mice before TMEV infection.
Training and baseline performance evaluation are also important to exclude the effect of low motivation, low basal performance, and low learning skills. Each animal is different, and these differences need to be considered in a motor performance evaluation. This is best remedied by using a baseline performance normalized index, also known as an NFI. This index also accounts for performance fluctuations that might be observed in mice during different testing sessions. Performance variability is a common issue in behavioral testing, mainly due to factors outside the experimental protocol, such as low motivation and past experiences of the animal. The mean running times for the last three time points of each mouse provides an estimate of the central tendency of the distribution that is expected if performance remains stable. This accounts for day-to-day individual performance variability. Severe neurological disability is then defined by NFI values of less than or equal to 0.3, whereas relatively unaffected mice are scored with NFI values greater than or equal to 0.7. Unfortunately, this strategy does not completely remove the problem that motivational changes might affect motor performance. To further address this problem, mice may be trained with the addition of specific motivating features, such as mild food deprivation prior to training or increased fear of falling caused by adjustable falling heights of 17.5 to 23.5 in. (44.5 to 60 cm).
Second, regarding passive rotations or looping: perhaps the most important threat to the validity of Rotarod data is the occurrence of passive rotations that arise when the mouse can cling on and rotate passively as the rod turns18. Although passive rotation is observed on the Rotarod, especially in mice experiencing motor coordination problems, this coping behavior may result in late falling off the rod, which would incorrectly indicate an absence of motor deficits. Therefore, a secondary measure of disturbed motor coordination, which should be considered in the data analysis, is the count of the number of times the mouse turns around the rod without falling off. Also, passive rotation is influenced strongly by task parameters such as the diameter, speed and acceleration degree of the rod18. There are no perfect solutions for reducing the risk of passive rotation, but a possible resolution may be the use of a rod with a larger diameter (i.e., 1.18 to 3.15 in. (3 to 8 cm)) or less pronounced ridges so as to slightly reduce the grip of the mouse.
A limitation of the Rotarod performance test is that the motor assessment is limited to a short observation time. Moreover, testing at different time points in the light-dark cycle may alter the outcome of behavioral testing19. Thus, in order to overcome these issues, several companies are developing innovative home cage analysis systems that provide 24/7 monitoring of rodent behaviors. These monitoring systems surely represent the newest and most exciting technology available in rodent behavioral research, but are still extremely expensive and not always accessible to research laboratories.
In summary, the Rotarod performance test is a relatively simple, inexpensive, and well-characterized test for long-term evaluation of neurological disability in TMEV-IDD, a murine model of progressive MS. The advantage of this test over the traditional clinical symptoms score systems is that it generates an objective variable to quantify the effects of different drugs, conditions, and procedures on motor function. Given the robustness of the Rotarod performance test, by applying a few simple precautions, as described above, this procedure provides a baseline against which to assess (1) the relevance of the TMEV-IDD mouse model to progressive MS and (2) its usefulness for testing therapies aimed at treating progressive neurological conditions such as MS.

Theiler&#39;s Murine Encephalomyelitis Virus (TMEV) is a neurotropic single-stranded RNA virus that persistently infects the murine central nervous system (CNS). In susceptible mice, infection with TMEV causes an immune-mediated, chronic-progressive demyelinating disease, known as TMEV-induced demyelinating disease (TMEV-IDD). Experimental infection of mice takes a disease course resembling that seen in progressive forms of multiple sclerosis (MS). TMEV-IDD is characterized by two distinct phases: the acute phase and the chronic phase. The acute phase is a mild, usually subclinical encephalitis1,2. The second, chronic phase, beginning about a month after infection, consists of a slowly progressing disability characterized by demyelination, inflammation, and axonal damage1,2. The weakness observed in mice is associated with spasticity and, occasionally, severe tonic spasms.
Because there are currently no medications to ameliorate the progressive disability in patients, researchers are particularly attracted by TMEV-IDD, which represents an optimal animal model for monitoring the impact of disease-modifying drugs on disease progression. However, in mice as well as in MS patients, the monitoring of disability progression requires a continuous clinical observation over extended periods of time. In mice, long-term monitoring for disability progression can be accomplished with the Rotarod performance test.
The Rotarod performance test is a standard behavioral test that evaluates motor-associated functions such as coordination, balance, and fatigue in rodents. The mice have to keep their balance on a turning rod, which is rotating under continuous acceleration; the time latency to fall from this rod is recorded. Animals with neurological dysfunction are unable to stay on the rotating rod as long as controls, and they normally drop off when the rotation speed exceeds their motor capacity. The more neurological impairment the animals have, the sooner they fall off the rod, and the shorter the time latency is.
The advantage of the Rotarod test over the traditional visual scoring systems is that it generates an objective, measurable variable-the time latency-which can ultimately be used for statistical analyses to quantify the effects of therapies and experimental procedures3.
In the Laboratory of Neuroimmunology (LONI) at Dartmouth, mice are subjected to an adaptation protocol, where they are tested prior to TMEV infection in order to familiarize them with the machine and to assess their normal &#34;baseline&#34; balance coordination and motor control4,5. Once the baseline is established and the mice are infected with TMEV, they are tested once or twice a week over a period of several months. The actual testing protocol lasts an average of 150 days, thus allowing an assessment of the decline of balance, coordination, and motor control over the entire course of the demyelinating disease.
Several hundred TMEV-IDD and sham-treated mice have been tested so far for neurological dysfunction at Dartmouth. These mice had received various immunomodulatory treatments, but no pharmacological agent has been found to be effective in ameliorating disability progression6,7. The present article and the related protocol describe how to characterize the progressive neurological impairment displayed by TMEV-IDD mice. Particularly, the protocol offers recommendations of specific testing parameters believed to be generally suitable for studying neurological disability in TMEV-IDD mice using the Rotarod test. This procedure provides a baseline against which to assess (1) the relevance of this mouse model to progressive MS and (2) its usefulness for testing therapies aimed at treating progressive neurological conditions such as MS. Clearly, the Rotarod performance test and the current optimized testing parameters and protocol are not only useful at detecting progressive neurological disability in the TMEV-IDD mouse model, but are also useful in uncovering impairments in other virus-induced and/or genetic mouse models of neurodegenerative diseases.

<table><tbody><tr><td>Mice SJL/JCrHsd 4 to 6 weeks old</td><td>Envigo</td><td>#052</td><td></td></tr><tr><td>TMEV virus stock</td><td></td><td></td><td></td></tr><tr><td>Isoflurane vaporizer</td><td>Harvard Apparatus</td><td>#340471</td><td></td></tr><tr><td>Insulin Syringes U- 100 29 g x 0.5 cc</td><td>BD</td><td>#328203</td><td></td></tr><tr><td>Rotamex-5 4 Lane Rota-Rod for Mice with RS-232 and Software</td><td>Columbus Instruments</td><td>#0890M</td><td></td></tr></tbody></table>

measuring progressive neurological disability in a mouse model of multiple sclerosis

After intracerebral infection with the Theiler's Murine Encephalomyelitis Virus (TMEV), susceptible SJL mice develop a chronic-progressive demyelinating disease, with clinical features similar to the progressive forms of multiple sclerosis (MS). The mice show progressive disability with loss of motor and sensory functions, which can be assessed with multiple apparatuses and protocols. Among them, the Rotarod performance test is a very common behavioral test, its advantage being that it provides objective measurements, but it is often used assuming that it is straightforward and simple. In contrast to visual scoring systems used in some models of MS, which are highly subjective, the Rotarod test generates an objective, measurable, continuous variable (i.e., length of time), allowing almost perfect inter-rater concordances. However, inter-laboratory reliability is only achieved if the various testing parameters are replicated. In this manuscript, recommendations of specific testing parameters, such as size, speed, and acceleration of the rod; amount of training given to the animals; and data processing, are presented for the Rotarod test.

The aim of this representative experiment was to compare the neurological disability induced by the Daniels (DA) strain and BeAn strain of TMEV. For the purposes of the present study, a group of 32 female SJL mice were infected intracranially with TMEV, either the DA strain (n = 16) or the BeAn strain (n = 16), and their clinical signs were monitored over time. An additional group of 20 mice was sham treated (i.e., saline solution was injected intracranially) and served as healthy control group.
The Rotarod performance test was used to evaluate the chronic disease progression in TMEV-infected mice and sham controls. Mice were individually ear marked and subjected to the adaptation protocol daily in the week prior to injection of TMEV and then to the actual testing protocol that lasted 125 days. For each testing day, the running time, defined as the length of time the mouse stayed on the rod, was stored individually for each mouse as the mean of the 3 trials for that day. Rotarod data is also expressed as NFI and as sham-normalized adjNFI.
As shown in Figure 3A, infection with TMEV negatively affected the running times of the mice. A repeated-measures two-way ANOVA revealed a significant effect of TMEV infection (F = 56.76, p &#60; 0.0001) as well as a significant effect of time (F = 3.26, p &#60; 0.0001) and a time-treatment interaction (F = 8.065, p&#60; 0.0001). The following Dunnett&#39;s multiple comparisons test revealed that both groups of TMEV-infected mice had significantly lower NFI values than those of sham mice (p &#8804; 0.01; Figure 3B). The difference was statistically significant starting at day + 61 pi up to the end of the follow-up (Figure 3B). There was no difference comparing disability progression in mice infected with the BeAn strain and those infected with the DA strain at all time points (p &#62; 0.5; Figure 3C).
<img alt="Figure 1" src="/files/ftp_upload/54616/54616fig1.jpg" />
Figure 1: Intracranial Injection. To perform intracranial injections, the mouse is gas-anesthetized and restrained on a solid surface. Up to 30 &#181;l are safely injected into the mouse brain. The site of injection is approximately half way between the eye and ear line and just off the midline. A 30 G needle directly pierces the cranium, and an insulin syringe is conveniently used to prevent the needle from extending too deeply into the brain. <a href="https://www-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/54616/54616fig1large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
<img alt="Figure 2" src="/files/ftp_upload/54616/54616fig2.jpg" />

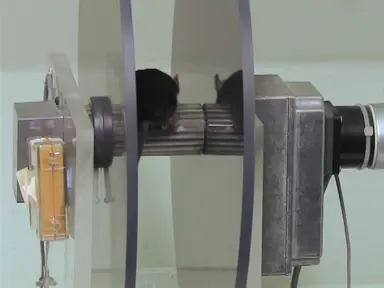

Figure 2: The Rotarod Apparatus. The Rotarod test is a standard neurobehavioral assay in which mice are trained to run on a rotating rod and are timed for how long they can stay on the rod as it slowly speeds up. The rod is suspended above a cage floor, and mice naturally try to stay on the rod to avoid falling to the ground. The drop from the rod to the base of the instrument causes no injury to the mice. A) A standard Rotarod apparatus consists of a motor-driven rod with constant or accelerating speeds. B) Panels divide the rod into separate lanes, each suited for an individual animal. A total number of 4 mice can be tested during each trial. C) The rod is 1.18 in. (about 3 cm) in diameter, and its surface is knurled, allowing the mice to get a better grip. The fall of the mouse is precisely tracked by a photo beam that automatically records the amount of time spent on the rod. The experimental data is recorded in a computer after the mice have all fallen from the rod. <a href="https://www-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/54616/54616fig2large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
<img alt="Figure 3" src="/files/ftp_upload/54616/54616fig3.jpg" />
Figure 3: Rotarod Performance Test in TMEV-infected Mice and Sham-controls. The Rotarod test was performed to measure motor function of sham, DA-infected, and BeAn-infected mice. Besides running time (sec) (A), Rotarod data were also expressed as a neurological function index (NFI) (B), and a sham-normalized adjusted NFI (adjNFI) (C). The latency to fall from an accelerating Rotarod was measured in three trials per day. Data are presented as mean &#177; standard error of the mean (SEM). Blue circle, n = 16 BeAn-infected mice; red squares, n = 16 DA-infected mice; black triangles, n = 20 sham-treated controls. <a href="https://www-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/54616/54616fig3large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>

Watch this Scientific Journal Video about Measuring Progressive Neurological Disability in a Mouse Model of Multiple Sclerosis at JoVE.com

Measuring Progressive Neurological Disability in a Mouse Model of Multiple Sclerosis

An optimized testing protocol is presented in this paper for the Rotarod performance test, used for measuring progressive neurological disability in TMEV-infected mice.

After intracerebral infection with the Theiler's Murine Encephalomyelitis Virus (TMEV), susceptible SJL mice develop a chronic-progressive demyelinating ...

measuring-progressive-neurological-disability-mouse-model-multiple

Universidad San Sebastian

Research

JoVE Journal

Neuroscience

10.9K Views.  Geisel School of Medicine at Dartmouth. An optimized testing protocol is presented in this paper for the Rotarod performance test, used for measuring progressive neurological disability in TMEV-infected mice.

Video: Measuring Progressive Neurological Disability in a Mouse Model of Multiple Sclerosis

Measuring Motor Coordination in Mice

Mice are increasingly being used in behavioral neuroscience, largely replacing rats as the behaviorist's animal of choice. Before aspects of behavior such as emotionality or cognition can be assessed, however, it is vital to determine whether the motor capabilities of e.g. a mutant or lesioned mouse allow such an assessment. Performance on a maze task requiring strength and coordination, such as the Morris water maze, might well be impaired in a mouse by motor, rather than cognitive, impairments, so it is essential to selectively dissect the latter from the former. For example, sensorimotor impairments caused by NMDA antagonists have been shown to impair water maze performance2.
Motor coordination has traditionally been assessed in mice and rats by the rotarod test, in which the animal is placed on a horizontal rod that rotates about its long axis; the animal must walk forwards to remain upright and not fall off. Both set speed and accelerating versions of the rotarod are available.
The other three tests described in this article (horizontal bar, static rods and parallel bars) all measure coordination on static apparatus. The horizontal bar also requires strength for adequate performance, particularly of the forelimbs as the mouse initially grips the bar just with the front paws.
Adult rats do not perform well on tests such as the static rods and parallel bars (personal observations); they appear less well coordinated than mice. I have only tested male rats, however, and male mice seem generally less well coordinated than females. Mice appear to have a higher strength:weight ratio than rats; the Latin name, Mus musculus, seems entirely appropriate. The rotarod, the variations of the foot fault test12 or the Catwalk (Noldus)15 apparatus are generally used to assess motor coordination in rats.

Protocols are presented for two established motor coordination tasks, the accelerating rotarod and horizontal bar, also two tests developed in Oxford recently, the static rods and parallel bars. These tests can detect motor impairments potentially of interest in their own right, as well as being possible variables in tests of other areas of behavior.

Mice are increasingly being used in behavioral neuroscience, largely replacing rats as the behaviorist's animal of choice. Before aspects of behavior such ...

Clinical Testing and Spinal Cord Removal in a Mouse Model for Amyotrophic Lateral Sclerosis (ALS)

Amyotrophic lateral sclerosis (ALS) is a fatal neurodegenerative disorder resulting in progressive degeneration of motoneurons. Peak of onset is around 60 years for the sporadic disease and around 50 years for the familial disease. Due to its progressive course, 50% of the patients die within 30 months of symptom onset. In order to evaluate novel treatment options for this disease, genetic mouse models of ALS have been generated based on human familial mutations in the SOD gene, such as the SOD1 (G93A) mutation. Most important aspects that have to be evaluated in the model are overall survival, clinical course and motor function. Here, we demonstrate the clinical evaluation, show the conduction of two behavioural motor tests and provide quantitative scoring systems for all parameters. Because an in depth analysis of the ALS mouse model usually requires an immunohistochemical examination of the spinal cord, we demonstrate its preparation in detail applying the dorsal laminectomy method. Exemplary histological findings are demonstrated. The comprehensive application of the depicted examination methods in studies on the mouse model of ALS will enable the researcher to reliably test future therapeutic options which can provide a basis for later human clinical trials.

Clinical Testing and Spinal Cord Removal in a Mouse Model for Amyotrophic Lateral Sclerosis ALS

A mouse model for amyotrophic lateral sclerosis (ALS) is examined clinically and behaviorally. As a prerequisite for an accompanying immunohistological analysis the preparation of the spinal cord is depicted in detail.

Amyotrophic lateral sclerosis (ALS) is a fatal neurodegenerative disorder resulting in progressive degeneration of motoneurons. Peak of onset is around 60 ...

Medicine

A Quick Phenotypic Neurological Scoring System for Evaluating Disease Progression in the SOD1-G93A Mouse Model of ALS

The SOD1-G93A transgenic mouse is the most widely used animal model of amyotrophic lateral sclerosis (ALS). At ALS TDI we developed a phenotypic screening protocol, demonstrated in video herein, which reliably assesses the neuromuscular function of SOD1-G93A mice in a quick manner. This protocol encompasses a simple neurological scoring system (NeuroScore) designed to assess hindlimb function. NeuroScore is focused on hindlimb function because hindlimb deficits are the earliest reported neurological sign of disease in SOD1-G93A mice. The protocol developed by ALS TDI provides an unbiased assessment of onset of paresis (slight or partial paralysis), progression and severity of paralysis and it is sensitive enough to identify drug-induced changes in disease progression. In this report, the combination of a detailed manuscript with video minimizes scoring ambiguities and inter-experimenter variability thus allowing for the protocol to be adopted by other laboratories and enabling comparisons between studies taking place at different settings. We believe that this video protocol can serve as an excellent training tool for present and future ALS researchers.

This video protocol describes a sensitive, reliable, and quick method for evaluating the neuromuscular deficits in a transgenic mouse model of amyotrophic lateral sclerosis.

The SOD1-G93A transgenic mouse is the most widely used animal model of amyotrophic lateral sclerosis (ALS). At ALS TDI we developed a phenotypic screening ...

Sagittal Plane Kinematic Gait Analysis in C57BL/6 Mice Subjected to MOG35-55 Induced Experimental Autoimmune Encephalomyelitis

Kinematic gait analysis in the sagittal plane has frequently been used to characterize motor deficits in multiple sclerosis (MS). We describe the application of these techniques to identify gait deficits in a mouse model of MS, known as experimental autoimmune encephalomyelitis (EAE). Paralysis and motor deficits in mice subjected to EAE are typically assessed using a clinical scoring scale. However, this scale yields only ordinal data that provides little information about the precise nature of the motor deficits. EAE disease severity has also been assessed by rotarod performance, which provides a measure of general motor coordination. By contrast, kinematic gait analysis of the hind limb in the sagittal plane generates highly precise information about how movement is impaired. To perform this procedure, reflective markers are placed on a hind limb to detect joint movement while a mouse is walking on a treadmill. Motion analysis software is used to measure movement of the markers during walking. Kinematic gait parameters are then derived from the resultant data. We show how these gait parameters can be used to quantify impaired movements of the hip, knee, and ankle joints in EAE. These techniques may be used to better understand disease mechanisms and identify potential treatments for MS and other neurodegenerative disorders that impair mobility.

Kinematic gait analysis in the sagittal plane yields highly precise information about how movement is executed. We describe the application of these techniques to identify gait deficits for mice subjected to autoimmune-mediated demyelination. These methods may also be used to characterize gait deficits for other mouse models featuring impaired locomotion.

Kinematic gait analysis in the sagittal plane has frequently been used to characterize motor deficits in multiple sclerosis (MS). We describe the ...

Bioluminescence and Near-infrared Imaging of Optic Neuritis and Brain Inflammation in the EAE Model of Multiple Sclerosis in Mice

Experimental autoimmune encephalomyelitis (EAE) in SJL/J mice is a model for relapsing-remitting multiple sclerosis (RRMS). Clinical EAE scores describing motor function deficits are basic readouts of the immune-mediated inflammation of the spinal cord. However, scores and body weight do not allow for an in vivo assessment of brain inflammation and optic neuritis. The latter is an early and frequent manifestation in about 2/3 of MS patients. Here, we show methods for bioluminescence and near-infrared live imaging to assess EAE evoked optic neuritis, brain inflammation, and blood-brain barrier (BBB) disruption in living mice using an in vivo imaging system. A bioluminescent substrate activated by oxidases primarily showed optic neuritis. The signal was specific and allowed the visualization of medication effects and disease time courses, which paralleled the clinical scores. Pegylated fluorescent nanoparticles that remained within the vasculature for extended periods of time were used to assess the BBB integrity. Near-infrared imaging revealed a BBB leak at the peak of the disease. The signal was the strongest around the eyes. A near-infrared substrate for matrix metalloproteinases was used to assess EAE-evoked inflammation. Auto-fluorescence interfered with the signal, requiring spectral unmixing for quantification. Overall, bioluminescence imaging was a reliable method to assess EAE-associated optic neuritis and medication effects and was superior to the near-infrared techniques in terms of signal specificity, robustness, ease of quantification, and cost.

We show a technique for in vivo live bioluminescence and near-infrared imaging of optic neuritis and encephalitis in the experimental autoimmune encephalomyelitis (EAE) model for multiple sclerosis in SJL/J mice.

Experimental autoimmune encephalomyelitis (EAE) in SJL/J mice is a model for relapsing-remitting multiple sclerosis (RRMS). Clinical EAE scores describing ...

In Vivo Electrophysiological Measurement of Compound Muscle Action Potential from the Forelimbs in Mouse Models of Motor Neuron Degeneration

Assessing the functionality of the nerve axon provides detailed information on the progression of neuromuscular disorders. Electrophysiological recordings provide a sensitive approach to measure nerve conduction in humans and rodent models. To broaden the technical possibilities for electromyography in mice, the measurement of compound muscle action potentials (CMAPs) from the brachial plexus nerve in the forelimb using needle electrodes is described here. CMAP recordings after stimulating the sciatic nerve in hindlimbs have been previously described. The newly introduced method here allows for the evaluation of the nerve conductivity at an additional site, and thus provides a more profound overview of the neuromuscular functionality. The technique provides information on both the relative number of functional axons and the myelination level. Thereby, this method can be applied to assess both axonal diseases as well as demyelinating conditions. This minimally invasive method does not require extraction of the nerve and therefore it is suitable for repeated measurements for longitudinal follow-up in the same animal. Similar recordings are performed in clinical setups to emphasize the translational relevance of the method.

In Vivo Electrophysiological Measurement of Compound Muscle Action Potential from the Forelimbs in Mouse Models of Motor Neuron Degeneration

The measurement of nerve conduction is a useful tool to assess mouse models of neurodegeneration but it is frequently only applied to stimulate the sciatic nerve in hindlimbs. Here, we describe a technique to measure compound muscle action potential (CMAP) in vivo in the mouse forelimb muscles innervated by the brachial plexus.

Assessing the functionality of the nerve axon provides detailed information on the progression of neuromuscular disorders. Electrophysiological recordings ...

Histological Staining of Spinal Cord for Assessing EAE Disease Severity

Scoring Central Nervous System Inflammation, Demyelination, and Axon Injury in Experimental Autoimmune Encephalomyelitis

Experimental autoimmune encephalomyelitis (EAE) is a common immune-based model of multiple sclerosis (MS). This disease can be induced in rodents by active immunization with protein components of the myelin sheath and Complete Freund&#39;s adjuvant (CFA) or by the transfer of myelin-specific T effector cells from rodents primed with myelin protein/CFA into na&#239;ve rodents. The severity of EAE is typically scored on a 5-point clinical scale that measures the degree of ascending paralysis, but this scale is not optimal for assessing the extent of recovery from EAE. For example, clinical scores remain high in some EAE models (e.g., myelin oligodendrocyte glycoprotein [MOG] peptide-induced model of EAE) despite the resolution of inflammation. Thus, it is important to complement clinical scoring with histological scoring of EAE, which also provides a means to study the underlying mechanisms of cellular injury in the central nervous system (CNS).
Here, a simple protocol is presented to prepare and stain spinal cord and brain sections from mice and to score inflammation, demyelination, and axonal injury in the spinal cord. The method for scoring leukocyte infiltration in the spinal cord can also be applied to score brain inflammation in EAE. A protocol for measuring soluble neurofilament light (sNF-L) in the serum of mice using a Small Molecule Assay (SIMOA) assay is also described, which provides&#160;feedback on the extent of overall CNS injury in live mice.

Author Spotlight: Unveiling the Pathway Linking Obesity to Autoimmune Inflammation in Multiple Sclerosis

Experimental autoimmune encephalomyelitis (EAE) serves as an animal model of multiple sclerosis. This article describes an approach for scoring spinal cord inflammation, demyelination, and axonal injury in EAE. Additionally, a method to quantify soluble neurofilament light levels in the mice serum is presented, facilitating the assessment of axonal injury in live mice.

Experimental autoimmune encephalomyelitis (EAE) is a common immune-based model of multiple sclerosis (MS). This disease can be induced in rodents by ...

Immunology and Infection

Quantifying Locomotor Dysfunction in Spinal Cord Injury Mice Using MouseWalker

Using the MouseWalker to Quantify Locomotor Dysfunction in a Mouse Model of Spinal Cord Injury

The execution of complex and highly coordinated motor programs, such as walking and running, is dependent on the rhythmic activation of spinal and supra-spinal circuits. After a thoracic spinal cord injury, communication with upstream circuits is impaired. This, in turn, leads to a loss of coordination, with limited recovery potential. Hence, to better evaluate the degree of recovery after the administration of drugs or therapies, there is a necessity for new, more detailed, and accurate tools to quantify gait, limb coordination, and other fine aspects of locomotor behavior in animal models of spinal cord injury. Several assays have been developed over the years to quantitatively assess free-walking behavior in rodents; however, they usually lack direct measurements related to stepping gait strategies, footprint patterns, and coordination. To address these shortcomings, an updated version of the MouseWalker, which combines a frustrated total internal reflection (fTIR) walkway with tracking and quantification software, is provided. This open-source system has been adapted to extract several graphical outputs and kinematic parameters, and a set of post-quantification tools can be to analyze the output data provided. This manuscript also demonstrates how this method, allied with already established behavioral tests, quantitatively describes locomotor deficits following spinal cord injury.

Author Spotlight: Using the MouseWalker to Quantify Locomotor Dysfunction in a Mouse Model of Spinal Cord Injury

An experimental pipeline to quantitatively describe the locomotor pattern of freely walking mice using the MouseWalker (MW) toolbox is provided, ranging from initial video recordings and tracking to post-quantification analysis. A spinal cord contusion injury model in mice is employed to demonstrate the usefulness of the MW system.

The execution of complex and highly coordinated motor programs, such as walking and running, is dependent on the rhythmic activation of spinal and ...

Induction and Evaluation of Experimental Autoimmune Encephalomyelitis in Mouse

Modeling Multiple Sclerosis in the Two Sexes: MOG35-55-Induced Experimental Autoimmune Encephalomyelitis

Multiple Sclerosis (MS) is a chronic autoimmune inflammatory disease affecting the central nervous system (CNS). It is characterized by different prevalence in the sexes, affecting more women than men, and different outcomes, showing more aggressive forms in men than in women. Furthermore, MS is highly heterogeneous in terms of clinical aspects, radiological, and pathological features. Thus, it is necessary to take advantage of experimental animal models that allow the investigation of as many aspects of the pathology as possible. Experimental autoimmune encephalomyelitis (EAE) represents one of the most used models of MS in mice, modeling different disease features, from the activation of the immune system to CNS damage. Here we describe a protocol for the induction of EAE in both male and female C57BL/6J mice using myelin oligodendrocyte glycoprotein peptide 35-55 (MOG35-55) immunization, which leads to the development of a chronic form of the disease. We also report the evaluation of the daily clinical score and motor performance of these mice for 28 days post immunization (28 dpi). Lastly, we illustrate some basic histological analysis at the CNS level, focusing on the spinal cord as the primary site of disease-induced damage.

Author Spotlight: Creating a Versatile Experimental Autoimmune Encephalomyelitis Model Relevant for Both Male and Female Mice

Experimental autoimmune encephalomyelitis is one of the most widely used murine models of multiple sclerosis. In the current protocol, C57BL/6J mice of both sexes are immunized with myelin oligodendrocyte glycoprotein peptide, resulting mainly in ascending paresis of the tail and limbs. Here we discuss the protocol of EAE induction and evaluation.

Multiple Sclerosis (MS) is a chronic autoimmune inflammatory disease affecting the central nervous system (CNS). It is characterized by different ...

The Mouse Stroke Unit Protocol with Standardized Neurological Scoring for Translational Mouse Stroke Studies

The filament model of middle artery occlusion (fMCAo) is perhaps the most translational mouse stroke model, allowing for controlled ischemia with intravascular reperfusion/recanalization. However, it lacks alignment with current clinical advances for stroke care (e.g., Stroke Units), usually employs subjective or vague neurological scoring among laboratories, and exhibits high acute-phase mortality. Here, we address these limitations with validated video-guided protocols. We present the mouse Stroke Unit (mSU) protocol with instructional videos and a decision algorithm (Risk Stratification Score), bridging the gap between clinical and mouse stroke modeling. To increase accuracy and sensitivity of stroke neurological scoring, we present for the first time a video-standardized format of the focal Experimental Stroke Scale (fESS) and prove its value up to 6 months post-stroke. Additionally, protocols for mice Ladder-rung test, as well as the known Cylinder test, for unbiased, quantitative assessment of limbs&#180; motor function are presented. Results highlight mSU&#39;s translational efficacy. Focal ESS (fESS) excels over other known scales in detecting focal stroke deficits, capturing recovery, and maintaining sensitivity for up to 6 months post-stroke. Ladder-rung and Cylinder tests objectively quantify and monitor fore- and hind-limb motor deficits, long-term. In summary, integrating mSU, fESS, and motor function tests provides a robust framework for clinically relevant stroke investigations. Our protocols improve the translational value in mouse stroke research.

This article presents a protocol for executing the highly translational and independently proven mouse Stroke Unit (mSU) concept in large-stroke mice. It also provides a standardized protocol for executing the focal experimental stroke scale in mice, which evaluates stroke focal deficits detected even long-term.

Measuring Progressive Neurological Disability in a Mouse Model of Multiple Sclerosis

Summary

Explore More Videos

Chapters in this video

Measuring Motor Coordination in Mice

Clinical Testing and Spinal Cord Removal in a Mouse Model for Amyotrophic Lateral Sclerosis (ALS)

A Quick Phenotypic Neurological Scoring System for Evaluating Disease Progression in the SOD1-G93A Mouse Model of ALS

Sagittal Plane Kinematic Gait Analysis in C57BL/6 Mice Subjected to MOG35-55 Induced Experimental Autoimmune Encephalomyelitis

Bioluminescence and Near-infrared Imaging of Optic Neuritis and Brain Inflammation in the EAE Model of Multiple Sclerosis in Mice

In Vivo Electrophysiological Measurement of Compound Muscle Action Potential from the Forelimbs in Mouse Models of Motor Neuron Degeneration

Scoring Central Nervous System Inflammation, Demyelination, and Axon Injury in Experimental Autoimmune Encephalomyelitis

Using the MouseWalker to Quantify Locomotor Dysfunction in a Mouse Model of Spinal Cord Injury

Modeling Multiple Sclerosis in the Two Sexes: MOG_35-55-Induced Experimental Autoimmune Encephalomyelitis

The Mouse Stroke Unit Protocol with Standardized Neurological Scoring for Translational Mouse Stroke Studies
