Name: intravenous endotoxin challenge in healthy humans: an experimental platform to investigate and modulate systemic inflammation
Uploaded: 2016-05-16T14:00:00.000+00:00
Duration: 7 min 48 s
Description: Watch this Scientific Journal Video about Intravenous Endotoxin Challenge in Healthy Humans: An Experimental Platform to Investigate and Modulate Systemic Inflammation at JoVE.com

The authors would like to thank Dr. Anthony Suffredini (Critical Care Medicine Department, National Institutes for Health Clinical Center, Bethesda, USA) for his careful review of the manuscript and many thoughtful suggestions. We would also like to thank the National Institutes of Health for making freely available the Clinical Center Reference Endotoxin employed within this study.
JNF and DWG are funded by the Wellcome Trust, which supported the generation of the described data and the publication of this article.

University College London REC (UK) approved the study that generated the data presented in the representative results section (Reference 5060/001).
ETHICAL APPROVAL:
The majority of studies using IV endotoxin challenges have been conducted in healthy subjects. As this research has no health benefit, the importance of the study objectives should clearly outweigh any inherent risks. This is relevant when considering the interactions with novel agents used to modify inflammation and that have the potential to exaggerate host responses to endotoxin (e.g.,&#160;fever, changes in blood pressures, symptoms).
Prior to the commencement of any study employing IV endotoxin, approval must be sought and obtained from an appropriate Research Ethics Committee (REC) / Institutional Review Board (IRB). IV endotoxin administration has been employed for over forty years to gain important mechanistic insights into human biology with no serious or lasting adverse effects to our, or other author&#39;s, knowledge19. Given the model&#39;s potential to yield vital information pertaining to multiple inflammatory conditions that are major causes of mortality and morbidity, we believe it is ethically acceptable to expose healthy volunteers and defined demographic or clinical groups to endotoxin, provided appropriate risk minimization strategies are in place. This may require independent outside review by qualified experts and or pilot studies to ensure safe conduct of the investigations, particularly when employing new agents and their interaction with endotoxin- induced inflammation.
Preparation&#160;
1. Determine the Demographic and Clinical Characteristics of Participants
NOTE: The majority of studies employing IV endotoxin challenge recruit healthy young male volunteers &#60; 30 year old. Studies have additionally been undertaken on healthy women23, older volunteers24,25 and patient subgroups26 depending on the experimental question. Elderly participants (i.e., greater than 60 years of age) may have a greater and more sustained response (higher fever, greater decrease in blood pressure), and interactions of endotoxin-induced inflammation with any co-morbid conditions or medications must be considered in the design of these studies. Please see discussion for further considerations in participant selection.
2. Recruit Participants&#160;
<ol>
	<li>Arrange suitable advertisement as required.
	NOTE: Financial compensation for participant&#8217;s time and inconvenience is commonly offered. This must be established prior to recruitment and approved by a REC/IRB.</li>
	<li>Issue a REC/IRB approved Participant Information Leaflet (PIL) explaining the nature of the study, an overview of the protocol, expected side effects, and risks associated with IV endotoxin to respondents meeting inclusion criteria.
	NOTE: This should be issued in advance of consenting to allow an informed decision to be made to participate and for any questions or concerns to be addressed by the researcher.</li>
</ol>
3. Obtain Formal Informed Consent
<ol>
	<li>Obtain written consent from all participants prior to undertaking any study-related procedure, including health screening.</li>
	<li>Seek verbal confirmation of participant retention and understanding of the information in the PIL.</li>
	<li>Discuss side effects of IV endotoxin administration.
	NOTE: At higher doses (2 - 4 ng/kg) these include rigors (chills), headache, photophobia, myalgia, arthralgia, nausea, and rarely, vomiting. Peak symptom intensity occurs around 1 - 2 hr post-injection, abating afterwards to baseline by 6 - 8 hr. No severe or sustained adverse effects secondary to endotoxin at these doses have been reported. Rarely, a volunteer may find the degree of symptoms unacceptable during the height of the response. The symptoms can be ameliorated with administration of paracetamol/acetaminophen or non-steroidal agents by mouth or IV (e.g., aspirin, ibuprofen). Such agents may alter the inflammatory response and their use should be recorded.</li>
	<li>Re-affirm the ability of participants to withdraw from the study at any point without giving an explanation.</li>
</ol>
4. Undertake a &#39;Health Screen&#39; on Potential Participants
NOTE: This is to ensure the absence of undisclosed medical conditions that place them at greater risk of harm from IV endotoxin. As a secondary aim information relevant to the experimental question may be identified.&#160;
<ol>
	<li>Identify a suitable clinical environment and an appropriately trained medical professional to conduct the health screen.</li>
	<li>Take a full clinical history including past medical and social histories, past and on-going medication/treatments, novel health foods or over the counter pharmaceuticals, allergy status and an enquiry into the presence of current symptoms that may suggest new or recent illness.</li>
	<li>Perform a formal clinical examination of, as a minimum, the cardiovascular and respiratory system.</li>
	<li>Arrange and review core investigations including routine observations (weight, heart rate, blood pressure, respiratory rate, oxygen saturations, temperature), blood work (full blood count, renal, hepatic and coagulation functional tests), and 12-lead electrocardiogram.
	NOTE: Additional tests may be required according to the experimental protocol.</li>
	<li>Have the participants with unremarkable history, examination and investigations proceed to IV endotoxin challenge, dependent on REC/IRB-approved inclusion/exclusion criteria.
	NOTE: It is best practice for newly detected symptoms, signs or test abnormalities to be reported to and investigated by the participant&#8217;s routine physician. These individuals should be excluded until any concern has been appropriately addressed.</li>
</ol>
5. Inform Participants Proceeding to IV Endotoxin Challenge to;&#160;
<ol>
	<li>Notify the investigator of any new symptoms or illness.
	NOTE: This will normally preclude their entry into the study.</li>
	<li>Ask the participants arrive at a pre-stated time and location. Advise the participants to wear comfortable clothes and bring entertainment.</li>
	<li>Ask the participants to fast from midnight (clear fluids permitted).</li>
	<li>Ask the participants to refrain from alcohol and caffeine for 24 hr prior to injection and/or a pre-defined period afterwards (optional and protocol dependent)&#12290;</li>
</ol>
Procedure
6. Endotoxin Challenge (Prior to Endotoxin Administration)
<ol>
	<li>Prepare a bed with the head at 45&#176;.
	NOTE: Ensure this is located in an appropriate location to gain clinical assistance and resuscitation equipment. For instance, a Clinical Research Facility, anesthetic room or intensive care unit.</li>
	<li>Ensure the required clinical and experimental equipment is accessible and functioning.
	NOTE: This includes a sphygmomanometer, thermometer, pulse oximeter and, if being employed, 3-lead cardiac monitoring. Verify completeness of local resuscitation equipment and accessibility of oxygen.</li>
	<li>Reconstitute Clinical Center Reference Endotoxin
	<ol>
		<li>Add 5 ml of Sterile Water for Injection, USP (SWI) to a previously un-reconstituted vial of CCRE using full aseptic non-touch technique (ANTT) throughout. Vials contain 10,000 endotoxin units (EU) (approximately 1 &#181;g) in the form of a white, lyophilized powder.</li>
		<li>Place the vial of CCRE with 5 ml SWI added on a vortex shaker for 1 hr to ensure endotoxin adherent to the glass surface of the vial is fully dissolved.
		NOTE: CCRE does not go into solution readily, despite appearing to have fully-dissolved.</li>
		<li>Draw the correct weight-adjusted volume of endotoxin (now 2,000 EU/ml or roughly 200 ng/ml) into a 1 ml syringe.
		NOTE: Use glass or polypropylene syringes to minimize adherence (and loss) of endotoxin to equipment.</li>
	</ol>
	</li>
	<li>Participant
	<ol>
		<li>Confirm consent to proceed with IV endotoxin administration. Enquire about new illness, symptoms and compliance with protocol specific instructions.
		NOTE: If there is medical concern or non-compliance endotoxin, delay the administration.</li>
		<li>Ask the participant to lie in the prepared bed, confirming they are comfortable. Ensure they have voided bladder and bowel.</li>
	</ol>
	</li>
	<li>Obtain vascular access.
	<ol>
		<li>Insert an intravenous cannula under ANTT for the administration of endotoxin, and if included in the protocol, intravenous fluids.</li>
		<li>Place a second intravascular line for on-going blood draw to avoid repeated venous stab. Insert this intravenously and connect to a 3-way tap (with or without an extension) to facilitate blood draw and flushing.
		NOTE: Alternatively, for continuous blood pressure monitoring and sample acquisition, site an intra-arterial line. This requires greater expertise for insertion and there is an increased risk of local complications.
		<ol>
			<li>For on-going blood draw using intravenous cannula, use an 18 gauge or larger bore cannula along with a siting in the antecubital fossa to avoid hemolysis and clotting. IV fluid administration will help maintain patency.
			NOTE: Selection of intravascular cannula insertion type and site should take place according to individual practitioner and participant preference. Intra-arterial lines are traditionally placed in the radial or femoral artery with prior instillation of local anesthetic (e.g., 1% Lidocaine).</li>
		</ol>
		</li>
		<li>Draw blood for baseline tests upon insertion of either the first or second line. Discard the first 5 ml of blood (occupying dead-space within the cannula and connectors) prior to obtaining blood for sampling. Flush the line with 10 ml of 0.9% sodium chloride after blood draw.
		NOTE: The volume of blood drawn and handling of the samples will be determined by the experimental protocol and local laboratory procedures.</li>
		<li>Attach clinical monitoring as appropriate (e.g., 3-lead cardiac monitoring is usually employed with higher dose challenges 2 - 4 ng/kg).</li>
		<li>Record baseline routine clinical observations as stated in 4.4 on an appropriate vital sign chart. Subjective symptom scoring (e.g., using visual analogue scores for headache, myalgia, etc.) should additionally be performed to monitor the participant experience.</li>
	</ol>
	</li>
	<li>Endotoxin Administration
	<ol>
		<li>Flush the intravenous cannula with 0.9% sodium chloride to ensure the cannula is correctly sited and patent.</li>
		<li>Administer the pre-prepared, weight-adjusted dose of reconstituted CCRE via the same intravenous cannula. Inject the bolus (&#60; 2 min) dose into a 3-way tap at the hub of the IV line.</li>
		<li>Flush with 10 ml 0.9% sodium chloride to ensure all CCRE enters the circulation.
		NOTE: To administer a continuous infusions inject the endotoxin into a known volume of diluent, e.g., 100 ml of 0.9% sodium chloride to achieve a pre-determined concentration, and infuse the resultant solution at a set rate (volume/time).</li>
	</ol>
	</li>
</ol>
7. Monitoring, Observation and Sample Draw
<ol>
	<li>Monitor participants undergoing IV endotoxin for a minimum of 6 hr after bolus dosing or for the duration of an infusion. Have a qualified, experienced clinician perform this step.</li>
	<li>Record and review vital signs and any clinical observations at a minimum of once/hr. Continuous monitoring such as 3-lead cardiac monitoring may additionally be undertaken.
	NOTE: Investigators should note that at higher bolus doses (2 - 4 ng/kg) vasovagal reactions may provoke cardiac pauses. These are most frequent 30 min to 2 hr after injection and are not malignant (see discussion for further details).</li>
	<li>Undertake subjective symptom scoring at the discretion of the investigator.</li>
	<li>Administer 2 - 3 L of crystalloid (for instance 0.9% sodium chloride or Hartmann&#39;s solution) over 6 - 8 hr after bolus administration of 2 - 4 ng/kg.
	NOTE: No acceptable standard exists for administration of the above mentioned fluids.&#160; Safety of participants is paramount. This provides routine maintenance fluid and volume replacement (for the period kept nil by mouth and increased insensible losses due to raised body temperature and respiratory rate). They may also counter the risk of cardiac arrhythmias (see discussion).</li>
	<li>Obtain pre-determined samples required to answer the experimental question.
	NOTE: These traditionally include, but are not limited to, blood and urine. The timing, number and volume of samples should be the minimum required to obtain accurate data and have been approved by the REC/IRB. More frequent sampling may be required at certain time points (e.g., every 30 min) to ensure peak (or trough) values are not missed. Calculations of blood volume taken must account for blood discarded during withdrawal of dead space.</li>
	<li>Process samples as required.</li>
</ol>
8. End of Procedure
<ol>
	<li>Have the attending clinician ensure that the participant&#39;s symptoms have settled and that their observations are trending to normal (all altered parameters, e.g., elevated heart rate and temperature, demonstrating consistent reduction toward baseline values) prior to sanctioning the end of observation and subsequent discharge.
	NOTE: After bolus injection of 2 - 4 ng/kg CCRE symptoms normally fully abate by 6 - 8 hr. Individual observations follow overlapping but discrete time-courses. These have normally returned to baseline by 10 - 12 hr. Continuous infusion requires a longer period of observation as symptoms and vital signs will not subside immediately post cessation of endotoxin administration.</li>
	<li>Remove all monitoring equipment and intravascular lines ensuring hemostasis.</li>
	<li>Confirm the participant is happy to return home and has the contact details of investigator in case of any concern.
	NOTE: It is considered best practice to contact the participant the following day to check their health status and monitor for any sequelae.</li>
</ol>

<ol>
	<li>Nathan, C., Ding, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Nonresolving+inflammation.">Nonresolving inflammation.</a> Cell. 140 (6), 871-882 (2010).</li><li>Adhikari, N. K., Fowler, R. A., Bhagwanjee, S., Rubenfeld, G. D. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Critical+care+and+the+global+burden+of+critical+illness+in+adults.">Critical care and the global burden of critical illness in adults.</a> Lancet. 376 (9749), 1339-1346 (2010).</li><li>Xu, J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Extracellular+histones+are+major+mediators+of+death+in+sepsis.">Extracellular histones are major mediators of death in sepsis.</a> Nature medicine. 15 (11), 1318-1321 (2009).</li><li>Zhang, Q., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Circulating+mitochondrial+DAMPs+cause+inflammatory+responses+to+injury.">Circulating mitochondrial DAMPs cause inflammatory responses to injury.</a> Nature. 464 (7285), 104-107 (2010).</li><li>Lorne, E., Dupont, H., Abraham, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Toll-like+receptors+2+and+4:+initiators+of+non-septic+inflammation+in+critical+care+medicine?.">Toll-like receptors 2 and 4: initiators of non-septic inflammation in critical care medicine?.</a> Intensive care medicine. 36 (11), 1826-1835 (2010).</li><li>Brightbill, H. D., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Host+defense+mechanisms+triggered+by+microbial+lipoproteins+through+toll-like+receptors.">Host defense mechanisms triggered by microbial lipoproteins through toll-like receptors.</a> Science. 285 (5428), 732-736 (1999).</li><li>Zhang, G., Ghosh, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Toll-like+receptor-mediated+NF-kappaB+activation:+a+phylogenetically+conserved+paradigm+in+innate+immunity.">Toll-like receptor-mediated NF-kappaB activation: a phylogenetically conserved paradigm in innate immunity.</a> J Clin Invest. 107 (1), 13-19 (2001).</li><li>Lawrence, T., Gilroy, D. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Chronic+inflammation:+a+failure+of+resolution?.">Chronic inflammation: a failure of resolution?.</a> International journal of experimental pathology. 88 (2), 85-94 (2007).</li><li>Fullerton, J. N., O'Brien, A. J., Gilroy, D. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Pathways+mediating+resolution+of+inflammation:+when+enough+is+too+much.">Pathways mediating resolution of inflammation: when enough is too much.</a> The Journal of pathology. 231, 8-20 (2013).</li><li>Fullerton, J. N., O'Brien, A. J., Gilroy, D. W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Lipid+mediators+in+immune+dysfunction+after+severe+inflammation.">Lipid mediators in immune dysfunction after severe inflammation.</a> Trends in Immunology. 35 (1), 12-21 (2014).</li><li>Seok, J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Genomic+responses+in+mouse+models+poorly+mimic+human+inflammatory+diseases.">Genomic responses in mouse models poorly mimic human inflammatory diseases.</a> Proceedings of the National Academy of Sciences of the United States of America. 110 (9), 3507-3512 (2013).</li><li>Zolfaghari, P. S., Pinto, B. B., Dyson, A., Singer, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+metabolic+phenotype+of+rodent+sepsis:+cause+for+concern.">The metabolic phenotype of rodent sepsis: cause for concern.</a> Intensive Care Medicine Experimental. 1 (6), (2013).</li><li>Dyson, A., Singer, M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Animal+models+of+sepsis:+why+does+preclinical+efficacy+fail+to+translate+to+the+clinical+setting.">Animal models of sepsis: why does preclinical efficacy fail to translate to the clinical setting.</a> Critical care medicine. 37 (1 Suppl), S30-S37 (2009).</li><li>Rittirsch, D., Hoesel, L. M., Ward, P. A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+disconnect+between+animal+models+of+sepsis+and+human+sepsis.">The disconnect between animal models of sepsis and human sepsis.</a> Journal of leukocyte biology. 81 (1), 137-143 (2007).</li><li>van der Worp, H. B., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Can+animal+models+of+disease+reliably+inform+human+studies?.">Can animal models of disease reliably inform human studies?.</a> PLoS Med. 7 (3), e1000245 (2010).</li><li>Calvano, S. E., Coyle, S. M. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Experimental+human+endotoxemia:+a+model+of+the+systemic+inflammatory+response+syndrome?.">Experimental human endotoxemia: a model of the systemic inflammatory response syndrome?.</a> Surgical infections. 13 (5), 293-299 (2012).</li><li>Suffredini, A. F., Noveck, R. J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Human+endotoxin+administration+as+an+experimental+model+in+drug+development.">Human endotoxin administration as an experimental model in drug development.</a> Clin Pharmacol Ther. 96 (4), 418-422 (2014).</li><li>Lowry, S. F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Human+endotoxemia:+a+model+for+mechanistic+insight+and+therapeutic+targeting.">Human endotoxemia: a model for mechanistic insight and therapeutic targeting.</a> Shock. 24, 94-100 (2005).</li><li>Andreasen, A. S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Human+endotoxemia+as+a+model+of+systemic+inflammation.">Human endotoxemia as a model of systemic inflammation.</a> Current Medicinal Chemistry. 15 (17), 1697-1705 (2008).</li><li>Thorn, J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+inflammatory+response+in+humans+after+inhalation+of+bacterial+endotoxin:+a+review.">The inflammatory response in humans after inhalation of bacterial endotoxin: a review.</a> Inflamm Res. 50 (5), 254-261 (2001).</li><li>Basran, A., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Roles+of+neutrophils+in+the+regulation+of+the+extent+of+human+inflammation+through+delivery+of+IL-1+and+clearance+of+chemokines.">Roles of neutrophils in the regulation of the extent of human inflammation through delivery of IL-1 and clearance of chemokines.</a> Journal of leukocyte biology. 93 (1), 7-19 (2013).</li><li>Plovsing, R. R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Transcompartmental+inflammatory+responses+in+humans:+IV+versus+endobronchial+administration+of+endotoxin*.">Transcompartmental inflammatory responses in humans: IV versus endobronchial administration of endotoxin*.</a> Crit Care Med. 42 (7), 1658-1665 (2014).</li><li>van Eijk, L. T., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Gender+differences+in+the+innate+immune+response+and+vascular+reactivity+following+the+administration+of+endotoxin+to+human+volunteers.">Gender differences in the innate immune response and vascular reactivity following the administration of endotoxin to human volunteers.</a> Crit Care Med. 35 (6), 1464-1469 (2007).</li><li>Krabbe, K. S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Ageing+is+associated+with+a+prolonged+fever+response+in+human+endotoxemia.">Ageing is associated with a prolonged fever response in human endotoxemia.</a> Clin Diagn Lab Immunol. 8 (2), 333-338 (2001).</li><li>Krabbe, K. S., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Hypotension+during+endotoxemia+in+aged+humans.">Hypotension during endotoxemia in aged humans.</a> Eur J Anaesthesiol. 18 (9), 572-575 (2001).</li><li>Engelhardt, R., Mackensen, A., Galanos, C., Andreesen, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Biological+response+to+intravenously+administered+endotoxin+in+patients+with+advanced+cancer.">Biological response to intravenously administered endotoxin in patients with advanced cancer.</a> J Biol Response Mod. 9 (5), 480-491 (1990).</li><li>Patel, P. N., Shah, R. Y., Ferguson, J. F., Reilly, M. P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Human+experimental+endotoxemia+in+modeling+the+pathophysiology,+genomics,+and+therapeutics+of+innate+immunity+in+complex+cardiometabolic+diseases.">Human experimental endotoxemia in modeling the pathophysiology, genomics, and therapeutics of innate immunity in complex cardiometabolic diseases.</a> Arterioscler Thromb Vasc Biol. 35 (3), 525-534 (2015).</li><li>Michie, H. R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Tumor+necrosis+factor+and+endotoxin+induce+similar+metabolic+responses+in+human+beings.">Tumor necrosis factor and endotoxin induce similar metabolic responses in human beings.</a> Surgery. 104 (2), 280-286 (1988).</li><li>van Deventer, S. J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Experimental+endotoxemia+in+humans:+analysis+of+cytokine+release+and+coagulation,+fibrinolytic,+and+complement+pathways.">Experimental endotoxemia in humans: analysis of cytokine release and coagulation, fibrinolytic, and complement pathways.</a> Blood. 76 (12), 2520-2526 (1990).</li><li>Fong, Y. M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+acute+splanchnic+and+peripheral+tissue+metabolic+response+to+endotoxin+in+humans.">The acute splanchnic and peripheral tissue metabolic response to endotoxin in humans.</a> The Journal of clinical investigation. 85 (6), 1896-1904 (1990).</li><li>Stephens, R. C., O'Malley, C. M., Frumento, R. J., Mythen, M. G., Bennett-Guerrero, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Low-dose+endotoxin+elicits+variability+in+the+inflammatory+response+in+healthy+volunteers.">Low-dose endotoxin elicits variability in the inflammatory response in healthy volunteers.</a> Journal of endotoxin research. 11 (4), 207-212 (2005).</li><li>Taudorf, S., Krabbe, K. S., Berg, R. M., Pedersen, B. K., Moller, K. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Human+models+of+low-grade+inflammation:+bolus+versus+continuous+infusion+of+endotoxin.">Human models of low-grade inflammation: bolus versus continuous infusion of endotoxin.</a> Clin Vaccine Immunol. 14 (3), 250-255 (2007).</li><li>Leentjens, J., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Reversal+of+immunoparalysis+in+humans+in+vivo:+a+double-blind,+placebo-controlled,+randomized+pilot+study.">Reversal of immunoparalysis in humans in vivo: a double-blind, placebo-controlled, randomized pilot study.</a> Am J Respir Crit Care Med. 186 (9), 838-845 (2012).</li><li>Hamers, L., Kox, M., Pickkers, P. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Sepsis-induced+immunoparalysis:+mechanisms,+markers,+and+treatment+options.">Sepsis-induced immunoparalysis: mechanisms, markers, and treatment options.</a> Minerva Anestesiol. 81 (4), 426-439 (2015).</li><li>Xiao, W., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+genomic+storm+in+critically+injured+humans.">A genomic storm in critically injured humans.</a> The Journal of experimental medicine. 208 (13), 2581-2590 (2011).</li><li>Williams, W. V., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Asystole+following+endotoxin+administration.">Asystole following endotoxin administration.</a> J Endotoxin Res. 6 (4), 303-306 (2000).</li><li>van Eijk, L. T., Pickkers, P., Smits, P., Bouw, M. P., van der Hoeven, J. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Severe+vagal+response+after+endotoxin+administration+in+humans.">Severe vagal response after endotoxin administration in humans.</a> Intensive Care Med. 30 (12), 2279-2281 (2004).</li><li>Kox, M., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Differential+ex+vivo+and+in+vivo+endotoxin+tolerance+kinetics+following+human+endotoxemia.">Differential ex vivo and in vivo endotoxin tolerance kinetics following human endotoxemia.</a> Critical care medicine. 39 (8), 1866-1870 (2011).</li><li>Draisma, A., Pickkers, P., Bouw, M. P., van der Hoeven, J. G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Development+of+endotoxin+tolerance+in+humans+in+vivo.">Development of endotoxin tolerance in humans in vivo.</a> Critical care medicine. 37 (4), 1261-1267 (2009).</li><li>Anel, R., Kumar, A. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Human+endotoxemia+and+human+sepsis:+limits+to+the+model.">Human endotoxemia and human sepsis: limits to the model.</a> Critical care. 9 (2), 151-152 (2005).</li></ol>

The authors have nothing to disclose.

As demonstrated here and fully described in recent review articles, human IV endotoxin challenge is a unique experimental platform providing insight into the inflammatory pathways that underlie a vast range of human disease. Allowing the controlled, reproducible induction of systemic inflammation, the model permits access to the initial phases of the inflammatory cascade, eliminating potential confounding factors.
Participant&#39;s responses may be modulated with respect to severity and duration, and the genomic influence on their phenotypic presentation evaluated. Furthermore, the model may act as a test-bed for therapeutics, not only those against the LPS ligand itself, but LPS-induced signaling pathways and mediators of both the acute and resolution phases of inflammation. This may include agents targeted at restoration of endotoxin tolerance, a hyporesponsive state of the immune system that bears similarities to critical illness-induced immunoparalysis33,34 Able to replicate key features of both acute16 and chronic27 inflammation at not only a physiological/functional level but also a transcriptomic one35, IV endotoxin challenge seemingly has a key role to play in the translation of basic scientific breakthroughs to clinical practice. When coupled to directed investigation in appropriate animal models able to more closely replicate the pathophysiological responses of specific disease states (e.g., murine cecal ligation and puncture and sepsis) this investigational paradigm may be especially powerful.
Safety of participants in any healthy human volunteer model is paramount. IV endotoxin challenge has been administered in the higher dose range of 2 - 4 ng/kg to thousands of individuals with, to our and other authors knowledge, no serious or permanent adverse events (personal communication, Dr. Anthony Suffredini)19. Of note however isolated accounts of severe vagal reactions have been reported36,37. The etiology presumably represents high resting vagal tone, volume depletion after overnight fasting, and catecholamine release with the onset of fever, chills and symptoms, culminating in an exaggerated Bezold-Jarisch reflex. This risk may be ameliorated by excluding individuals with previous vasovagal syncopy or a positive tilt-test, and volume loading with intravenous fluids prior to and during the endotoxin challenge37. Researchers employing high-dose endotoxin challenge (especially 4 ng/kg) should be cogent of the risk of bradycardia and/or cardiac pauses, warn participants of their rare but potential occurrence, employ appropriate monitoring, and have resuscitation equipment readily available. Other exclusion criteria, in addition to those described in the protocol, may be required dependent on experimental question. For instance, whilst it is prudent to exclude those that have participated in other clinical trials or experienced surgery/trauma in the past three months, restriction of entry (or use of a parallel-groups not a cross-over design in interventional studies) to those that have previously partaken in IV endotoxin challenge trials may also be required if immunological response is to be assessed: endotoxin tolerance persisting for an unknown length of time in vivo38,39.
Several limitations are apparent with the model. It is traditionally undertaken in healthy, young male volunteers un-representative of the clinical population. No interventions are required for the phenotypic consequences of endotoxin administration to resolve. Purified LPS injection provides exposure to only a single TLR ligand, as opposed to several immunogenic moieties on a live pathogen. By ethical necessity only a relatively modest inflammatory response may be elicited. Mimicry of every pathophysiological characteristic feature of disease is not achieved40. Thus &#39;any expectation that the model fully replicates the clinical condition of severe, localized or systemic gram-negative infection is un-warranted&#39;18.
We would argue however that the model&#39;s strength lies not in inappropriate extrapolation to the clinical setting, but in interrogating the physiological, hematological, immunological, neuroendocrine and metabolic response of competent cells and organ systems to a key inflammatory stimulus. Thoughtful interpretation of the transient alterations provoked by endotoxin administration and their modulation by pharmacological challenge has been, and will continue to be, informative in designing new therapies and predicting their efficacy.

Inflammation of differing etiology, severity and duration forms a central component in the pathology of multiple diseases. Ranging from the critical illness states such as sepsis or trauma where severe, relatively short lived inflammation predominates, to chronic illnesses including type 2 diabetes mellitus, atherosclerosis and Alzheimer&#39;s disease where persistent low-level inflammatory tone is considered a pathologic factor, dysregulated inflammatory pathways are a key driver of global morbidity and mortality1,2.
Inflammation is initiated by the presence of pathogen-associated molecular patterns (PAMPs) or danger-associated molecular patterns (DAMPs) &#8212; commonly intracellular components released via tissue damage3-5. These conserved molecular motifs bind pattern-recognition receptors (PRRs) such as Toll-like receptors (TLRs) found on epithelial cells, endothelial cells and those of the innate immune system, to trigger common downstream intracellular signaling pathways6. Activation of the nuclear transcription factor nuclear factor &#954;B, amongst others, leads to transcription of genes encoding pro-inflammatory cytokines that establish the inflammatory cascade7.
Inflammation induces both local and systemic effects designed to isolate and remove the primary insult. Local alterations include up-regulation of adhesion markers, chemokine release, vasodilation and increased vascular permeability to facilitate innate immune cell transmigration. The complement and coagulation systems are also activated. Systemically, multiple organ-specific physiological changes are observed, orchestrated via the neuroendocrine network. Significant increases in humoral mediators occur and the circulating cell profile radically alters. Failure of inflammation to cease and homeostasis to be reestablished may be due to persistence of the initiating stimuli or a failure of dedicated resolution pathways8. These potent mechanisms, often coordinated by lipid mediators may themselves be pathogenic9,10.
Investigation of the inflammatory response and these key regulatory steps in the clinical population is challenging. Demographic (age, sex, ethnicity), temporal (time of onset, duration of exposure) and clinical variance (type of initiating stimuli, severity of insult, co-morbidity burden, therapeutic intervention) impede access to key biological pathways. The traditional solution has been to use animal models. Despite affording multiple advantages, their fundamental similarity to human pathophysiology11,12 and the relevance of their output, has come under increasing scrutiny13-15. An alternative is to employ reductionist human models.
Developed in the late 1960s, intravenous (IV) endotoxin administration to man offers a vital platform through which to discover, delineate and potentially drug inflammatory pathways16-19. Endotoxin (used synonymously with lipopolysaccharide [LPS] in this article) is a potent TLR4 agonist that triggers the inflammatory cascade in a dose-dependent manner. Injected as either a bolus or infusion it may thus be used to model both low-level and moderate systemic inflammation of differing duration. The resultant short-lived inflammatory response permits assessment of a single component of the highly complex host-pathogen interaction that develops during bacterial infection. While not a model of shock, IV endotoxin challenges elicits responses that appear to replicate the early stages of infection. Eliminating inter-species translational barriers and accurately mimicking the clinical phenotype qualitatively if not quantitatively, it affords real-time interpretation of inflammatory influences, consequences and an opportunity to test interventions. Endotoxin may also be administered endobronchially20, intradermally21 or in combination with IV LPS22 to explore local inflammatory responses in different compartments. Less widely employed alternative methodologies include infusion of proximal pro-inflammatory cytokines such as tumor necrosis factor &#945; (TNF&#945;) and interleukin (IL) 619. These will not be discussed further here.

<table><tbody><tr><td>Clinical Center Reference Endotoxin (CCRE, &lt;em&gt;Escherichia coli&lt;/em&gt; O:113:H10:K negative)</td><td>National Institutes for Health</td><td>n/a</td><td>GMP Manufactured Endotoxin</td></tr><tr><td>Syringes (1&amp;nbsp;ml, 5&amp;nbsp;ml)</td><td></td><td></td><td></td></tr><tr><td>Water for injection</td><td></td><td></td><td></td></tr><tr><td>0.9% sodium chloide (sterile, clinical grade)</td><td></td><td></td><td></td></tr><tr><td>Intravenous cannulae</td><td></td><td></td><td>Miminum 20 G French</td></tr><tr><td>Sphygmomanometer</td><td></td><td></td><td>If intraarterial line placed, transduction equipment for invasive blood pressure monitoring</td></tr><tr><td>Pulse oximeter</td><td></td><td></td><td></td></tr><tr><td>Thermometer</td><td></td><td></td><td>Typmanic, oral or core (rectal, oropharyngeal)</td></tr><tr><td>Electrocardiograph machine</td><td></td><td></td><td></td></tr><tr><td>Sample collection tubes</td><td></td><td></td><td>As utilized by local clinical laboratory</td></tr></tbody></table>

intravenous endotoxin challenge in healthy humans: an experimental platform to investigate and modulate systemic inflammation

Activation of inflammatory pathways represents a central mechanism in multiple disease states both acute and chronic. Triggered via either pathogen or tissue damage-associated molecular motifs, common biochemical pathways lead to conserved yet variable physiological and immunological alterations. Dissection and delineation of the determinants and mechanisms underlying phenotypic variance in response is expected to yield novel therapeutic advances.
Intravenous (IV) administration of endotoxin (gram-negative bacterial lipopolysaccharide), a specific Toll-like receptor 4 agonist, represents an in vivo model of systemic inflammation in man. National Institutes for Health Clinical Center Reference Endotoxin (CCRE, Escherichia coli O:113:H10:K negative) is employed to reliably and reproducibly generate vascular, hematological, endocrine, immunological and organ-specific functional effects that parallel, to varying degrees, those seen in the early stages of pathological states. Alteration of dose (0.06 - 4 ng/kg) and time-scale of exposure (bolus vs. infusion) allows replication of either acute or chronic inflammation and a range of severity to be elicited, with higher doses (2 - 4 ng/kg) frequently being used to create a &#39;sepsis-like&#39; state. Established and novel medicinal compounds may additionally be administered prior to or post endotoxin exposure to appreciate their effect on the inflammatory cascade. Despite limitations in scope and generalizability, human IV endotoxin challenge offers a unique platform to gain mechanistic insights into inducible physiological responses and inflammatory pathways. Rationally employed it may aid translation of this knowledge into therapeutic innovations.

The diverse, multi-system consequences of IV endotoxin administration have recently been comprehensively reviewed and will not be discussed in full here (for full details see17-19,27). Instead a brief overview of the range and applicability of the model will be provided alongside primary data pertaining to the classic bolus-dosing regimen (2 ng/kg). A schematic diagram illustrating the timeline of such an experiment is provided in Figure 1.
<img alt="Figure 1" src="/files/ftp_upload/53913/53913fig1.jpg" />
Figure 1: Representative Schematic of Bolus IV Endotoxin Challenge Protocol. After arrival, participant&#39;s consent to proceed should be confirmed along with their health status and protocol compliance (fasting, alcohol abstention, etc.). Following insertion of intravascular lines, attachment of monitoring and collection of baseline clinical observations and samples, a weight-adjusted dose of reconstituted CCRE is administered. Clinical monitoring for a minimum of 6 - 8 hr is mandatory. Samples, most commonly blood, may be taken at pre-selected time-points. Crystalloid intravenous fluids are commonly given, in this case 1 L over 2 hr followed by 1 L over 6 hr. <a href="https://www-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/53913/53913fig1large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
The effect of IV endotoxin is dependent upon the dose selected and the method of administration (bolus vs. infusion). A bolus of 2 - 4 ng/kg reliably elicits the features of the systemic inflammatory response syndrome with raised core temperature, heart rate and white blood cell (WBC) count16. This is accompanied by the presence of humoral mediators of inflammation including pro and anti-inflammatory cytokines, acute phase proteins (such as C-reactive protein) (see Figures 2 and 3) and activation of the hypothalamo-pituitary axis28 and both the pro-coagulatory and fibrinolytic systems29. Metabolism in both central and peripheral tissues is altered and multiple organ-specific functional alterations elicited19,30. Participants experience a variety of &#39;flu-like&#39; symptoms that peak in intensity around 1 - 2 hr and largely abate by 6 hr (see Figure 4). The bolus &#39;high-dose&#39; protocol induces a qualitatively consistent but quantitatively variable response in volunteers31.
<img alt="Figure 2" src="/files/ftp_upload/53913/53913fig2.jpg" />
Figure 2: Clinical Observation Profile. Change in vital signs post-bolus administration of Clinical Center Reference Endotoxin 2 ng/kg (median with IQR, n = 10). Respiratory rate (RR, breaths per min, A), pulse (beats per min, B), systolic blood pressure (SBP, mmHg, C) and temperature (&#176;C, via tympanic thermometer, D) are displayed. SBP did not fall due to administration of IV fluids, the small rise likely reflecting increased sympathetic outflow. Time is displayed on the x-axis (hr post-endotoxin administration). <a href="https://www-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/53913/53913fig2large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
<img alt="Figure 3" src="/files/ftp_upload/53913/53913fig3.jpg" />
Figure 3: Cellular and Humoral Response. Consistent alterations in total leukocyte count, including transient neutrophilia, are observed (A) along with commonly used clinical indicators of inflammation such as C-reactive protein (B). Quantitatively varied, yet qualitatively conserved alterations in circulating plasma cytokine concentrations occur after IV endotoxin. TNF&#945; (C) and IL-6 (D) are displayed as exemplars. All data post-bolus administration of Clinical Center Reference Endotoxin 2 ng/kg (median with IQR, n = 10. Cytokine concentration represents the mean of 2 technical repeats/individual at each time point). <a href="https://www-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/53913/53913fig3large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
<img alt="Figure 4" src="/files/ftp_upload/53913/53913fig4.jpg" />
Figure 4: Symptom Profile. Cumulative symptom score recorded at pre-determined time-points post-bolus administration of Clinical Center Reference Endotoxin 2 ng/kg (median with IQR, n = 10). Participants were asked to score the severity of headache, shivering, muscle ache, nausea on visual analogue scales (0 - 10, max score 40). <a href="https://www-jove-com.bdigitaluss.remotexs.co/files/ftp_upload/53913/53913fig4large.jpg" target="_blank">Please click here to view a larger version of this figure.</a>
&#39;Low-dose&#39; endotoxin in contrast has a much more diverse effect on individuals and may be used to explore inter-individual differences in the inflammatory response31. Administration of 0.06 - 0.2 ng/kg via either bolus or infusion induces 2 - 10 fold increases in plasma cytokines commensurate with those seen in chronic low-grade inflammatory conditions32. Such protocols may have a key role in exploring the contribution of inflammation and the pathways that regulate it to multiple complex cardiometabolic conditions27.

Watch this Scientific Journal Video about Intravenous Endotoxin Challenge in Healthy Humans: An Experimental Platform to Investigate and Modulate Systemic Inflammation at JoVE.com

Intravenous Endotoxin Challenge in Healthy Humans: An Experimental Platform to Investigate and Modulate Systemic Inflammation

Intravenous administration of endotoxin reliably elicits dose-dependent physiological and immunological alterations consistent with several pathological states. This reductionist approach permits the investigation, modeling and experimental modification of systemic inflammation and its downstream effects in man.

Activation of inflammatory pathways represents a central mechanism in multiple disease states both acute and chronic. Triggered via either pathogen or ...

intravenous-endotoxin-challenge-healthy-humans-an-experimental

Nanyang Technological University

Research

JoVE Journal

Medicine

11.5K Views.  University College London. Intravenous administration of endotoxin reliably elicits dose-dependent physiological and immunological alterations consistent with several pathological states. This reductionist approach permits the investigation, modeling and experimental modification of systemic inflammation and its downstream effects in man.

Video: Intravenous Endotoxin Challenge in Healthy Humans: An Experimental Platform to Investigate and Modulate Systemic Inflammation

An IL-8 Transiently Transgenized Mouse Model for the In Vivo Long-term Monitoring of Inflammatory Responses

Airway inflammation is often associated with bacterial infections and represents a major determinant of lung disease. The in vivo determination of the pro-inflammatory capabilities of various factors is challenging and requires terminal procedures, such as bronchoalveolar lavage and the removal of lungs for in situ analysis, precluding longitudinal visualization in the same mouse. Here, lung inflammation is induced through the intratracheal instillation of Pseudomonas aeruginosa culture supernatant (SN) in transiently transgenized mice expressing the luciferase reporter gene under the control of a heterologous IL-8 bovine promoter. Luciferase expression in the lung is monitored by in vivo bioluminescent image (BLI) analysis over a 2.5- to 48-h timeframe following the instillation. The procedure can be repeated multiple times within 2 - 3 months, thus permitting the evaluation of the inflammatory response in the same mice without the need to terminate the animals. This approach permits the monitoring of pro- and anti-inflammatory factors acting in the lung in real time and appears suitable for functional and pharmacological studies.

An IL-8 Transiently Transgenized Mouse Model for the In Vivo Long-term Monitoring of Inflammatory Responses

The method described here allows for the visualization of IL-8 promoter-dependent inflammation activation in the lungs of mice through non-invasive bioluminescence imaging (BLI). The same animal can be subjected to BLI multiple times for up to two months from the time of delivery of the luciferase reporter construct.

Airway inflammation is often associated with bacterial infections and represents a major determinant of lung disease. The in vivo determination of the ...

Immunology and Infection

Detection of Endotoxin in Nano-formulations Using Limulus Amoebocyte Lysate (LAL) Assays

When present in pharmaceutical products, a Gram-negative bacterial cell wall component endotoxin (often also called lipopolysaccharide) can cause inflammation, fever, hypo- or hypertension, and, in extreme cases, can lead to tissue and organ damage that may become fatal. The amounts of endotoxin in pharmaceutical products, therefore, are strictly regulated. Among the methods available for endotoxin detection and quantification, the Limulus Amoebocyte Lysate (LAL) assay is commonly used worldwide. While any pharmaceutical product can interfere with the LAL assay, nano-formulations represent a particular challenge due to their complexity. The purpose of this paper is to provide a practical guide to researchers inexperienced in estimating endotoxins in engineered nanomaterials and nanoparticle-formulated drugs. Herein, practical recommendations for performing three LAL formats including turbidity, chromogenic and gel-clot assays are discussed. These assays can be used to determine endotoxin contamination in nanotechnology-based drug products, vaccines, and adjuvants.

Detection of Endotoxin in Nano-formulations Using Limulus Amoebocyte Lysate LAL Assays

Detection of endotoxins in engineered nanomaterials represents one of the grand challenges in the field of nanomedicine. Here, we present a case study that describes the framework composed of three different LAL formats to estimate potential endotoxin contamination in nanoparticles.

When present in pharmaceutical products, a Gram-negative bacterial cell wall component endotoxin (often also called lipopolysaccharide) can cause ...

Bioengineering

Injections of Lipopolysaccharide into Mice to Mimic Entrance of Microbial-derived Products After Intestinal Barrier Breach

The intestinal epithelial barrier separates the host from the microbiota that is normally tolerated or ignored. The breach of this barrier results in the entrance of bacteria or bacteria-derived products into the host, accessing the host circulation and inner organs leading to the uncontrolled inflammation as observed in patients with inflammatory bowel disease (IBD), that are characterized by an increased intestinal epithelial permeability.
To mimic the entrance of bacterial-derived compounds into the host, an endotoxemia model has been adopted in which lipopolysaccharide (LPS), a component of the outer cell wall of Gram-negative bacteria, were injected into mice. In this study, a sublethal dose of LPS was intraperitoneally injected and the mice were subsequently monitored for 8 h using a disease score. Furthermore, the expression levels of the inflammatory cytokines Il6, Il1b, and Tnfa were analyzed in the spleen, liver and colon by qPCR at different time points post LPS injection. This model could be useful for the studies involving investigation of immune responses after the invasion of microorganisms or bacterial-derived products caused by a barrier breach of body surfaces.

Here a protocol to mimic the entrance of bacterial-derived compounds after intestinal barrier breach is presented. A low sublethal dose of lipopolysaccharide was injected systemically into mice, which were monitored for 24 h post-injection. The expression of pro-inflammatory cytokines was determined at several time points in spleen, liver, and colon.

The intestinal epithelial barrier separates the host from the microbiota that is normally tolerated or ignored. The breach of this barrier results in the ...

Endotoxin Activity Assay for the Detection of Whole Blood Endotoxemia in Critically Ill Patients

Lipopolysaccharide, also known as endotoxin, is a fundamental component of gram-negative bacteria and plays a crucial role in the development of sepsis and septic shock. The early identification of an infectious process that is rapidly evolving to a critical illness might prompt a quicker and more intensive treatment, thereby potentially leading to better patient outcomes. The Endotoxin Activity (EA) assay can be used at the bedside as a reliable biomarker of systemic endotoxemia. The detection of elevated endotoxin activity levels has been repeatedly shown to be associated with an increased disease severity in patients with sepsis and septic shock. The assay is quick and easy to perform. Briefly, after sampling, an aliquot of whole blood is mixed with an anti-endotoxin antibody and with added LPS. Endotoxin activity is measured as the relative oxidative burst of primed neutrophils as detected by chemioluminescence. The assay&#39;s output is expressed on a scale from 0 (absent) to 1 (maximal) and categorized as &#8220;low&#8221; (&#60;0.4 units), &#8220;intermediate&#8221; (0.4&#8211;0.59 units), or &#8220;high&#8221; (&#8805;0.6 units). The detailed methodology and rationale for the implementation of the EA assay are reported in this manuscript.

We hereby present a protocol to measure at the bedside the endotoxin activity of human whole blood samples. The Endotoxin Activity assay is a simple test to perform and may be a useful biomarker in critically ill patients with sepsis.

Lipopolysaccharide, also known as endotoxin, is a fundamental component of gram-negative bacteria and plays a crucial role in the development of sepsis ...

Isolation of Low Endotoxin Content Extracellular Vesicles Derived from Cancer Cell Lines

Extracellular vesicles (EVs) are a heterogeneous population of membrane vesicles released by cells in vitro and in vivo. Their omnipresence and significant role as carriers of biological information make them intriguing study objects, requiring reliable and repetitive protocols for their isolation. However, realizing their full potential is difficult as there are still many technical obstacles related to their research (like proper acquisition). This study presents a protocol for the isolation of small EVs (according to the MISEV 2018 nomenclature) from the culture supernatant of tumor cell lines based on differential centrifugation. The protocol includes guidelines on how to avoid contamination with endotoxins during the isolation of EVs and how to properly evaluate them. Endotoxin contamination of EVs can significantly hinder subsequent experiments or even mask their true biological effects. On the other hand, the overlooked presence of endotoxins may lead to incorrect conclusions. This is of particular importance when referring to cells of the immune system, including monocytes, because monocytes constitute a population that is especially sensitive to endotoxin residues. Therefore, it is highly recommended to screen EVs for endotoxin contamination, especially when working with endotoxin-sensitive cells such as monocytes, macrophages, myeloid-derived suppressor cells, or dendritic cells.

The proposed protocol includes guidelines on how to avoid contamination with endotoxin during the isolation of extracellular vesicles from cell culture supernatants, and how to properly evaluate them.

Extracellular vesicles (EVs) are a heterogeneous population of membrane vesicles released by cells in vitro and in vivo. Their omnipresence and ...

A Reproducible Intensive Care Unit-Oriented Endotoxin Model in Rats

Sepsis and septic shock remain the leading cause of death in intensive care units. Despite significant improvements in sepsis management, mortality still ranges between 20 and 30%. Novel treatment approaches in order to reduce sepsis-related multiorgan failure and death are urgently needed. Robust animal models allow for one or multiple treatment approaches as well as for testing their effect on physiological and molecular parameters. In this article, a simple animal model is presented.
First, general anesthesia is induced in animals either with the use of volatile or by intraperitoneal anesthesia. After placement of an intravenous catheter (tail vein), tracheostomy, and insertion of an intraarterial catheter (tail artery), mechanical ventilation is started. Baseline values of mean arterial blood pressure, arterial blood oxygen saturation, and heart rate are recorded.
The injection of lipopolysaccharides (1 milligram/kilogram body weight) dissolved in phosphate-buffered saline induces a strong and reproducible inflammatory response via the toll-like receptor 4. Fluid corrections as well as the application of norepinephrine are performed based on well-established protocols.
The animal model presented in this article is easy to learn and strongly oriented towards clinical sepsis treatment in an intensive care unit with sedation, mechanical ventilation, continuous blood pressure monitoring, and repetitive blood sampling. Also, the model is reliable, allowing for reproducible data with a limited number of animals in accordance with the 3R (reduce, replace, refine) principles of animal research. While animal experiments in sepsis research cannot easily replaced, repetitive measurements allow for a reduction of animals and keeping septic animals anesthetized diminishes suffering.

Here, we present a reproducible intensive care unit-oriented endotoxin model in rats.

Sepsis and septic shock remain the leading cause of death in intensive care units. Despite significant improvements in sepsis management, mortality still ...

Dosage-Dependent Induction of Endotoxemia in Pigs via LPS Infusion

Lipopolysaccharide Infusion as a Porcine Endotoxemic Shock Model

Sepsis and septic shock are frequently encountered in patients treated in intensive care units (ICUs) and are among the leading causes of death in these patients. It is caused by a dysregulated immune response to an infection. Even with optimized treatment, mortality rates remain high, which makes further insights into the pathophysiology and new treatment options necessary. Lipopolysaccharide (LPS) is a component of the cell membrane of gram-negative bacteria, which are often responsible for infections causing sepsis and septic shock.
The severity and high mortality of sepsis and septic shock make standardized experimental studies in humans impossible. Thus, an animal model is needed for further studies. The pig is especially well suited for this purpose as it closely resembles humans in anatomy, physiology, and size.
This protocol provides an experimental model for endotoxemic shock in pigs by LPS infusion. We were able to reliably induce changes frequently observed in septic shock patients, including hemodynamic instability, respiratory failure, and acidosis. This will allow researchers to gain valuable insight into this highly relevant condition and evaluate new therapeutic approaches in an experimental setting.

Author Spotlight: Induction of Experimental Endotoxemic Shock in Pigs for Studying Hemodynamic and Respiratory Failure

We provide a protocol for an experimental endotoxemic shock model in pigs by infusion of lipopolysaccharide.

Sepsis and septic shock are frequently encountered in patients treated in intensive care units (ICUs) and are among the leading causes of death in these ...

Turbidimetric Limulus Amoebocyte Lysate Assay: A Technique to Detect and Quantify Endotoxin Contamination in Nano-Formulated Drugs

Source: Neun, B. W. et al., <a href="https://www-jove-com.bdigitaluss.remotexs.co/v/58830">Detection of Endotoxin in Nano-formulations Using Limulus Amoebocyte Lysate (LAL) Assays.</a> J. Vis. Exp. (2019)
This video describes the turbidimetric format of the Limulus amoebocyte lysate, or LAL, assay to estimate endotoxin contamination in PEGylated liposomal doxorubicin nano-formulations. The turbidity of the solution following the reaction of the endotoxin with the LAL reagent helps to estimate the endotoxin in the sample.

Source: Neun, B. W. et al., Detection of Endotoxin in Nano-formulations Using Limulus Amoebocyte Lysate (LAL) Assays. J. Vis. Exp. (2019)
This video ...

JoVE Encyclopedia of Experiments

Biological Techniques

Assay Techniques

Biochemical assays

Endotoxin Activity Assay: A Chemiluminescence-Based Bioassay for Investigating Endotoxin Activity in Blood Sample

First, place the EA tubes to be used in tube racks and remove the caps. Use a combi-pipette to transfer 1 milliliter of the EA reagent from the bottle into tubes number 1, number 2, and number 3, by pipetting down the side of the tubes. Gently invert the blood collection tube 20 times to mix the patient&#39;s blood sample. Then, pipette 0.5 milliliters of patient blood into tube number 4 and tube number 5. Vortex tube number 4 for 10 seconds.
Place the tube racks with all of the EA test tubes into the incubator shaker, close the lid, and incubate at 37 degrees Celsius for 10 minutes. After this, open the incubator lid, and remove the tube racks from the shaker.

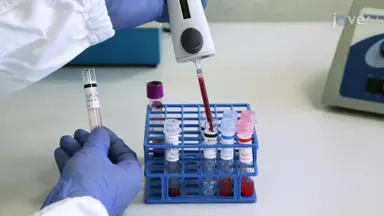

Vortex tube number 5. Using a sterile tip, pipette 40 microliters of blood into tubes number 1 and number 2, in duplicate.
Vortex tube number 4. Using the same pipette tip, transfer 40 microliters of blood from tube number 4 into tube number 3, in duplicate.
Vortex the six final test tubes one by one. Place the tube racks back into the incubating shaker and close the lid. Set the shaker to 100 RPM and start the motion for 14 minutes.
Insert the EA-labeled chip card into the chemiluminometer and press &#39;Start.&#39; After the 14-minute incubation, follow the instructions displayed on the chemiluminometer. Gently vortex each tube for 10 seconds before placing it onto the sample holder of the chemiluminometer.
Open the sample drawer and place tube number 1 into the sample holder. Then, close the sample drawer and wait for the Relative Light Unit reading. Repeat this reading process for tubes 2 and 3, and all duplicates as outlined in the text protocol.
After all of the tubes have been processed, the EA results will be calculated and printed automatically.
Repeat the entire assay process for each blood sample that needs to be tested. Store the EA assay kit and its components in the original sealed package, at a temperature between 2 and 25 degrees Celsius.

EoE Sub Articles

Gel-Clot Limulus Amoebocyte Lysate Assay: A Method for Bacterial Endotoxin Detection in Nanoparticle Formulations

To perform a gel-clot LAL, prepare control standard endotoxin to a final concentration of 4 lambda, and combine 100 microliters of standard with 100 microliters of water, or test sample, to achieve a final concentration of control standard endotoxin 2 lambda.
Add 100 microliters of lysate to each lambda dilution. Vortex the tubes briefly, and place the rack of tubes into a 37-degree Celsius water bath for 1 hour.
At the end of the incubation, invert the tubes with a smooth motion, and manually record the results using plus for a firm clot, and minus for no clot or a loose clot.

Intravenous Endotoxin Challenge in Healthy Humans: An Experimental Platform to Investigate and Modulate Systemic Inflammation

Summary

Explore More Videos

Chapters in this video

An IL-8 Transiently Transgenized Mouse Model for the In Vivo Long-term Monitoring of Inflammatory Responses

Detection of Endotoxin in Nano-formulations Using Limulus Amoebocyte Lysate (LAL) Assays

Injections of Lipopolysaccharide into Mice to Mimic Entrance of Microbial-derived Products After Intestinal Barrier Breach

Endotoxin Activity Assay for the Detection of Whole Blood Endotoxemia in Critically Ill Patients

Isolation of Low Endotoxin Content Extracellular Vesicles Derived from Cancer Cell Lines

A Reproducible Intensive Care Unit-Oriented Endotoxin Model in Rats

Lipopolysaccharide Infusion as a Porcine Endotoxemic Shock Model

Turbidimetric Limulus Amoebocyte Lysate Assay: A Technique to Detect and Quantify Endotoxin Contamination in Nano-Formulated Drugs

Endotoxin Activity Assay: A Chemiluminescence-Based Bioassay for Investigating Endotoxin Activity in Blood Sample

Gel-Clot Limulus Amoebocyte Lysate Assay: A Method for Bacterial Endotoxin Detection in Nanoparticle Formulations
