Instrument transformers include voltage and current transformers. The primary winding of a current transformer typically has a single turn or a conducting ...

Overcurrent relays, connected to the secondary current of a current transformer, are crucial for protecting circuits. There are two types: Instantaneous ...

Radial systems utilize time-delay overcurrent relays to minimize load interruption. When a fault occurs, the nearest breaker opens first, while upstream ...

Automatic circuit reclosers protect distribution circuits by interrupting and automatically reclosing an AC circuit according to a preset sequence. ...

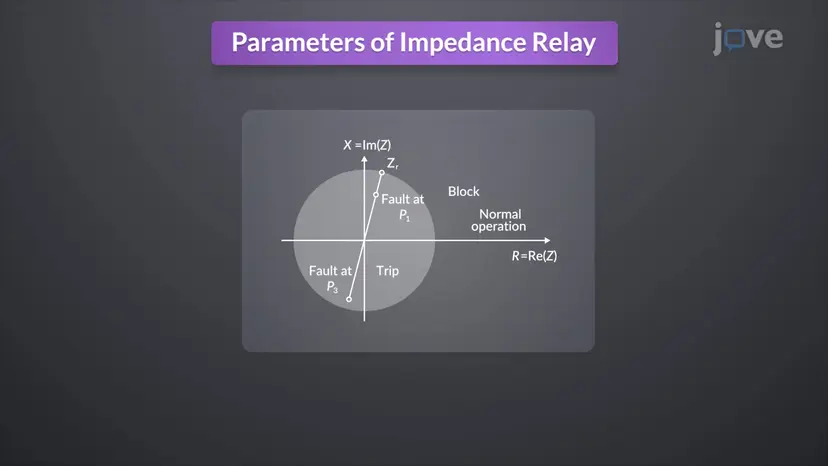

Directional relays, designed for unidirectional fault currents, improve power system safety and efficiency. On power lines with a directional relay, ...

In power systems, the entire setup is divided into protective zones. If a fault occurs within a zone, it is isolated, protecting the rest of the system. ...

Coordinating time-delay overcurrent relays in complex radial systems can be challenging, as can directional overcurrent relays in multi-source ...

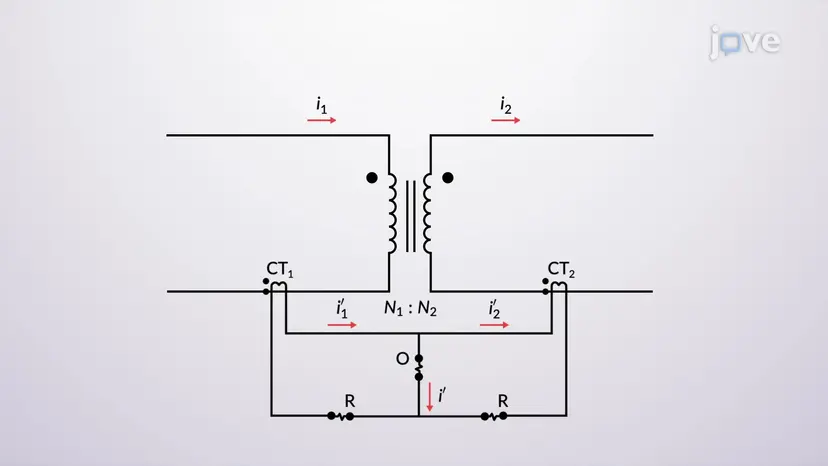

Differential relays protect generators, buses, and transformers. In a fault-free generator, identical current transformers keep the relay inactive as no ...

Pilot relaying, a form of differential protection, utilizes communication channels to compare terminal quantities on widely spread transmission lines. It ...
