第８章
三相回路
三相交流回路
In general, AC power distribution systems are classified as single-phase, two-phase, or three-phase.
Single-phase circuits involve a single source ...
三相電圧の生成
A three-phase AC generator with a rotating magnet surrounded by stationary windings is used to generate three-phase voltages.
The stator houses three ...
三相電圧
In three-phase four-wire systems, three Y-connected voltage sources generate balanced phase voltages.
There are two phase sequences based on the order in ...
Y-Y回路
Balanced four-wire Y-to-Y systems consist of three balanced Y-connected sinusoidal voltage sources and loads with the neutral wire connecting both the ...

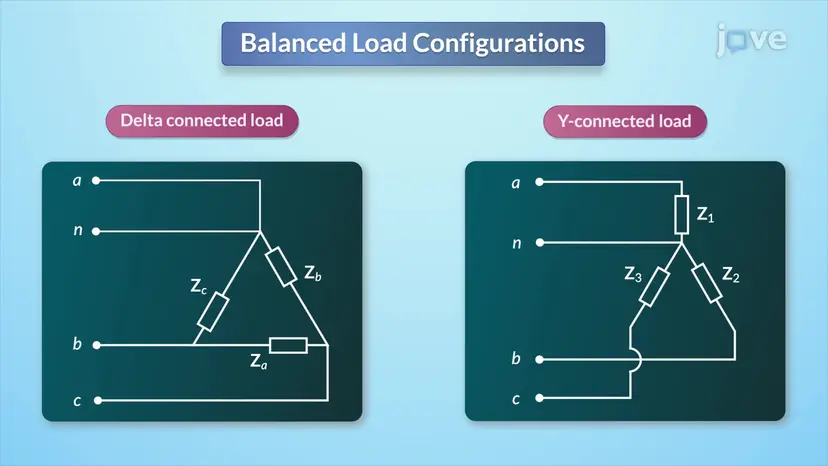

Y-Δ回路
In electrical power grids, balanced Y-to-Delta circuits feature Y-connected voltage sources and delta-connected loads, typically without a neutral line.
...
デルタ-デルタ結線

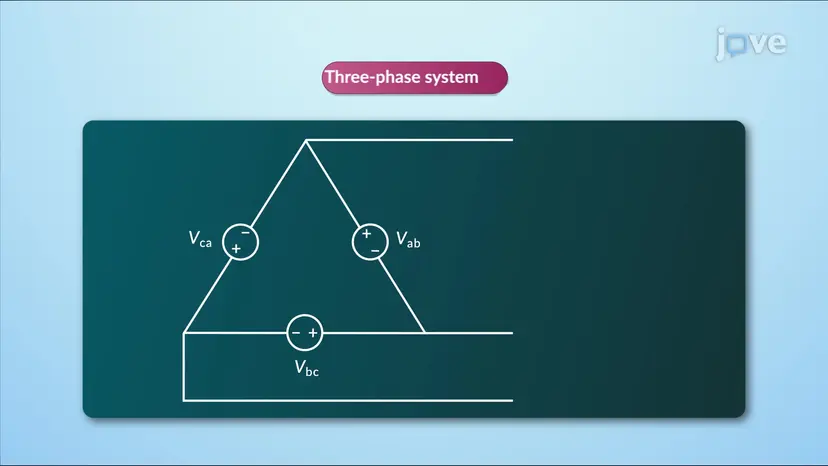

A balanced delta-to-delta system has a delta-connected source and load.
The delta-connected sources are assumed to be in positive sequence to express the ...
Δ-Y回路

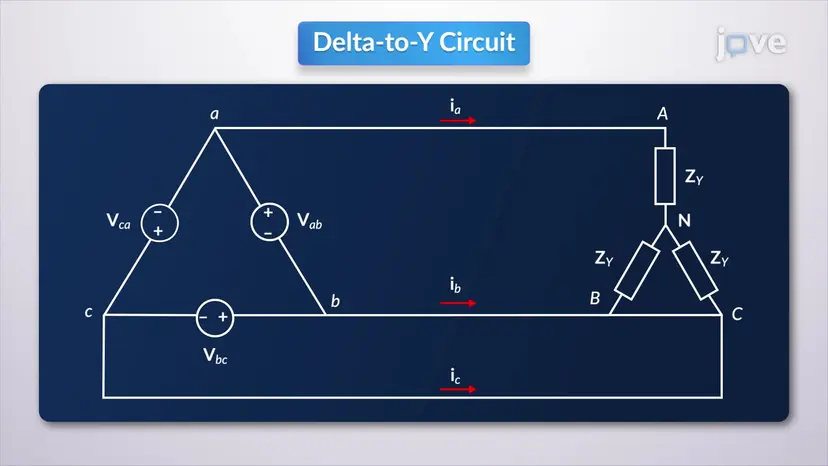

A balanced delta-to-Y system features a balanced delta-connected source powering a balanced Y-connected load.
In this delta-Y circuit, a positive abc ...
三相回路の電力
A manufacturing plant with several heavy machines requires significant power supplied by a balanced three-phase system.
To determine the instantaneous ...
三相および単相回路の電力分配
Consider a two-wire single-phase system providing electricity to homes and a three-wire balanced three-phase system powering a factory with heavy ...
ライン損失
Consider a balanced three-wire Y-to-Y circuit represented in the time domain, which can be transformed into a per-phase equivalent circuit.
First, the ...
ライン損失の削減

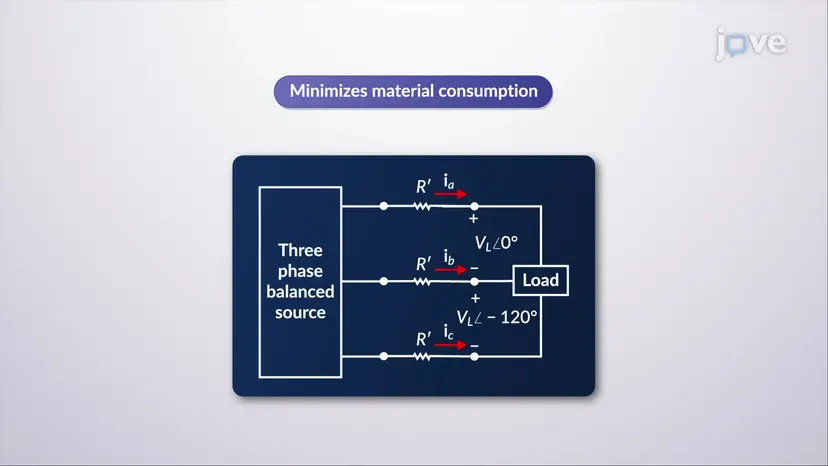

To minimize line losses in three-phase circuits, two transformers are added: a step-up transformer at the source and a step-down transformer at the load.
...
