אנו מודים Susantha Wijesinghe אשר תוכנן ונבנה מערכת דחיסת תמונה אנו משתמשים. אנו מכירים תמיכה מן DMR-1208990 להעניק NSF.

<ol>
	<li>Marcus, G., Parsa, S., Kramel, S., Ni, R., Voth, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Measurements+of+the+Solid-body+Rotation+of+Anisotropic+Particles+in+3D+Turbulence.">Measurements of the Solid-body Rotation of Anisotropic Particles in 3D Turbulence.</a> New J. Phys. 16, 102001 (2014).</li><li>Bretherton, F. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+motion+of+rigid+particles+in+a+shear+flow+at+low+Reynolds+number.">The motion of rigid particles in a shear flow at low Reynolds number.</a> J. Fluid Mech. 14 (02), 284-304 (1962).</li><li>Oullette, N., Xu, H., Bodenschatz, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+quantitative+study+of+three-dimensional+Lagrangian+particle+tracking+algorithms.">A quantitative study of three-dimensional Lagrangian particle tracking algorithms.</a> Exp. in Fluids. 40 (2), 301-313 (2006).</li><li>Parsa, S., Calzavarini, E., Toschi, F., Voth, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Rotation+Rate+of+Rods+in+Turbulent+Fluid.">Rotation Rate of Rods in Turbulent Fluid.</a> Phys. Rev. Lett. 109 (13), 134501 (2012).</li><li>Parsa, S., Voth, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Inertial+Range+Scaling+in+Rotations+of+Long+Rods+in+Turbulence.">Inertial Range Scaling in Rotations of Long Rods in Turbulence.</a> Phys. Rev. Lett. 112 (2), 024501 (2014).</li><li>Tsai, R. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=A+versatile+camera+calibration+technique+for+high-accuracy+3d+machine+vision+metrology+using+off-the-shelf+tv+cameras+and+lenses.">A versatile camera calibration technique for high-accuracy 3d machine vision metrology using off-the-shelf tv cameras and lenses.</a> IEEE Journal of Robotics and Automation. 3 (4), 323-344 (1987).</li><li>Blum, D., Kunwar, S., Johnson, J., Voth, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Effects+of+nonuniversal+large+scales+on+conditional+structure+functions+in+turbulence.">Effects of nonuniversal large scales on conditional structure functions in turbulence.</a> Phys. Fluids. 22 (1), 015107 (2010).</li><li>Mann, J., Ott, S., Andersen, J. S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Experimental+study+of+relative,+turbulent+diffusion.">Experimental study of relative, turbulent diffusion.</a> RISO Internal Report. , (1999).</li><li>Chan, K., Stich, D., Voth, G. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Real-time+image+compression+for+high-speed+particle+tracking.">Real-time image compression for high-speed particle tracking.</a> Rev. Sci. Instrum. 78 (2), 023704 (2007).</li><li>Goldstein, H., Poole, C., Safko, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Classical Mechanics, 3rd Edition. , 134-180 (2002).</li><li>Parsa, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Rotational dynamics of rod particles in fluid flows. , (2013).</li><li>Wijesinghe, S. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=.">.</a> Measurement of the effects of large scale anisotropy on the small scales of turbulence. , (2012).</li><li>Wallace, J., Foss, J. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=The+Measurement+of+Vorticity+in+Turbulent+Flows.">The Measurement of Vorticity in Turbulent Flows.</a> Annu. Rev. Fluid Mech. 27, 469-514 (1995).</li><li>Su, L., Dahm, W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Scalar+imaging+velocimetry+measurements+of+the+velocity+gradient+tensor+field+in+turbulent+flows.+I.+Assessment+of+errors.">Scalar imaging velocimetry measurements of the velocity gradient tensor field in turbulent flows. I. Assessment of errors.</a> Phys. Fluids. 8, 1869-1882 (1996).</li><li>L&#252;thi, B., Tsinober, A., Kinzelbach, W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Lagrangian+measurement+of+vorticity+dynamics+in+turbulent+flow.">Lagrangian measurement of vorticity dynamics in turbulent flow.</a> J. Fluid Mech. 528, 87-118 (2005).</li><li>Frish, M., Webb, W. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Direct+measurement+of+vorticity+by+optical+probe.">Direct measurement of vorticity by optical probe.</a> J. Fluid Mech. 107, 173-200 (1981).</li><li>Zimmerman, R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Tracking+the+dynamics+of+translation+and+absolute+orientation+of+a+sphere+in+a+turbulent+flow.">Tracking the dynamics of translation and absolute orientation of a sphere in a turbulent flow.</a> Rev. Sci. Instrum. 82 (3), 033906 (2011).</li><li>Zimmerman, R., et al. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Rotational+Intermittency+and+Turbulence+Induced+Lift+Experienced+by+Large+Particles+in+a+Turbulent+Flow.">Rotational Intermittency and Turbulence Induced Lift Experienced by Large Particles in a Turbulent Flow.</a> Phys. Rev. Lett. 106 (15), 154501 (2011).</li><li>Klein, S., Gibert, M. a. t. h. i. e. u., B&#233;rut, A., Bodenschatz, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Simultaneous+3D+measurement+of+the+translation+and+rotation+of+finite-size+particles+and+the+flow+field+in+a+fully+developed+turbulent+water+flow.">Simultaneous 3D measurement of the translation and rotation of finite-size particles and the flow field in a fully developed turbulent water flow.</a> Meas. Sci. Technol. 24 (2), 1-10 (2013).</li><li>Bellani, G., Byron, M., Collignon, A., Meyer, C., Variano, E. <a target="_blank" href="http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?db=PubMed&cmd=Search&doptcmdl=Citation&defaultField=Title+Word&term=Shape+effects+on+turbulent+modulation+by+large+nearly+neutrally+buoyant+particles.">Shape effects on turbulent modulation by large nearly neutrally buoyant particles.</a> J. Fluid Mech. 712, 41-60 (2012).</li></ol>

אין המחברים אינטרסים כלכליים מתחרים לחשוף.

מדידות של ערבוליות והסיבוב של חלקיקי זרימת נוזל סוער ארוכות הוכרו מטרות חשובות מכניקת זורמים ניסיונית. הסיבוב מוצק הגוף של כדורים הקטנים ב מערבולת הוא השווה למחצית ערבוליות הנוזלת, אבל הסימטריה הסיבובית של תחומים הפכה מדידה ישירה של הסיבוב מוצק הגוף שלהם קשה. באופן ...

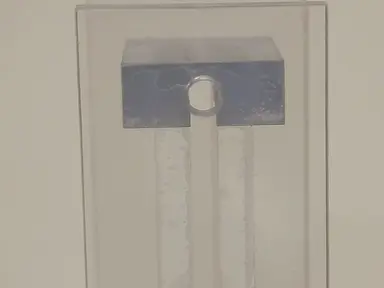

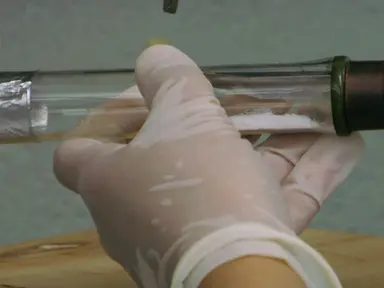

בפרסומים העדכניים, הצגנו את השימוש של חלקיקים עשויים זרועותיה דקות מרובות למדידת תנועה סיבובית של חלקיקי מערבולת 1. חלקיקים אלה יכולים להיות מפוברק באמצעות מדפסות 3D, ויתכן נמדדים מצבה, האוריינטציה שלהם במדויק, וקצב הסיבוב באמצעות מספר מצלמות. שימוש בכלים מתורת גוף רזה, ניתן להראות כי חלקיקים אלה המקביל 2 ellipsoids היעיל, ואת התנועות הסיבוביות של חלקיקים אלה זהות לאלה של ellipsoids היעיל שלהם. חלקיקים בזרועות סימטריות שווה באורכם לסובב כמו כדורים. חלקיק אחד כזה הוא שקע, שבו יש שלוש זרועות ניצבים הדדיים המצורפות במרכזה. התאמת האורכים היחסיים של זרועות שקע יכולה להקים מקבילת חלקיקים לכל אליפסואיד תלת-צירי. אם אורך זרוע אחת מוגדר שווה לאפס, זה יוצר צלב, אשר אליפסואיד המקביל הוא דיסק. חלקיקים עשויים דקנשק תופס חלק קטן המנפח המוצק של עמיתיהם אליפסואידי המוצקים שלהם. כתוצאה מכך, הם משקעים לאט יותר, מה שהופכים אותם קלים יותר התאמת צפיפות. זה מאפשר הלימוד של חלקיקים הרבה יותר גדולים מאשר הוא נוח עם חלקיקים אליפסואידי מוצקים. בנוסף, ניתן לבצע הדמיה בריכוזי חלקיקים גבוהים משמעותי, שכן החלקיקים לחסום חלק קטן של האור מחלקיקים אחרים. במאמר זה, שיטות ייצור ומעקב של חלקיקים מודפסים 3D מתועדים. כלים למעקב אחרים תנועת translational של חלקיקים כדוריים מעמדות חלקיקים כפי שניתן לראות על ידי מספר רב של מצלמות פותחו על ידי מספר קבוצות 3,4. הפרסה et al. 5 מורחבת בגישה זו כדי לעקוב אחר מוטה באמצעות המיקום והכיוון של המוטות לראות מספר מצלמות. כאן, אנו מציגים שיטות בודה חלקיקים של מגוון רחב של צורות בשחזור אוריינטציות 3D שלהם. זה מציע האפשרות דואר להאריך מעקב 3D של חלקיקים עם צורות מורכבות למגוון רחב של יישומים חדשים. יש טכניקה זו יש פוטנציאל גדול להמשך פיתוח בגלל המגוון הרחב של צורות חלקיקים שניתן תוכנן. יש רבים מן הצורות יישומים ישירים בתזרים הסביבה, שבו פלנקטון, זרעים, גבישי קרח מגיעים במגוון עצום של צורות. חיבורים בין סיבובי חלקיקים ומאפיינים בקנה מידה קטנה יסוד של זרימה טורבולנטית 6 מראים כי מחקר של סיבובים של חלקיקים אלה מספק דרכים חדשות להסתכל על תהליך המפל הסוער.

<table><tbody><tr><td>Condor Nd:YAG 50 W laser</td><td>Quantronics</td><td>532-30-M</td><td></td></tr><tr><td>High speed camera</td><td>Basler</td><td>A504k</td><td></td></tr><tr><td>High speed camera</td><td>Mikrotron</td><td>EoSens Mc1362</td><td></td></tr><tr><td>Rhodamine-B</td><td>ScienceLab.com</td><td>SLR1465</td><td></td></tr><tr><td>Sodium Hydroxide</td><td>Macron</td><td>7708</td><td>Pellets.</td></tr><tr><td>500 Connex 3D printer</td><td>Objet</td><td></td><td>Used to make smaller particles. Particles ordered from RP+M (rapid prototyping plus manufacturing).</td></tr><tr><td>VeroClear</td><td>Stratasys</td><td>RGD810</td><td>Objet build material.</td></tr><tr><td>Clear Form 1 Photopolymer Resin</td><td>Formlabs</td><td></td><td></td></tr><tr><td>Cylindrical and spherical lenses</td><td></td><td></td><td></td></tr><tr><td>200 mm macro camera lenses</td><td></td><td></td><td>F-mount.</td></tr><tr><td>Ultrasonic bath</td><td>Sonicator</td><td></td><td></td></tr><tr><td>Calcium Chloride</td><td>Spectrum Chemical Mfg. Corp.</td><td>CAS 10043-52-2</td><td>Pellets.</td></tr><tr><td>LabVIEW System Design Software</td><td>National Instruments</td><td></td><td>Used to trigger cameras, control grid, and trigger laser.</td></tr><tr><td>XCAP Software</td><td>EPIX</td><td></td><td>Used with LabVIEW to trigger cameras.</td></tr><tr><td>MATLAB</td><td>Mathworks</td><td></td><td>Used for all image and data analysis. Programs for extracting 3D orientations from multiple images are included with this publication.</td></tr><tr><td>OpenPTV: Open Source Particle Tracking Velocimetry</td><td>OpenPTV Consortium</td><td></td><td></td></tr><tr><td>ParaView</td><td>Kitware</td><td></td><td></td></tr><tr><td>AutoCAD</td><td>AutoDesk</td><td></td><td>Used to design all particles. Screenshots of particle designs are all of AutoCAD.</td></tr><tr><td>Mesh with 0.040 x 0.053 inch holes</td><td>Industrial Netting</td><td>XN5170&amp;ndash;43.5</td><td></td></tr><tr><td>Camera filters</td><td>Schneider Optics</td><td>B+W 040M</td><td></td></tr></tbody></table>

methods for measuring the orientation and rotation rate of 3d-printed particles in turbulence

שיטות ניסיוניות מוצגות למדידת התנועה הסיבובית ו translational של חלקיקי איזוטרופי ב זורם נוזל סוער. טכנולוגיית הדפסת 3D משמשת לפברק חלקיקים בזרועות רזות מחוברות במרכז משותף. צורות בחנו הן צלבים (שתי מוטות מאונכות), שקעים (שלוש מוטות מאונכות), שלשות (שלוש מוטות בסימטריה מישוריים משולשת), ו tetrads (ארבע זרועות בסימטרית tetrahedral). שיטות להפקה בסדר גודל של 10,000 חלקיקים צבועים fluorescently מתוארות. מדידות זמן נפתר האורינטציה שלהם וקצב סיבוב מוצק גוף מתקבלות ארבעה סרטוני מסונכרנים של התנועה שלהם זרימה טורבולנטית בין נדנוד רשתות עם R λ = 91. בשגרת מספר יחסית נמוכה ריינולדס זה, חלקיקי advected הם קטנים מספיק כי הם משוערים חלקיקים נותבו אליפסואידי. אנו מציגים תוצאות של מסלולי 3D זמן נפתר של מיקום וכיוון של החלקיקים כמוגם מדידות של שיעורי הסיבוב שלהם.

איור 3 א מציג תמונה של הטטרדה מאחד המצלמות שלנו מעל מגרש של זוויות אוילר המתקבלת קטע מסלולו (איור 3c). 3 ב איור, התוצאות של האלגוריתם למציאת-אוריינטציה, המתואר בפרוטוקול 5 - 5.3, הן על גבי התמונה הטטרדה. הזרועות של הטטרדה באי...

Watch this Scientific Journal Video about Methods for Measuring the Orientation and Rotation Rate of 3D-printed Particles in Turbulence at JoVE.com

Methods for Measuring the Orientation and Rotation Rate of 3D-printed Particles in Turbulence

We use 3D printing to fabricate anisotropic particles in the shapes of jacks, crosses, tetrads, and triads, whose alignments and rotations in turbulent fluid flow can be measured from multiple simultaneous video images.

שיטות למדידת התמצאות סיבוב שעיר 3D מודפסות חלקיקי Turbulence

Experimental methods are presented for measuring the rotational and translational motion of anisotropic particles in turbulent fluid flows. 3D printing ...

methods-for-measuring-orientation-rotation-rate-3d-printed-particles
